Defining Access Control Lists 93
To create a new IP-based ACL:
1 Select Create ACL.
2 Enter the name of the new ACL.
3 Click . The new ACL is created, and the device is updated.
To define a new IP-based ACL rule:
1 Select Select ACL.
2 Select the ACL from the list.
3 Define the fields for the new ACL rule.
4 Click . The new IP-based ACL rule settings are configured,
and the device is updated.
Removing IP Based
ACLs
The IP Based ACL Remove Page allows the user to remove IP-based ACLs
or IP-based ACL rules.
Monitor users have no access to this page.
Click Device > ACL > IP Based ACL > Remove. The IP Based ACL
Remove Page opens:

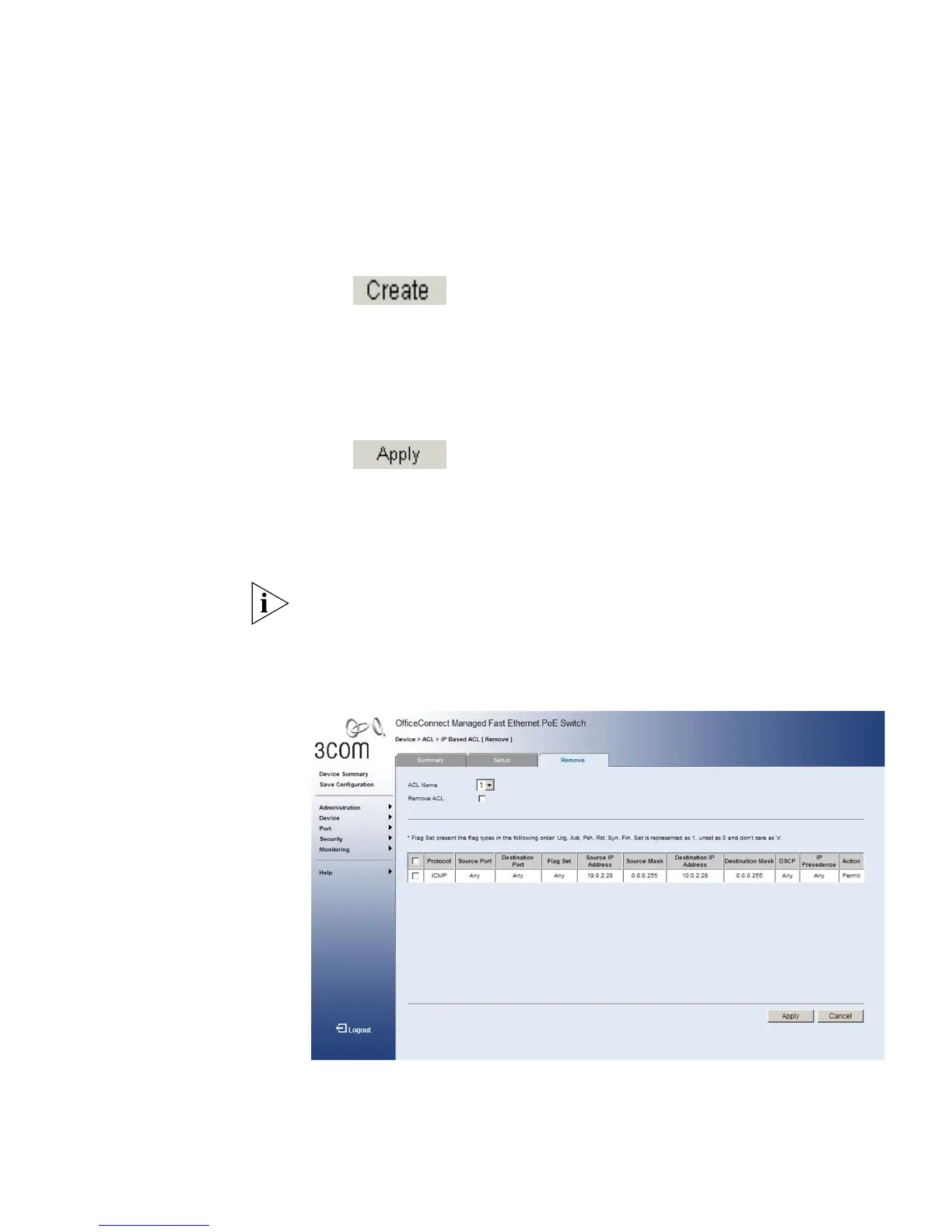

Figure 47 IP Based ACL Remove Page
