Type 27 Wheel Mounting Hardware and Usage
Type 27 Grinding Wheels are also known as Depressed Center Grinding Wheels. They have a dish shaped center to allow the lower mounting hardware or ange
to be recessed into the wheel. This allows the wheel to be used in a nearly at orientation when needed.
Models 28403 and 28413 have 3/8”-24 threads per inch spindles. They can use Type 27 Grinding Wheels with 3/8” center holes (CH).
Models 28405 and 28414 have 5/8”-11 threads per inch spindles and can use wheels with either 16 mm or 7/8” center holes (CH).
Models 28403 and 28413 can accomodate an adapter to change the spindle to a 5/8”-11 threads per inch spindle to allow the use of wheels with either 16 mm
or 7/8” center holes (CH).
Refer to ANSI B7.1-2000 Safety Requirements for Use, Care and Protection of Abrasive Wheels and ISO/EN 12413 Safety Requirements for Bonded Abrasive
Products for proper abrasive wheel applications.

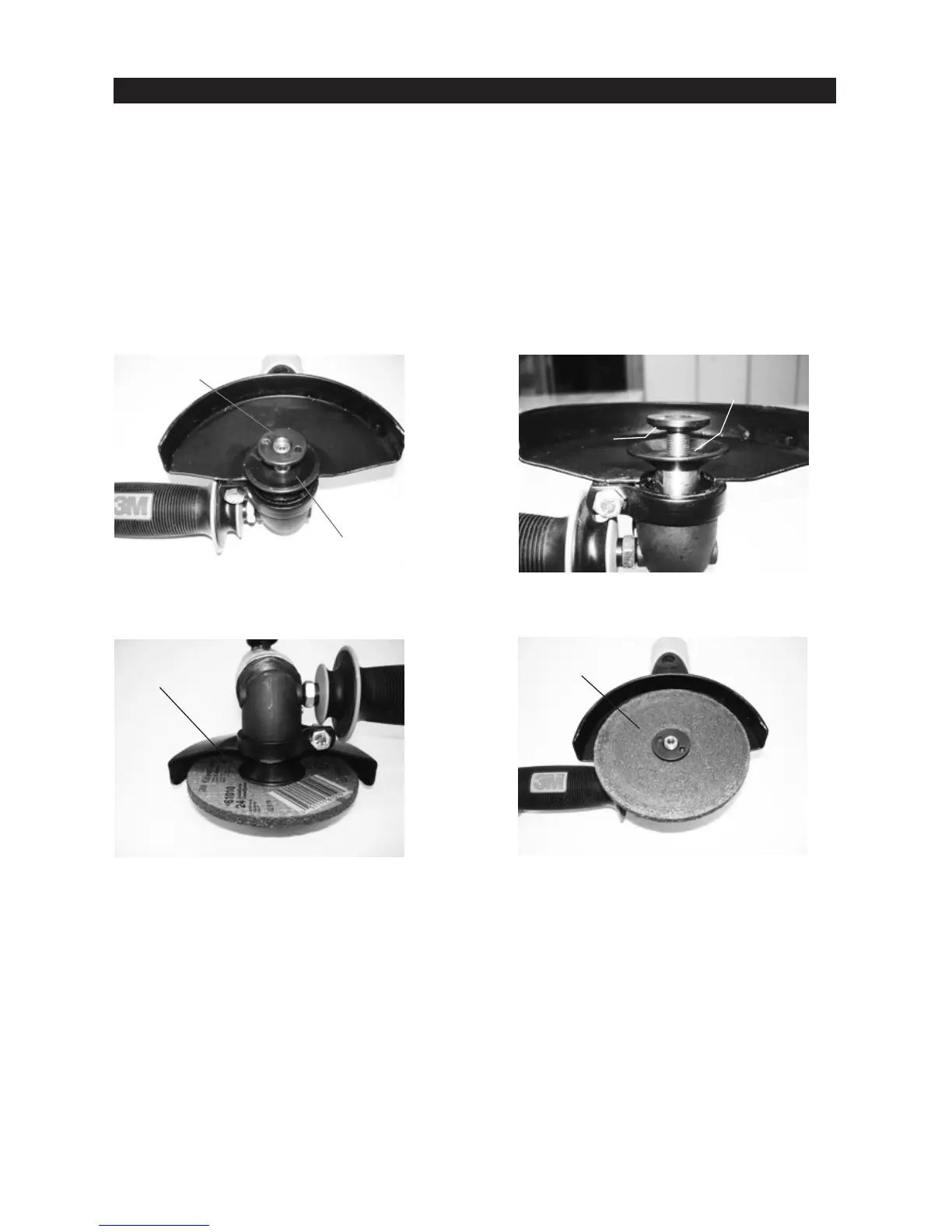

MOUNTING 3/8” CENTER HOLE TYPE 27 WHEELS
Figure 1
Lower Flange for 3/8” CH
Type 27 Wheels
Lower Flange: NOTE:
Curved surface goes into
the wheel’s center
Upper Flange for 3/8” CH
Type 27 Wheels
Upper Flange:
NOTE: Wheel’s curved backside
goes into the ange’s center
Type 27 Wheel with 3/8”
Center Hole, properly
mated to Upper Flange
Lower Flange for 3/8” CH
Type 27 Wheel properly
mounted
Figure 2
Figure 3a Figure 3b
