3M TYPE-27 - Page 4

3 4
18
19
20
21
22
23
24
25
26
27
38
39
40
41
42
43
45
44
46
13
12
47
48
28
29
30
31
32
33
34
35
36
37
1
2
3
4
5
6
7
8
9
10
11
14
15
16
17
5
LUBRICATE
FUCHS RENOLIT
A X S2 OR EQUAL
USE 3M TL62
THREADLOCKER
TO
20-25 FT-LB
TO
120 IN-LB
USE 3M TL62
THREADLOCKER
TO
90-130 IN-LB
INSTALL WITH
BEVEL FACING OUT
USE 3M TL62
THREADLOCKER
TO
15-20 FT-LB

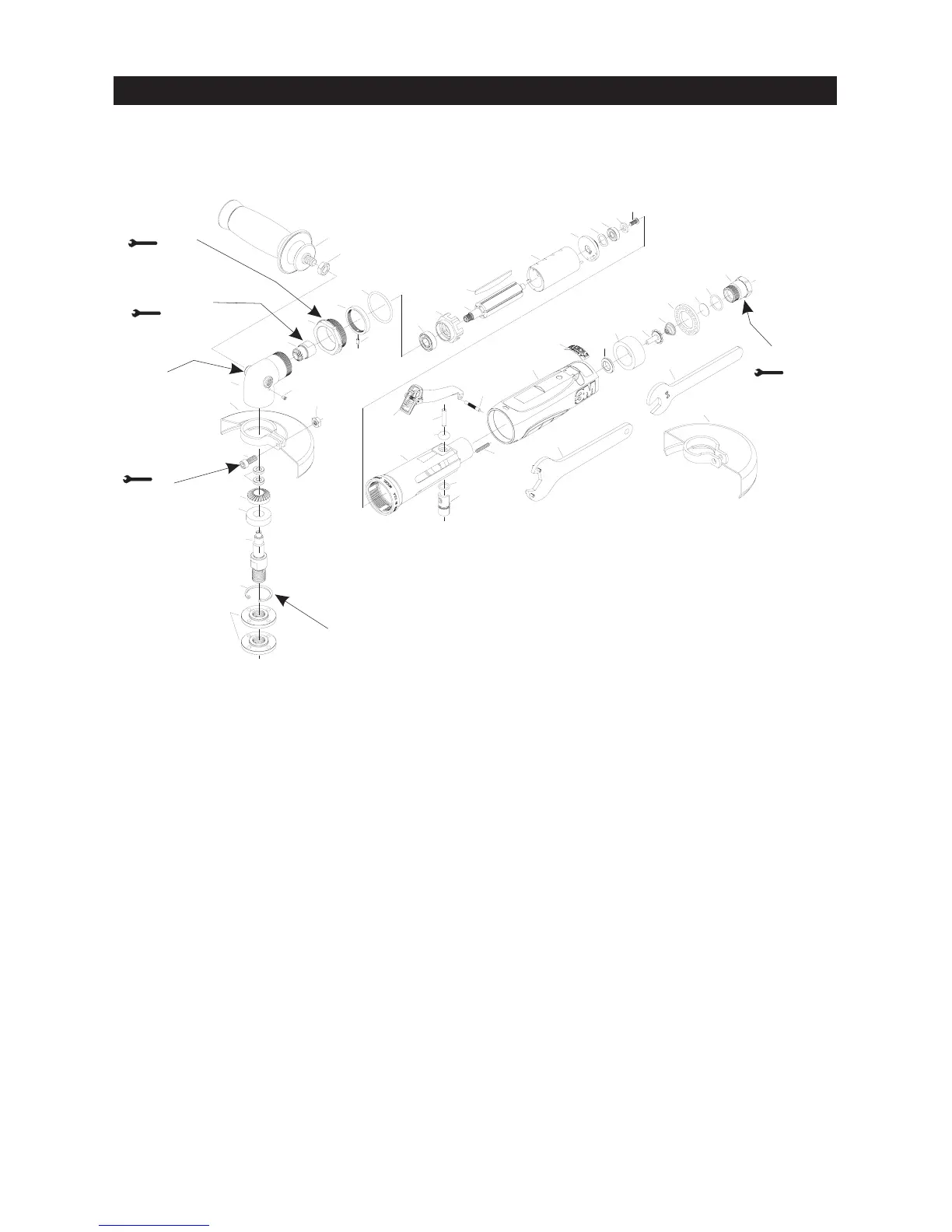

Parts Page
PARTS LIST FOR PN 28405, 12000 RPM, 4 1/2” GRINDER, TYPE-27
Fig 3M PN Description Qty
1 06589 Wheel Arbor 2
2 55088 Retaining Ring 1
3 55112 Output Spindle 5/8-11 Thread 1
4 55078 Ball Bearing 1
5 55113 Gear Set 1
6 55114 Ball Bearing
.500" x .25" x .125" (2)
2
7 55076 Socket Head Hex Screw, 1/4-20 1
8 55083 Hex Nut, 1/4-20 1
9 55108 4-1/2” Type 27 Guard 1
10 55111 Angle Head 1
11 06523 Grease Fitting 1
12 06503 Jam Nut 1
13 28402 Side Handle 3/8-16 EXT Thread,
3M PN28402
1
14 06653 Angle Head Clamp Nut 1
15 06655 Lock Ring 1
16 06520 Pin, 1/8" x 1/4" 1
17 06609 O-Ring 1
18 06510 Ball Bearing
3/8" x 7/8" x 9/32"
1
19 06639 Front End Plate 1
20 06562 Rotor 1
21 06643 Vane, Set of 5 1
22 06563 Cylinder 1
23 06560 Rear End Plate 1
24 06527 Wave Washer
.440" x .618" x .008"
1
Fig 3M PN Description Qty
25 06508 Ball Bearing 1
26 06567 Washer .251" x .468" x .063" 1
27 06568 Screw #8-32 x 3/8 But Hd Cap 1
28 06638 Housing 1
29 06642 Lever 1
30 06558 Torr Pin, 3/16" x 7/8" 1
31 06543 O-Ring 1
32 06511 O-Ring 1
33 06556 Regulator 1
34 06501 Screw, 6-32 x 3/4 Set Soc Hex 1
35 06559 Groove Pin, 1/8" x 7/8" Type E 1
36 06598 Housing Cover 1
37 06566 Warning Label 1
38 06552 Throttle Valve Seat 1
39 06557 Mufer 1
40 06553 Throttle Valve 1
41 06554 Taper Spring 1
42 55084 Exaust Deector 1
43 06555 Screen 1
44 06608 O-Ring, 1/16" x 5/8" x 3/4" 1
45 55107 Bushing, 3/8” NPT 1
46 55115 Spanner Wrench 1
47 06524 5/8" Wrench 1
48 55106 4.5" Guard (at back) OPT
