a. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
3. This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est
conforme à la norme NMB-003 du Canada
b. This device is UL and ULC E467564 (Safety) certified.
c. This device complies with CE - EMC Directive 2014/53/EU – Class A, ROHS Directive 2011/65/EU with Addendum
2015/863/EU, WEEE Regulation 2012/19/EU. Declaration of Conformity is available upon request.
d. WEEE - Do not discard this product along with other household waste, it must be collected and treated separately.
GETTING STARTED | V250 NVR Rev IV| pg.2

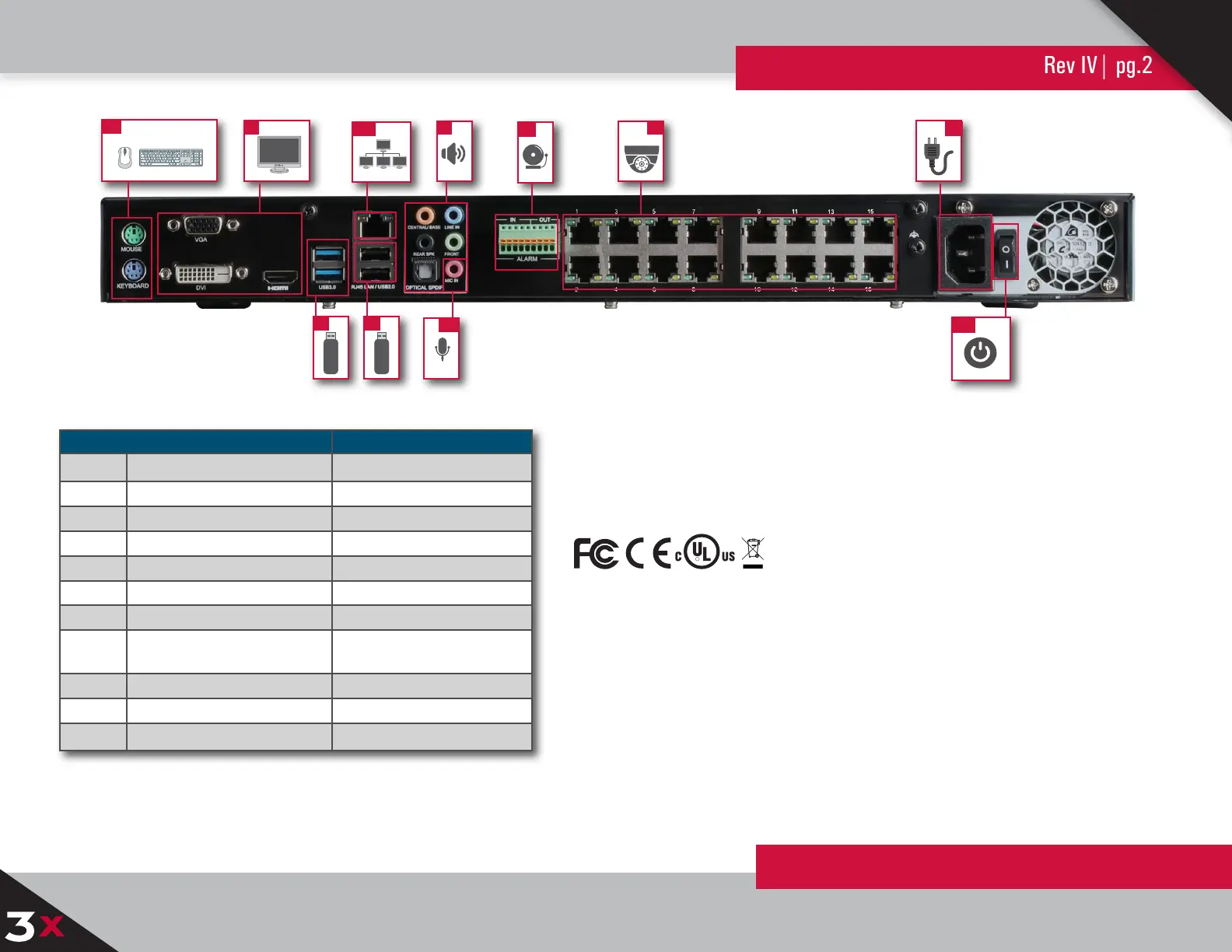

PART NAME FUNCTION
1 2x PS/2 Ports Connect Keyboard and Mouse
2 HDMI / VGA / DVI Connect to Monitor
3 Corporate LAN Port Connect to Site LAN
4 Audio Out (Stereo, Optical SPDIF) Connect to Speakers
5 Alarm I/O Connect to Terminal Block
6 Internal PoE Switch (8, 16 port) Connect to IP Cameras
7 Power Supply Provide Power to the Appliance
8 USB 3.0 x2 Connect External Storage for
Export
9 USB 2.0 x2 Connect for External Peripherals
10 Mic In Connect to Microphone
11 Power On / Off Switch Turn Appliance On / Off
NOTE:
A USB drive containing the 3xLOGIC SupportEnvironment is connected within the chassis. To access the
Support Environment, simply boot to the drive.
The Support Environment allows for Windows images to be taken or applied as well as providing access
to multiple diagnostic tools.
2
1
11
10
8
7
4
6
5
3
NOTE: V250-16 is shown above.
9
