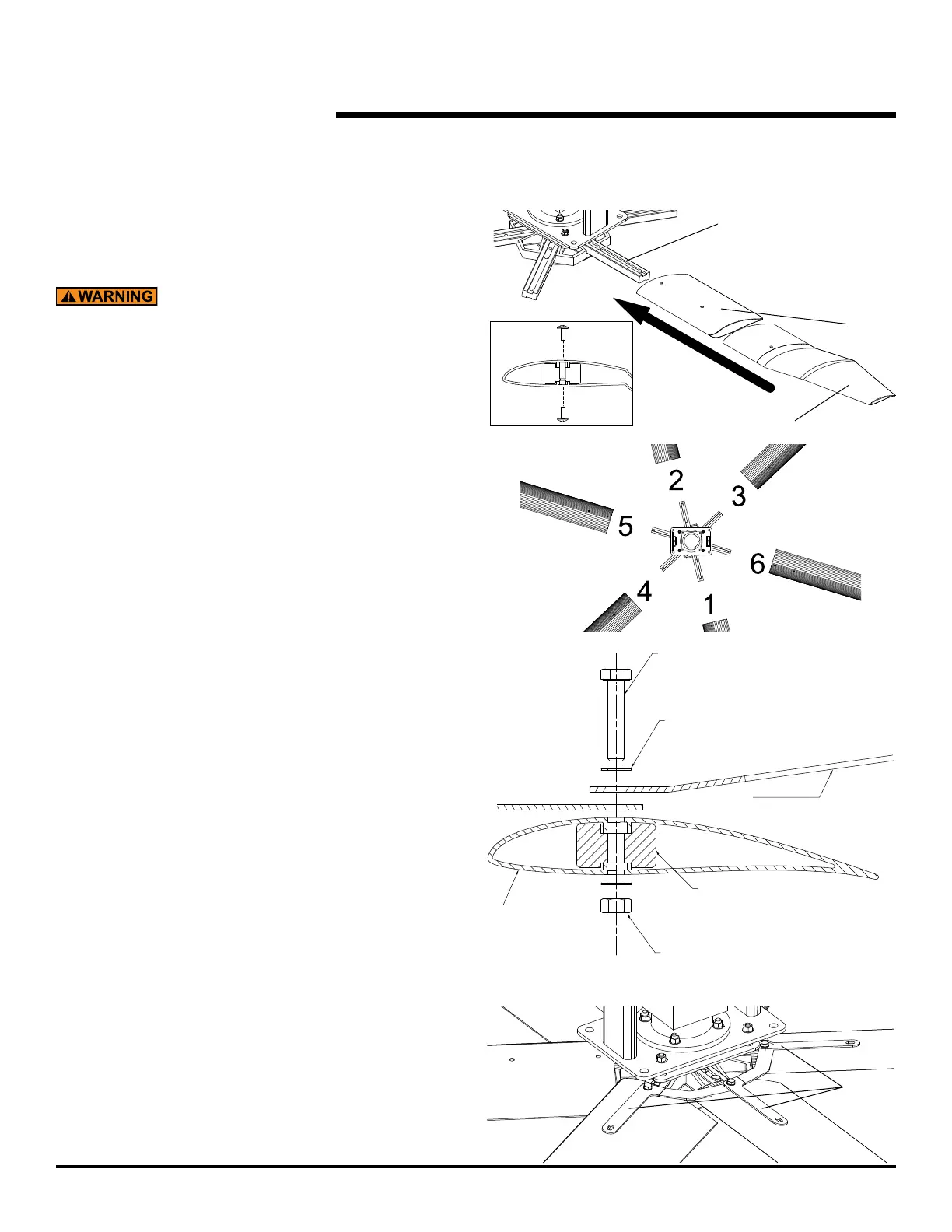

Bolt,
5/16 - 18 UNC x 2, GR 5
(part of 6013288 fastener kit)
2X washer, 5/16
(part of 6013288 fastener kit)
Strut - 60-40001
(on replacement, ensure
proper orientation)
Nut, 5/16 - 18 UNC
(part of 6013288 fastener kit)
Blade
Link
(part of 6013287 link kit)
Failure to install the blade safety interlocks could result
in death or serious injury.
While supporting
the end of the blade so that it is perfectly horizontal,
torque the nuts on each blade. Torque to 16-18 ft-lbs.
DO NOT OVERTIGHTEN. DO NOT USE IMPACT OR
HAMMER DRIVE. DAMAGE MAY OCCUR. The safety
link will bend slightly as the nuts are tightened to
conform to the blade surface.
Blade strut
Blade
Winglet
Winglet
fasteners
6010843
6010844
Safety
links
To Next Page
