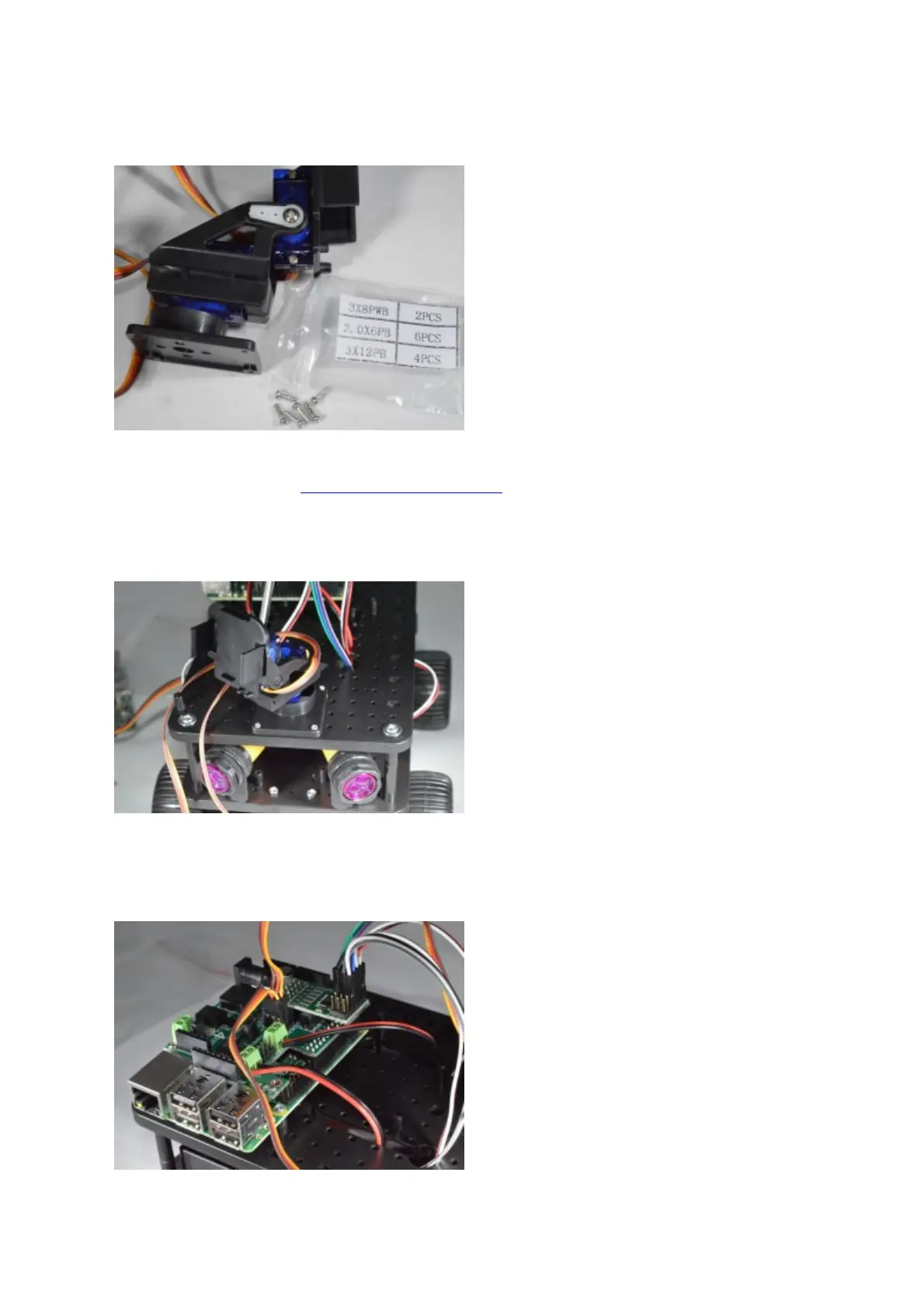

4. Connecting the Pan/Tilt Assembly
This is now supplied fully assembled with the Initio Ultimate kit. If you have an unassembled
one, then please visit the assembly instructions here (opens in new window)
Take 4 of the 2.0x6PB screws (these are the smallest ones in the packet and there are 6 of
them)
Screw the base of the pan/tilt assembly to the upper plate in the position shown
Rotate the pan/tilt carefully left and right to access the screw holes
To Next Page
