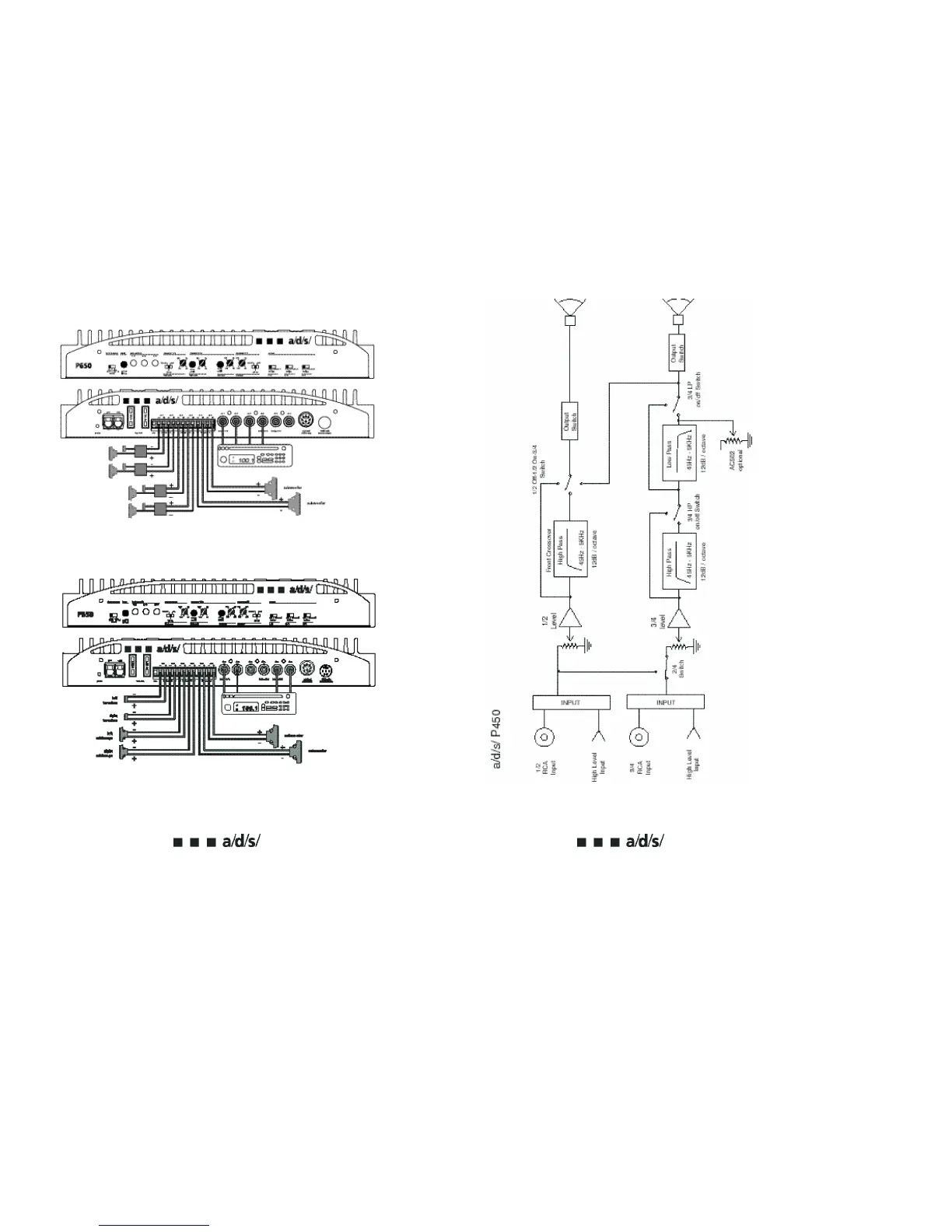

System 1 – P650 used in 6-channel mode. Channels 1/2 are high-passed for front speakers. Chan-
nels 3/4 are high-passed for rear speakers. Channels 5/6 are low-passed for subwoofers. Although
shown with 4-channels of input, the source unit can be either 2- or 4-channel.
System 2 – P650 used in 6-channel mode. Channels 1/2 are high-passed for front speakers. Chan-
nels 3/4 are high-passed for midrange speakers, and channels 5/6 are low-passed for subwoofers.
