A.O. Smith 101 Series User Manual

56

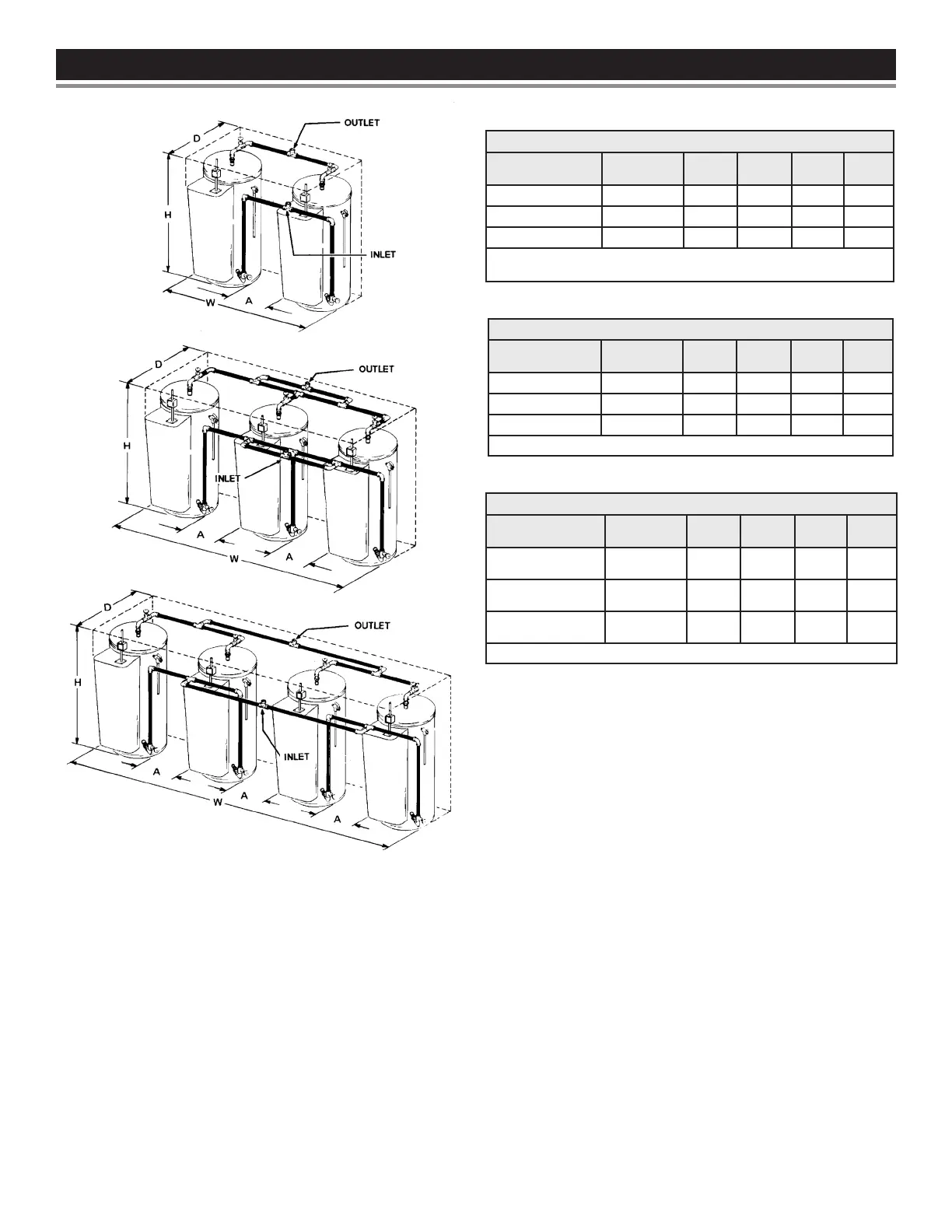

MANIFOLD KITSMANIFOLD KITS
Table 19. Manifold Kits with Two Heaters
Tank Capacity
(Gallons)
Part
Number H W D A
52 (189.3) 100109231 66 1/4 56 3/4 27 1/4 13 1/4
80 (302.8) 100109231 70 1/2 60 1/4 31 1/4 9 3/4
120 (450.5) 100109231 73 1/4 64 1/2 35 3/4 5 1/2
Inlet and outlet size - 1 1/2
All dimensions in inches.
Table 20. Manifold Kits with Three Heaters
Tank Capacity
(Gallons)
Part
Number H W D A
52 (189.3) 100109232 66 1/4 91 3/4 27 1/4 13 1/4
80 (302.8) 100109232 70 1/2 95 1/4 31 1/4 9 3/4
120 (450.5) 100109232 73 1/4 99 1/2 35 3/4 5 1/2
Inlet and outlet size - 2 1/2
Table 21. Manifold Kits with Four Heaters
Tank Capacity
(Gallons)
Part
Number H W D A
52 (189.3) 100109233 66 1/4
(1638)
126 3/4
(3219)
27 1/4
(692)
13 1/4
(337)
80 (302.8) 100109233 70 1/2
(1791)
130 1/4
(3308)
31 1/4
(794)
9 3/4
(248)
120 (450.5) 100109233 73 1/4
(1861)
134 1/2
(3416)
35 3/4
(908)
5 1/2
(140)
Inlet and outlet size - 2 1/2
Printed on 5/6/2022 7:17 AM CT
