A.O. Smith 102 Series User Manual

21
Item Description DEL-6 DEL-10 DEL-15 DEL-20
Series 102 Series 102 Series 102 Series 102
1A ....... Anode, Alum... ................................... 9003942005 ......... 9003942005 ........ 9003942005 ....... 9003944005
1B ....... Anode, Mag. (SMR P72 and S19)...... 9001909005 ......... 9001909005 ........ 9001909005 ....... 9003721005
2 ........Collar, Pipe ..........................................9004610115 ......... 9004610115 .........9004610115 ....... 9004610115
3 ........Cover, Front ....................................... 9003900005 ......... 9003900005 ........ 9003900005 ....... 9003900005
4 ........ELEMENT, HEATING ................................... SEE ELEMENT CHART ON PAGE 23 ........................
5 ........Gasket, Element ................................. 9000308005 ......... 9000308005 ........ 9000308005 ....... 9000308005
6 ........Opening Insulation ..............................043307-000 ..........043307-000 .........043307-000 ....... 043307-000
7 ........*Instruction Manual ...............................322055-0 ..............322055-0 .............322055-0 ........... 322055-0
10 .......Personnel Protector ........................... 9003914015 ......... 9003914015 ........ 9003914015 ....... 9003914015
11 ........ Pipe Nipple ............................................. 194130 ................194130-3 .............194130-3 ........... 194130-3
12 .......Plate, Knockout ......................................43293-1 ................43293-1 ...............43293-1 ............. 43293-1
PLUG
15/16 .....Thermostat with High Limit Switch ..... 9006586015 ......... 9006586015 ........ 9006586015 ....... 9006586015
17 ....... Bracket, Thermostat ........................... 9003898015 ......... 9003898015 ........ 9003898015 ....... 9003898015
18 ....... Valve, Relief ....................................... 9003484005 ......... 9003741005 ........ 9003741005 ....... 9003741005
*Not Illustrated.
Standard Hardware Items May Be Purchased Locally. Underlined Parts Are Recommended For Emergency Replacement.

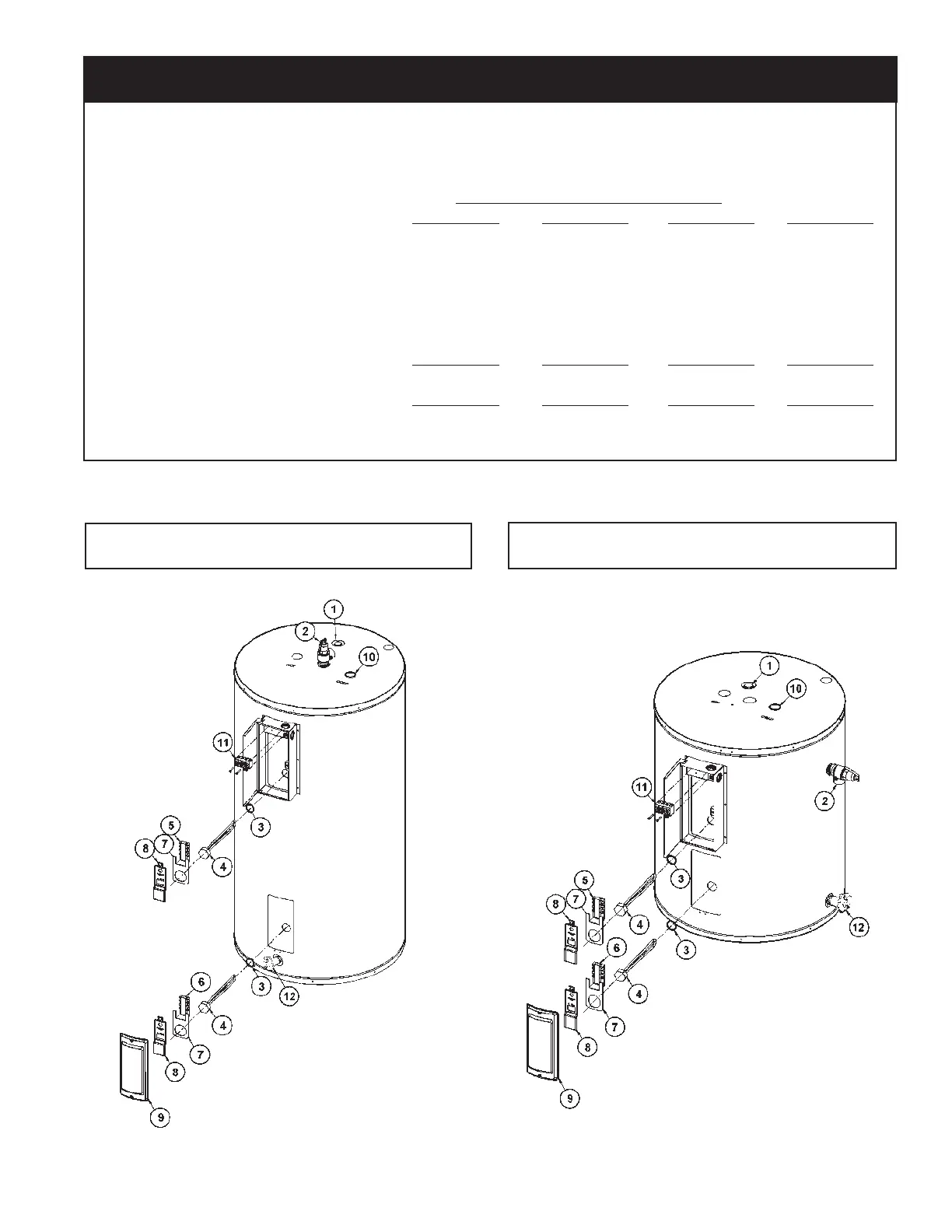

DEL 30, 40 & 50, Series 110
(Refer to Repair Parts Table on page 22)
DEN 30, 40, 52, 66, 80 & 120, Series 110
(Refer to Repair Parts Table on page 22)
FIGURE 11 FIGURE 12
