The ASM01670 MHGRV-X Controller is designed to control a
Modulating Hot Gas Reheat Valve to maintain a desired Supply
Air Temperature and Dehumidication setpoint. In addition, up to
seven ASM01687 Reheat Expansion Modules can be connected
to the Controller and to each other for additional Reheat Valve
Control. The MHGRV-X Controller directly connects to the
VCCX2 Controller or indirectly using an E-BUS Expansion
Board via an EBC E-BUS cable. See Figure 41, this page.
NOTE: If using multiple E-BUS Sensors or Modules, the
E-BUS Hub or Adapter Board may be required.
The following information will be passed between the MHGRV-X
controller and the VCCX2 Controller:
• Reheat Enable command
• Supply Air Temperature Setpoint
• The Reset Supply Air Temperature Setpoint
• The Supply Air Temperature Reset Signal
If the communication is interrupted between the MHGRV-X
Controller and the VCCX2 Controller, the MHGRV-X controller
will revert to stand-alone operation.
For more information, refer to the MHGRV-X Controller
Technical Guide.

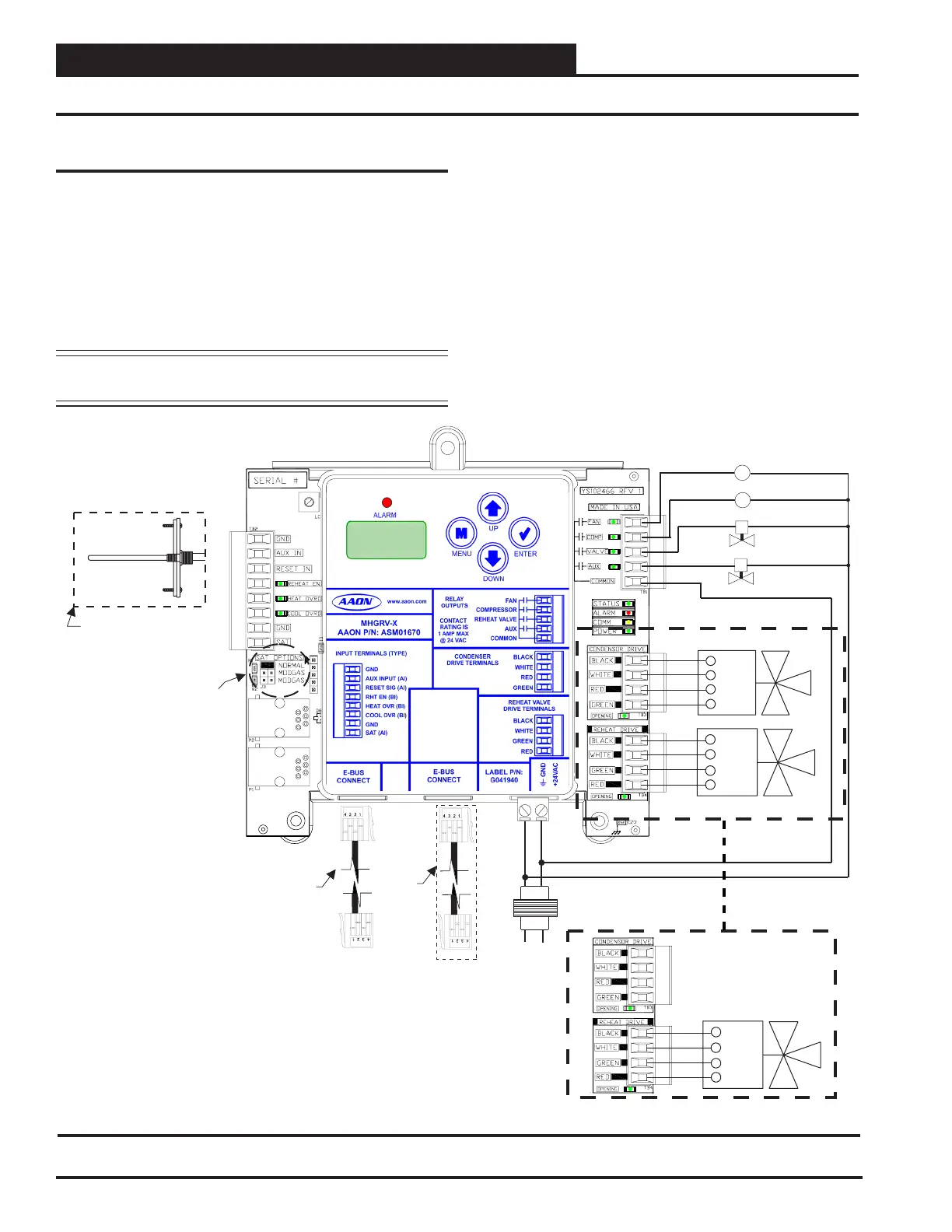

Figure 41: MHGRV-X Controller to VCCX2 Controller Wiring
WIRING
MHGRV-X Controller
To Next Page
