AAP QUICKFIT - ESL Connection Diagram and Wiring; Telephone Line Connection Options; Detector, Siren, and Keypad Wiring; Power and Battery Connection

E16LED KP
RESISTOR COLOUR CODES: 2K2 = = RED, RED, RED, GOLD. 4K7 =
= YELLOW, VIOLET, RED, GOLD.
8K2 = = GREY, RED, RED, GOLD.
SIREN
TAMP
STROBE
EOL
SS-1C SATELLITE SIREN

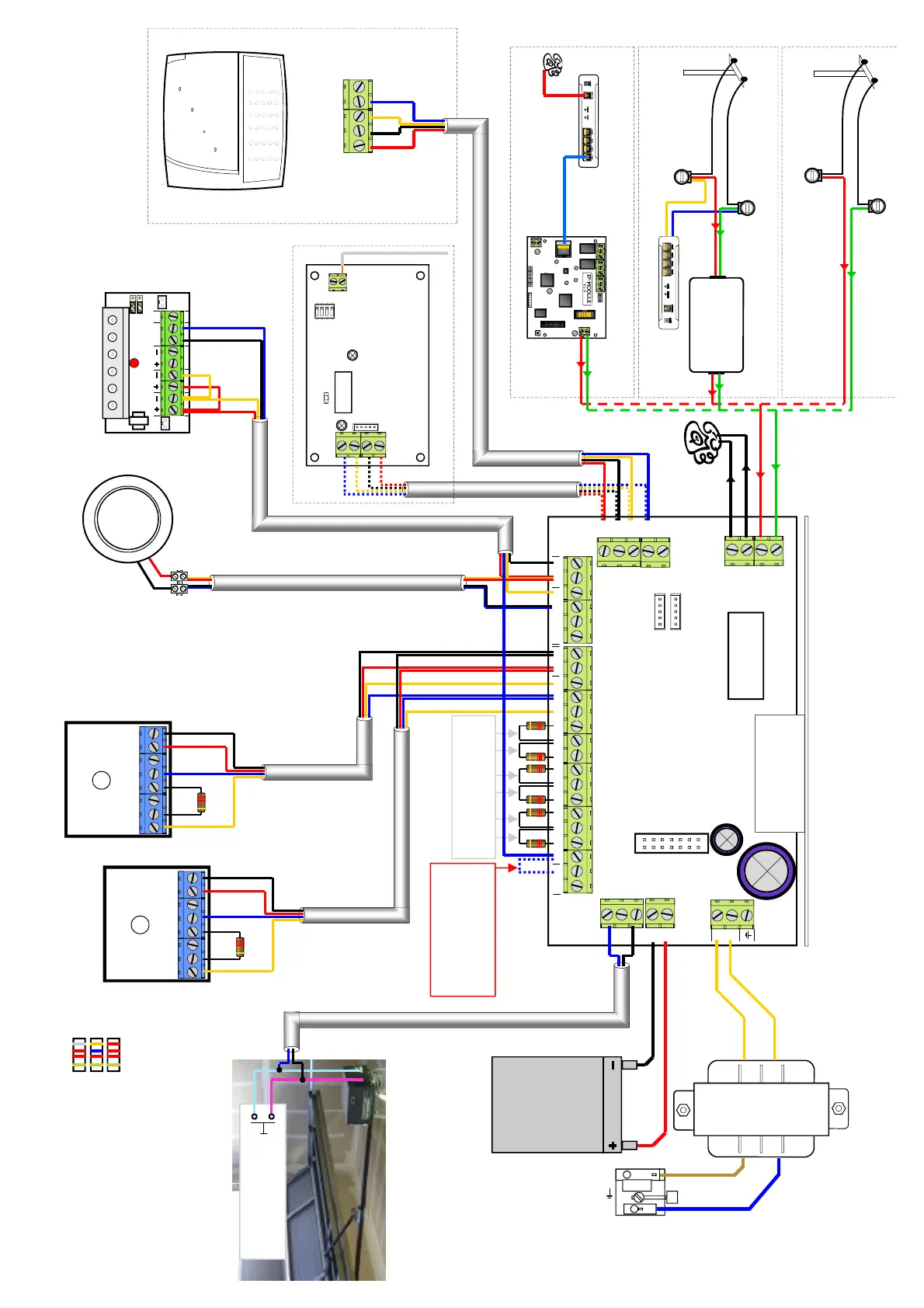

ESL CONNECTION DIAGRAM
230V
AC
Input
Lin
Dat Clk
Neg
Pos
Gnd 12V 1 C 2 3 C 4 5 C 6 7 C 8 Tmp Gnd 12V
Outputs
Gnd 12V 1 2 3 4
ESL
V908.12c
In Lin Out
AC AC Red Blk NO NC C
17V AC
Zone 1 Passive Infra-Red Detector
0v
12v
EOL TAMPER EOL RELAY
2k2
Zone 2 Passive Infra-Red Detector
0v
12v
EOL TAMPER EOL RELAY
2k2
HOUSE PHONES
PHONE LINE OFF THE STREET
SILICONE FILLED CRIMPS
TELEPHONE WIRING OPTION 1: Standard analogue
PIEZO
SIREN
P
N
Keypad
Terminal
ON
12 0V C D
ANT
RX-16 MF349
v090618
Optional Radio Receiver Connects here:
PIR 2
PIR 1
INTERNAL
EXTERNAL
KEYPAD 1
RECEIVER
PHONE LINE OFF THE STREET WITH ADSL ENABLED
ADSL MODEM
LINE
PHONE
DSL008
ADSL LINE FILTER
SILICONE FILLED
TELEPHONE WIRING OPTION 2: high speed internet (broadband) TELEPHONE WIRING OPTION 3: with Voice over IP System
Internet
VoIP phone lines will Not work
Internet Connection
IP-MODULE
Li
n
Da
t
Cl
12 Volt
SLA
Battery
Fit a 2K2 Resistor in
Unused Zone Terminals
GARAGE
DOOR 1
Garage Door 1
Garage Door Push to Operate Button
If you don’t wire the TMP
terminal to the External
Siren you must put a link
wire from TMP to GND
