Ascotel IntelliGate 2025/2045/2065
202 Identification Elements Part 2
Tab. 2.13: Example 2: Creating and presenting subscriber C’s CLIP number
3.7.2 Outgoing Calls to the Public Network
Call to the Public Network via a Gateway PINX
Subscriber C (340) on PINX 2 calls subscriber F on the public network via PINX 1.
PINX 1 has a DDI number for subscriber C (54).
The following CLIP characteristics are set in the trunk group configuration of
PINX 1:
• CLIP number = 50
• NPI = unknown
• TON = unknown

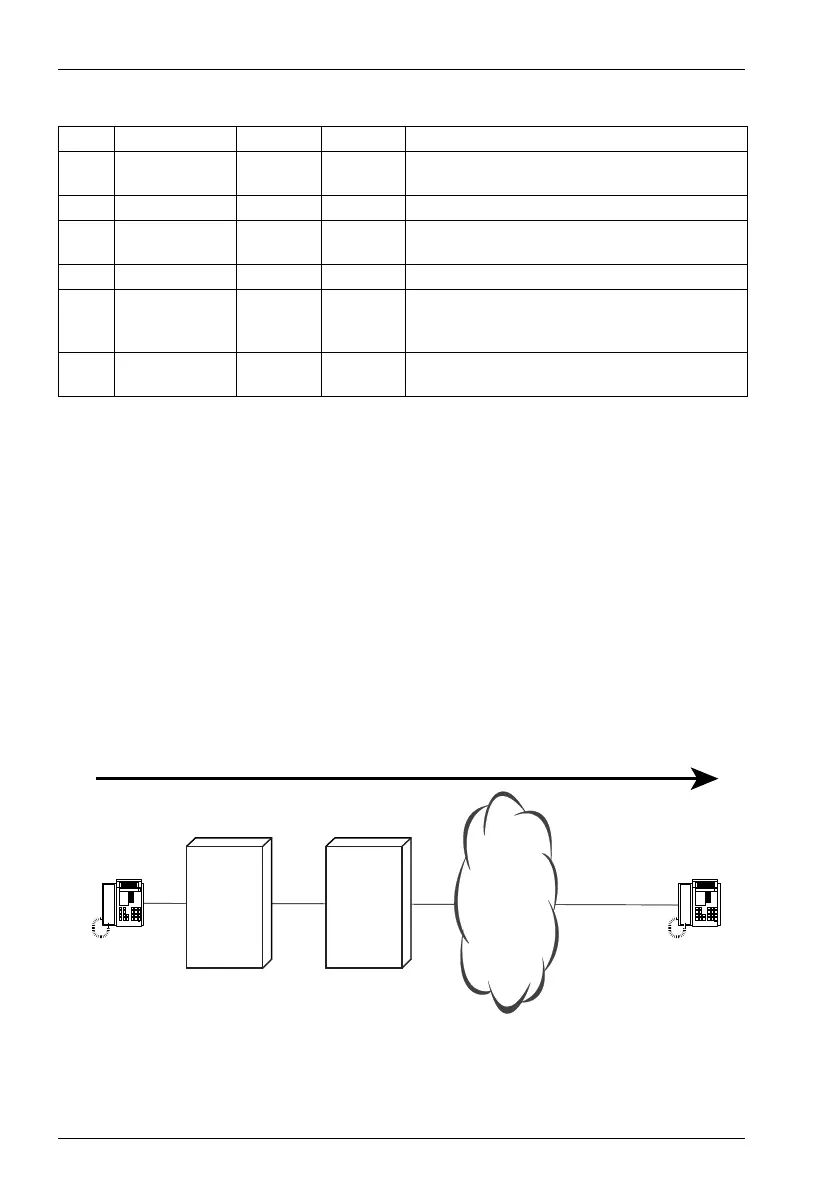

Fig. 2.22: Example 3: Subscriber C calls subscriber F in the public network (excerpt from Fig. 2.19)
Step CLIP number NPI TON Description
1 340 PNP level 0 Subscriber C → PINX 2
• There is no suitable DDI number.
2 50340 PNP level 1 PINX 2 → PINX 3
3 50340 PNP level 1 PINX 3
• There is no suitable DDI number.
4 50340 PNP level 1 PINX 3 → PINX 1
5 340 PNP level 0 PINX 1
• The system’s own regional prefix is deleted
• TON is adapted.
6 340 PINX 1 → Subscriber A
• Presentation on the system terminal
C
340
54
055 555 55 54
340
50340
022 222 22 22055 555 55 54
F
Source PINX Gateway PINX
haz0688aaena0
PINX 1PINX 2
