Ascotel IntelliGate 2025/2045/2065
Part 8 Generation Change 965

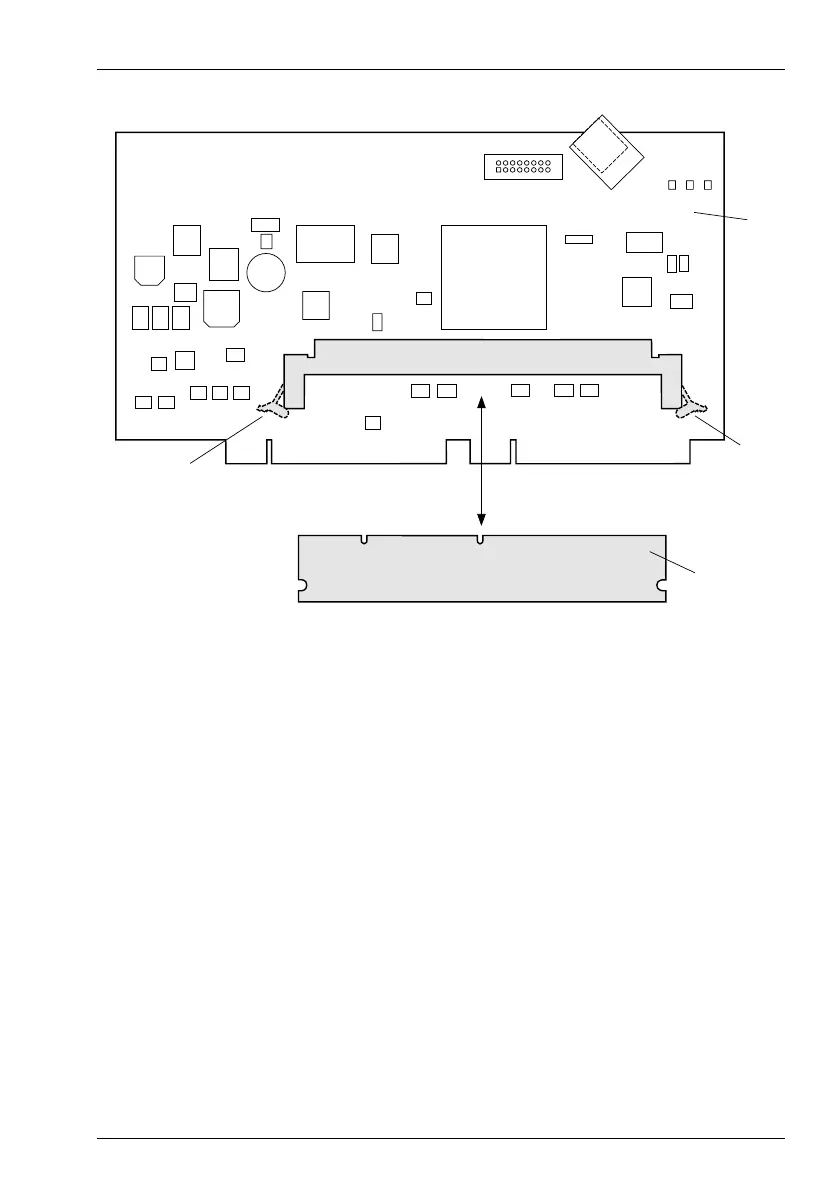

[1] Processor card
[2] Base locks
[3] RAM card
Fig. 8.4: RAM card on the processor card
2.6 Functions and Products No Longer Supported
The following functions and products are no longer supported compared with
version 4.6:
• 65 Volt AC ringing voltage
• 40 Volt DC (socket for powering external equipment)
• House key on the Operator Console
• Digital emergency circuit (replaced by UPS module)
• Analogue emergency relay
• Parallel interface for pager systems
• bcs cordless system
• CTO terminals (Crystal
1)
, Topaz, Opal)
[2]
[2]
[1]
[3]
haz1370aaxxa0
