Actual signals and parameters in the short view 45
AC500
MODBUS
This macro configures the drive communication and control
parameters.
21
9905 MOTOR NOM
VOLT
Defines the nominal motor voltage. Must be equal to the
value on the motor rating plate. The drive cannot supply the
motor with a voltage greater than the input power voltage.
Note that the output voltage is not limited by the nominal
motor voltage but increased linearly up to the value of the
input voltage.
WARNING! Never connect a motor to a drive which
is connected to power line with voltage level higher
than the rated motor voltage.
The stress on the motor insulations depends on the drive
supply voltage. This applies also when the motor voltage
rating is lower than the rating of the drive and the supply
voltage of the drive. The RMS voltage can be limited to
motor nominal voltage by setting the maximum frequency of
the drive (parameter 2008) to the motor nominal frequency.
200 V
units:
230 V
400 V
E units:
400 V
400 V
U units:
460 V
115…345 V
(200 V units)
200…600 V
(400 V E units)
230…690 V
(400 V U units)
Voltage.
Note: The stress on the motor insulations is always
dependent on the drive supply voltage. This also applies to
the case where the motor voltage rating is lower than the
rating of the drive and the supply of the drive.
1 = 1 V
9906 MOTOR NOM
CURR
Defines the nominal motor current. Must be equal to the
value on the motor rating plate.
I
2N
0.2…2.0 · I
2N
Current 1 = 0.1 A
9907 MOTOR NOM
FREQ
Defines the nominal motor frequency, ie the frequency at
which the output voltage equals the nominal motor voltage:
Field weakening point = Nom. frequency · Supply voltage /
Motor nom. voltage
E: 50.0 Hz
U: 60.0 Hz
10.0…500.0 Hz Frequency 1 = 0.1 Hz
9908 MOTOR NOM
SPEED
Defines the nominal motor speed. Must be equal to the
value on the motor rating plate.
Type
dependent
50…18000 rpm Speed 1 = 1 rpm
9909 MOTOR NOM
POWER
Defines the nominal motor power. Must equal the value on
the motor rating plate.
P
N
0.2…
3.0 · P
N
kW
Power 1 =
0.1 kW /
0.1 hp

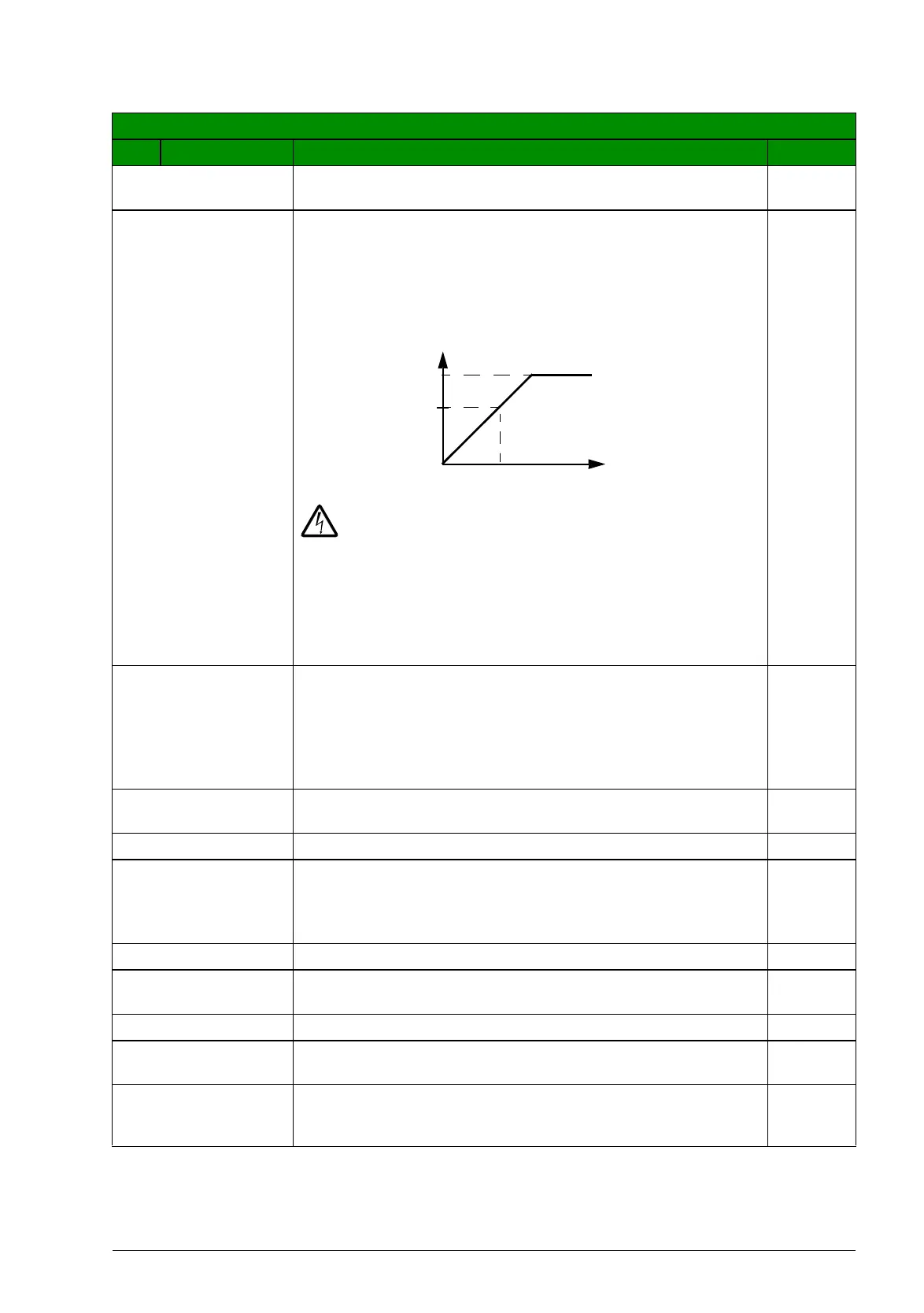

Parameters in the short parameter view
No. Name/Value Description Def/FbEq
Output voltage
Output frequency
Input voltage
9907
9905
