76 Installation instructions

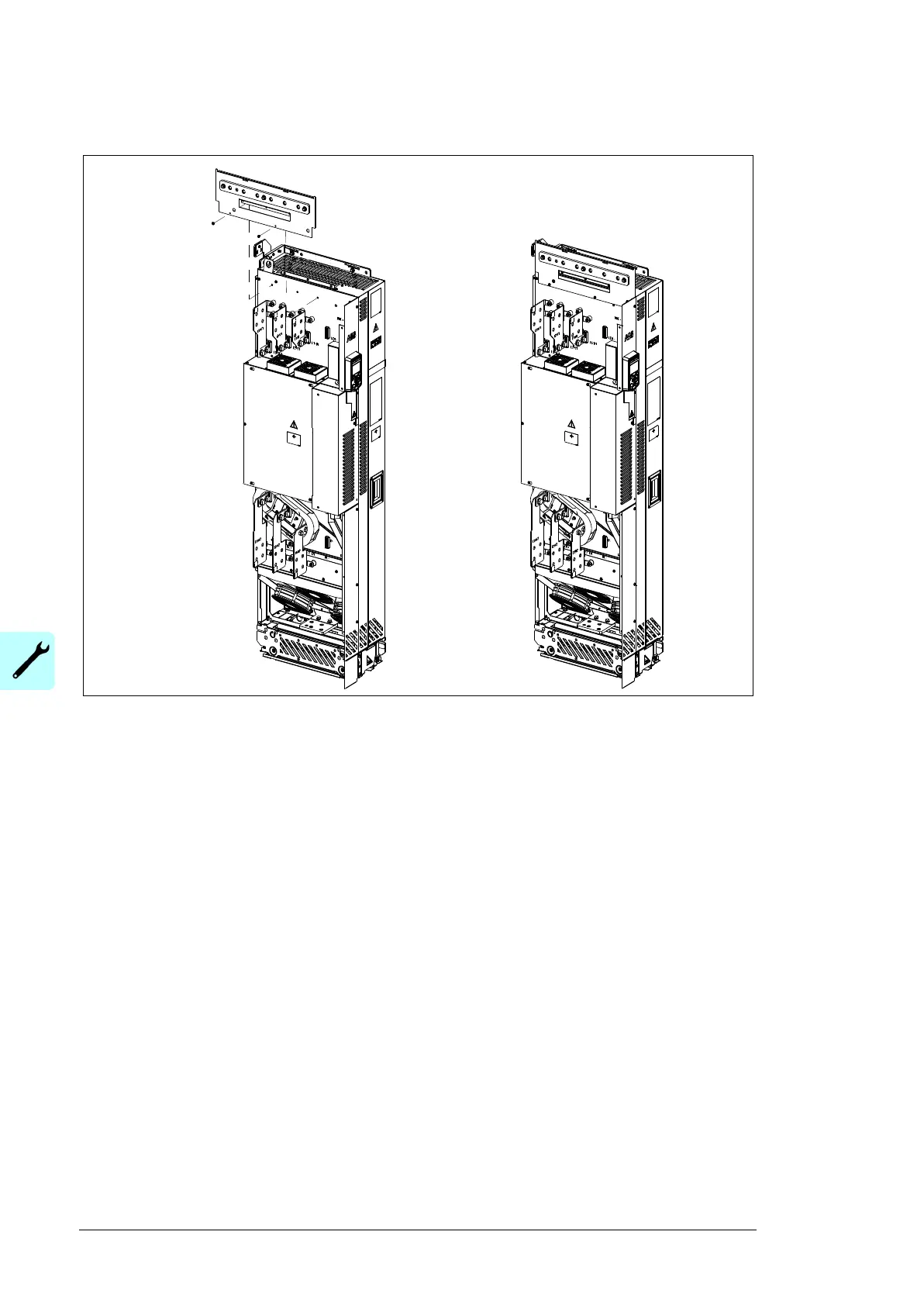

Install the metallic shroud with ground bar as shown below.
Drive module without output cable connection terminals (option
+0H371)
The power cables can be connected directly to the drive module input and output terminals
with cable lugs or by busbars.
Drive module without pedestal (option +0H354)
The drive module without pedestal can be mounted on a wall or a cabinet with four screws
through the fastening holes at the top and bottom of the module.
Make sure that the cabinet mounting plate and frame are strong enough to carry the
weight of the drive module. See section Dimensions, weights and free space requirements
on page 117.
Combi screw M4×8
Torx T20 2 N·m
3AXD50000017460
