Planning the cabinet installation
29
Preventing the recirculation of hot air
Outside the cabinet
Prevent hot air circulation outside the cabinet by leading the outcoming hot air away
from the area where the inlet air to the cabinet is taken. Possible solutions are listed
below:
• gratings that guide air flow at the air inlet and outlet
• air inlet and outlet at different sides of the cabinet
• cool air inlet in the lower part of the front door, and an extra exhaust fan on the
roof of the cabinet.
Inside the cabinet
Prevent hot air circulation inside the cabinet with e.g. leak-proof air baffles at the
positions shown in the diagrams in section Required free space around the drive
module for cooling. No gaskets are usually required.
Cubicle heaters
Use a cubicle heater if there is a risk of condensation in the cabinet. Although the
primary function of the heater is to keep the air dry, it may also be required for
heating at low temperatures. When placing the heater, follow the instructions
provided by its manufacturer.

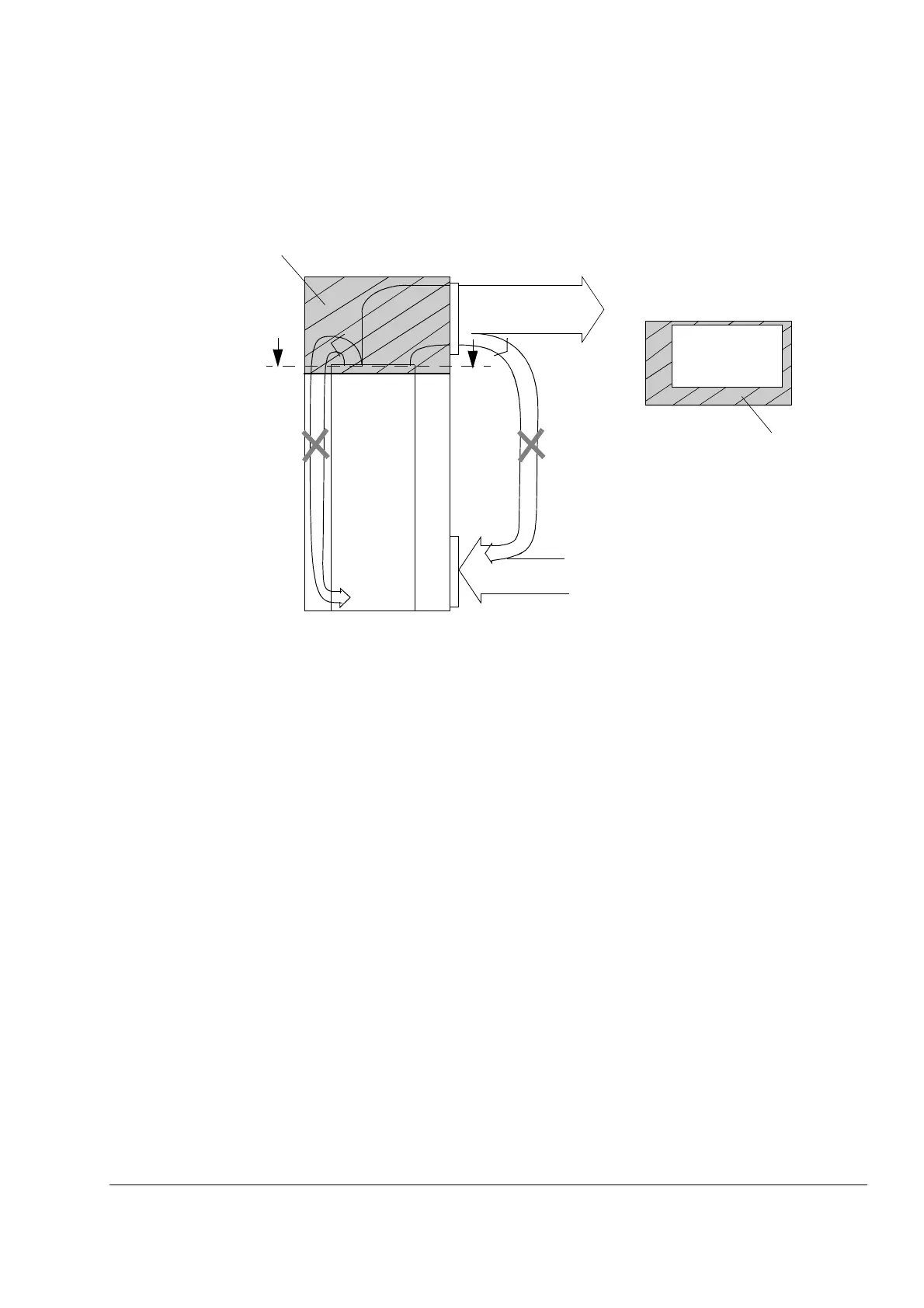

Air flow out
Air flow in max. 40°C (104 °F)
Converter
module
Converter
module
Horizontal air baffle
Vertical air baffle
Converter cubicle from aboveConverter cubicle from side
A
A
A - A
