AC busbars
In D8T, AC busbars provide connection from the module input to the common AC Flat-
PLS.
AC busbars to quick connector
The AC busbars to quick connector kit includes busbars for connecting the quick
connector to the common AC Flat-PLS.
Quick connector
The power input of the supply module is connected to the module through a quick
connector. Each supply module requires quick connectors.
For the dimension drawing, see section Quick connector on page 372.
Frame
size

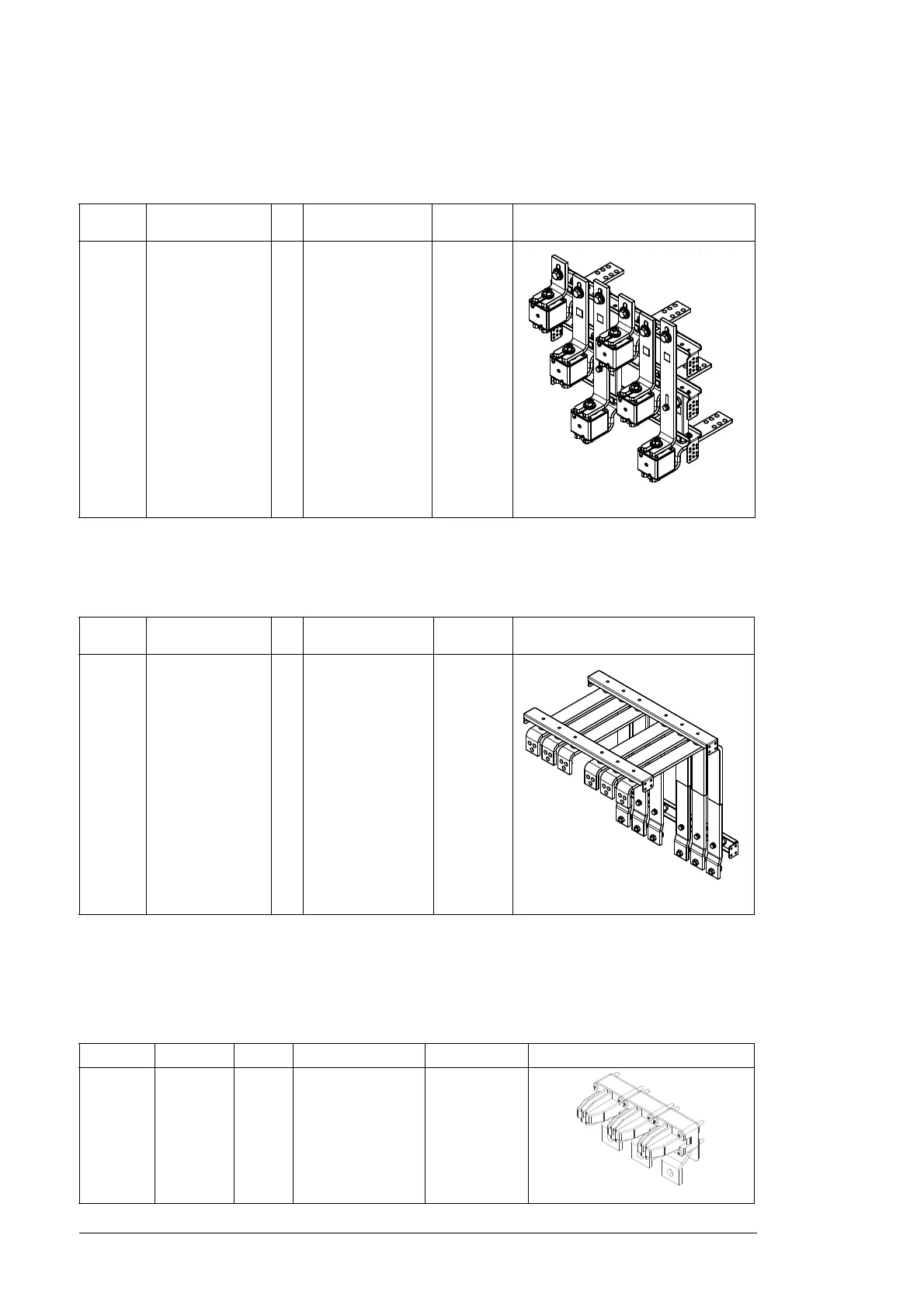

Enclosure Qty Ordering code Kit code Illustration
2×D8T 600 mm 1 3AXD50000002491 A-6-8-103
Instruction code: 3AXD50000001890
Frame
size
Enclosure Qty Ordering code Kit code Illustration
2×D8T 600 mm 1 3AXD50000002493 A-6-8-182
Instruction code: 3AXD50000001866
Frame size Enclosure Qty Ordering code Kit code Illustration
D8T 600 mm 1 per
module
3AUA0000119227 A-468-8-100
Instruction code: 3AUA0000118667
