88 CoriolisMaster FCB400, FCH400 CORIOLIS MASS FLOWMETER | OI/FCB400/FCH400-EN REV. E
… 9 Operation
… Parameter overview

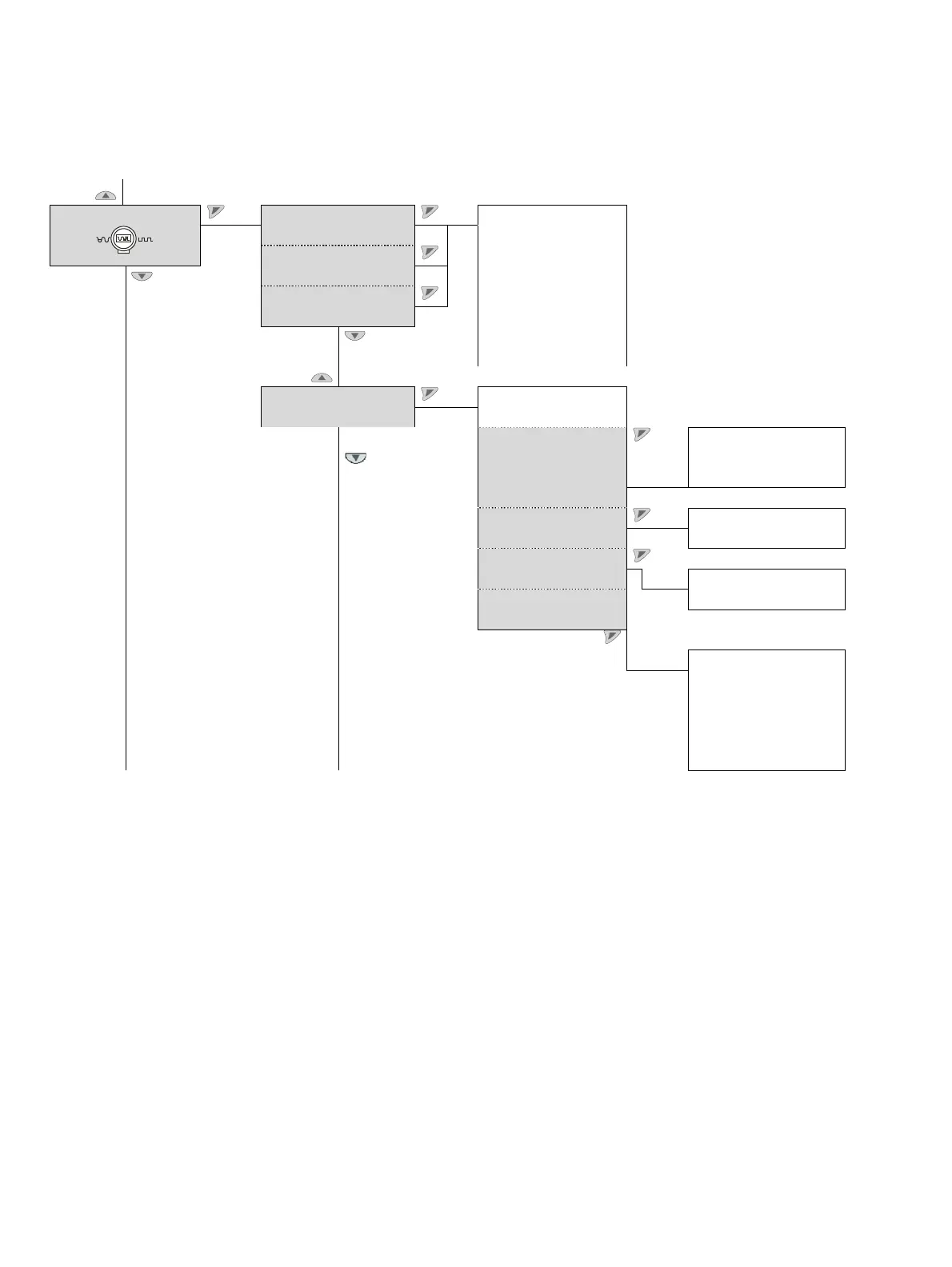

Input / Output ...Curr.Out 31 / 32 / Uco Loop Current Mode
Output Value
Iout Mode
Iout for Alarm
Low Alarm
High Alarm
Iout > 20,5mA
Iout < 3,8mA
...Curr.Out V1 / V2
...Curr.Out V3 / V4
...Dig.Out 41 / 42 Mode
Outp. Flow Direction
......Setup Pulse Output Output Value Pulse
Pulses per Unit
Pulse Width
......Setup Freq Output Output Value Freq.
Upper Frequency
...Setup Logic Output
Logic Output Action
...Alarm Config Active Mode
General Alarm
Qm Massflow Max
Qm Massflow Min
Density Min
Sensor Signal Min
Driver Output Max
