ABB CP Series User Manual

41-222.2J Type CP Reverse Phase Relay
8

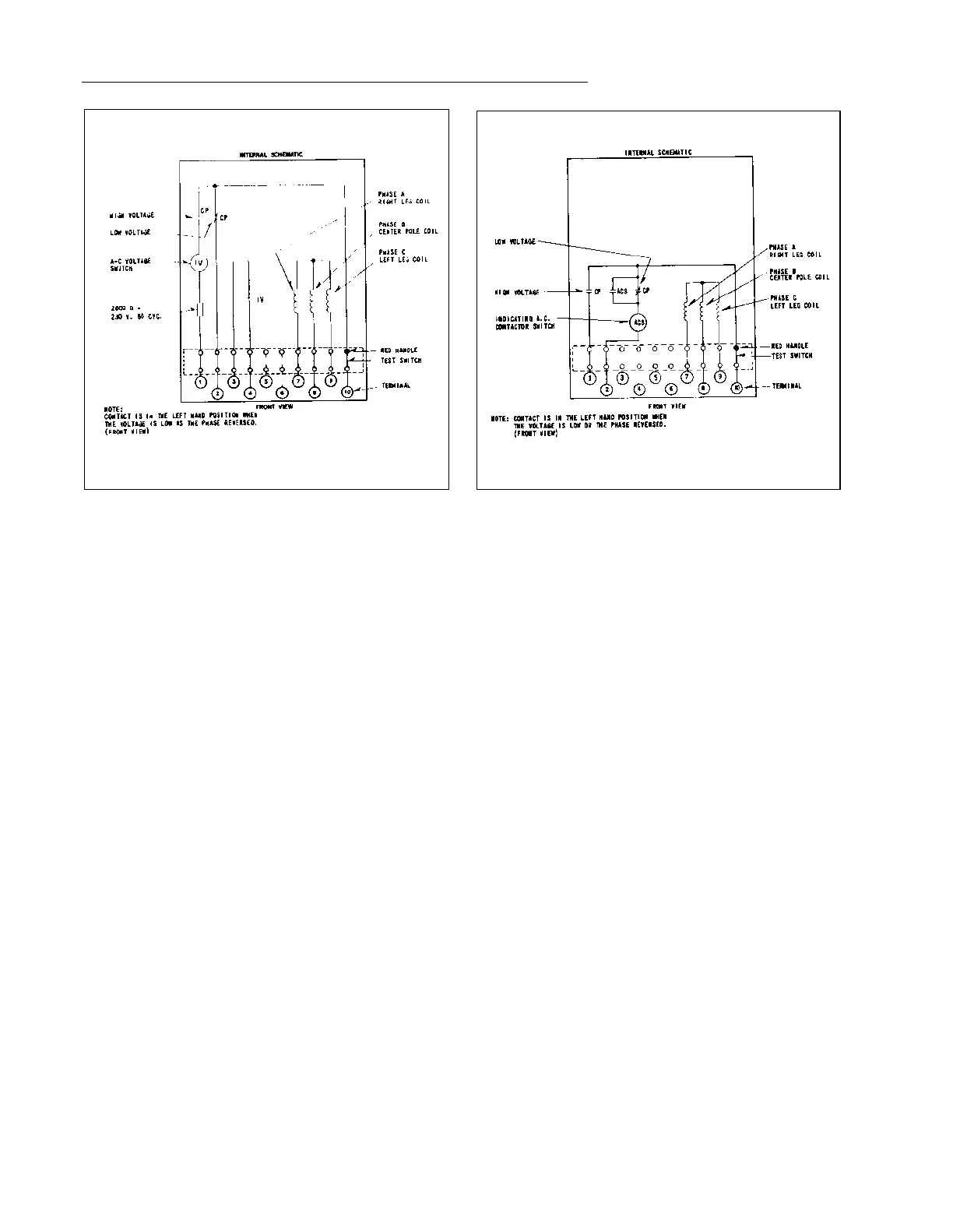

Fig. 10. Relay Type CP Reserve Phase, 3 Phase, 3 or 4
Wire, S.P.D.T., with ac Independent Voltage
Switch in Type FT-11 Case.
Fig. 11. Relay Type CP Reserve Phase, 3 Phase,
3 or 4 Wire, S.P.D.T. Contacts with Indicating
ac Contactor Switch in Low Voltage Circuit in
Type FT-11 Case.
Sub 1
184A469
Sub 1
184A836
