60 EasyLine EL3000 Series Commissioning Instructions
Gas Connections for Magnos27 (Model EL3020)

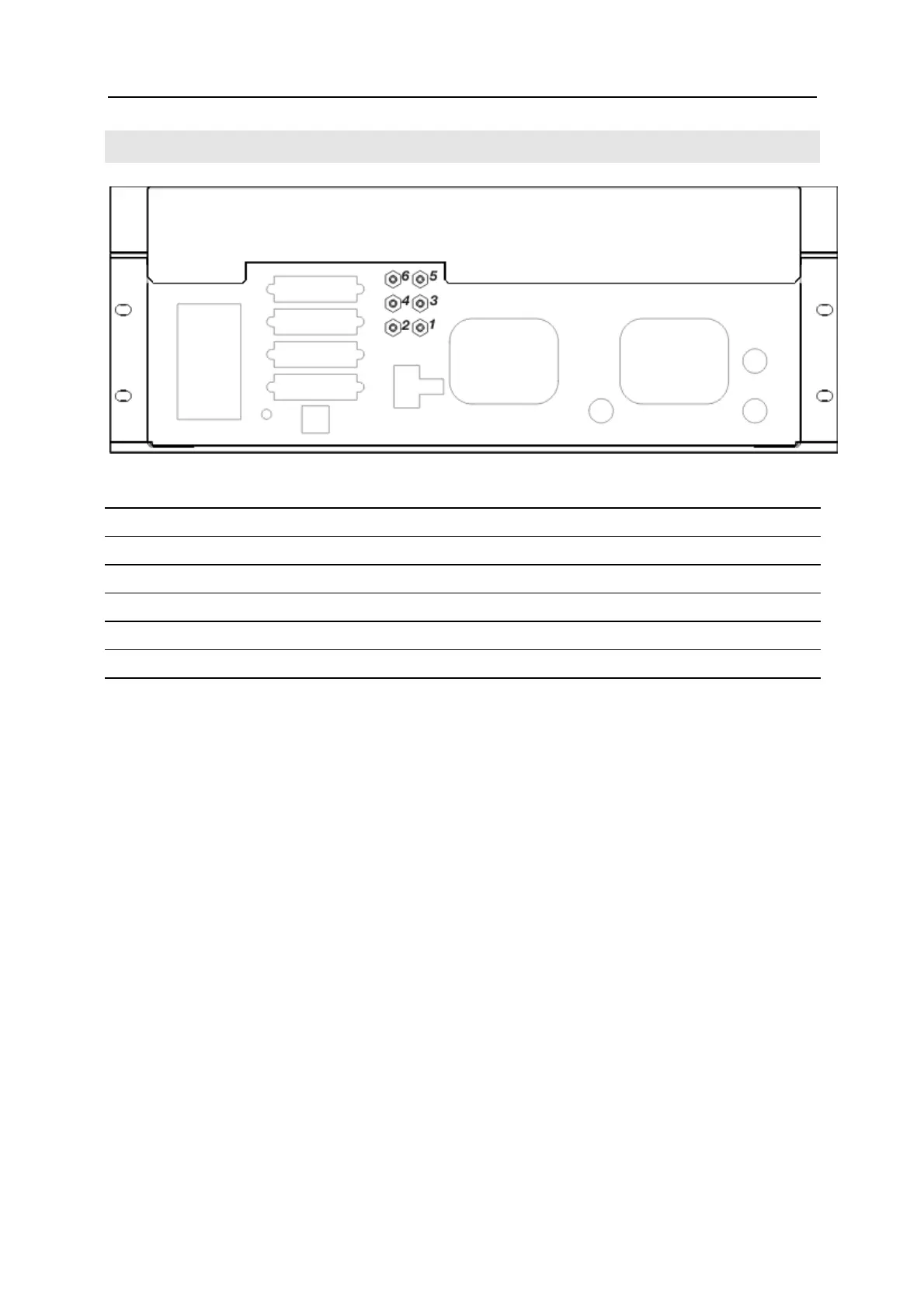

Magnos27: Gas Connections
1
Pressure sensor (option)
2
not used
3
Sample gas inlet
4
Sample gas outlet
5
Purge gas inlet analyzer
6
Purge gas outlet analyzer
Design: Screwed fittings with hose nozzles (stainless steel 1.4305/SAE 303) for
hoses with 4 mm inner diameter (supplied)
