ABB EasyLine EL3000 Series User Manual

Installing the Gas Analyzer 65
Gas Connections for Caldos27 (Model EL3040)

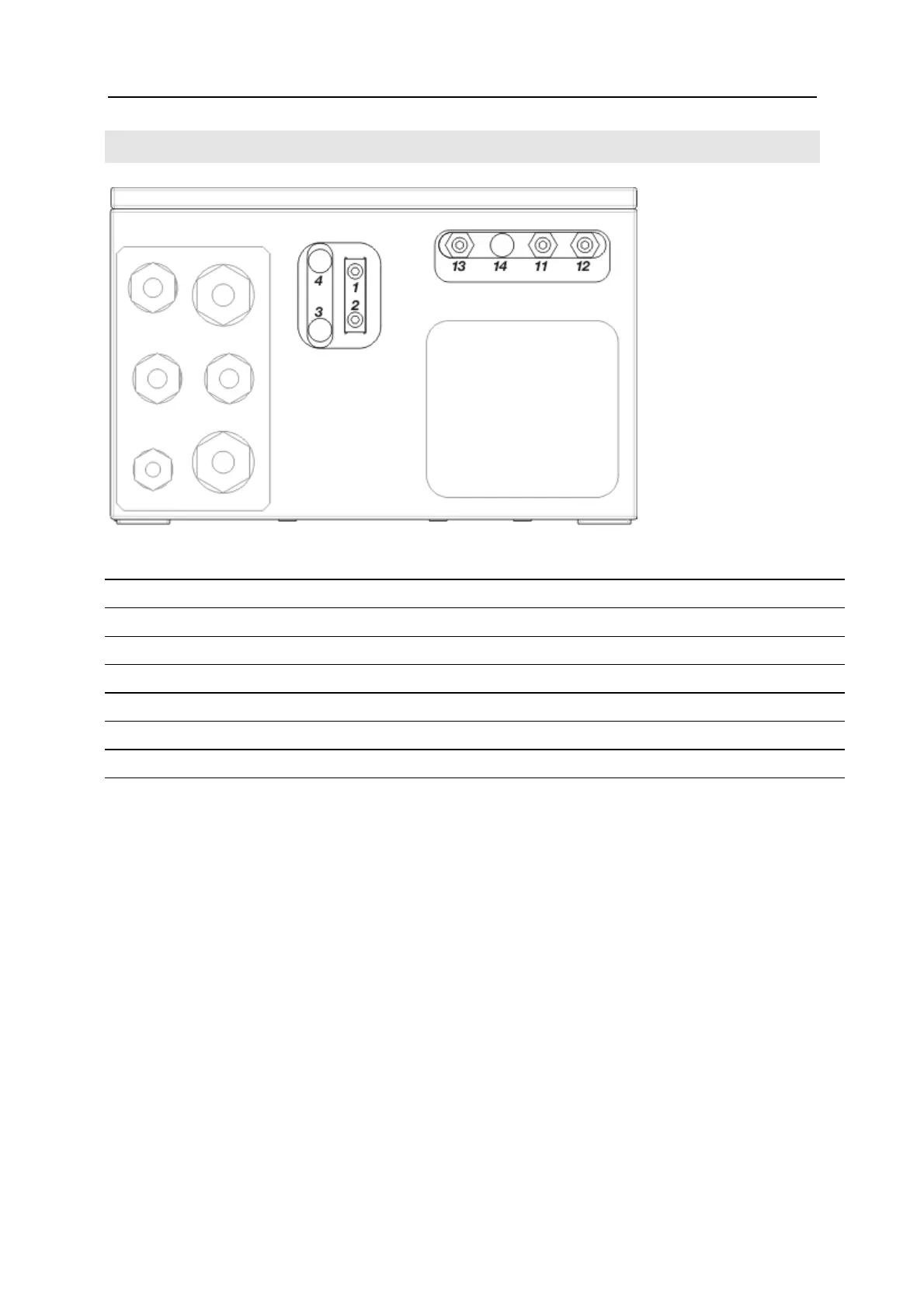

Caldos27: Gas Connections
1
Sample gas inlet
2
Sample gas outlet
3
not assigned
4
not assigned
11
Purge gas inlet for case
12
Purge gas outlet for case
13
Pressure sensor
Design: 1/8 NPT female thread (stainless steel 1.4305/SAE 303)
Connection of flexible tubes: straight screwed fittings (PP) with nozzles for
flexible tubes with inside diameter = 4 mm (supplied)
Connection of pipelines: Threaded connections (not supplied)
