Operation Manual / TPS44-F.. - TPS61-F..
Disasse
mbly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 99
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2412_EN Revision F
Installing compressor casing
 Refit wall insert (77000) and O-ring (77005) in the reverse order.
NOTICE
O-rings
Used O-rings must always be replaced with new ones. O-rings are only
available as a set (see chapter Spare parts).
 Refit diffuser in reverse order.
 Fit compressor housing in reverse order.
 Thoroughly clean fastening strips (72012) before fitting them.

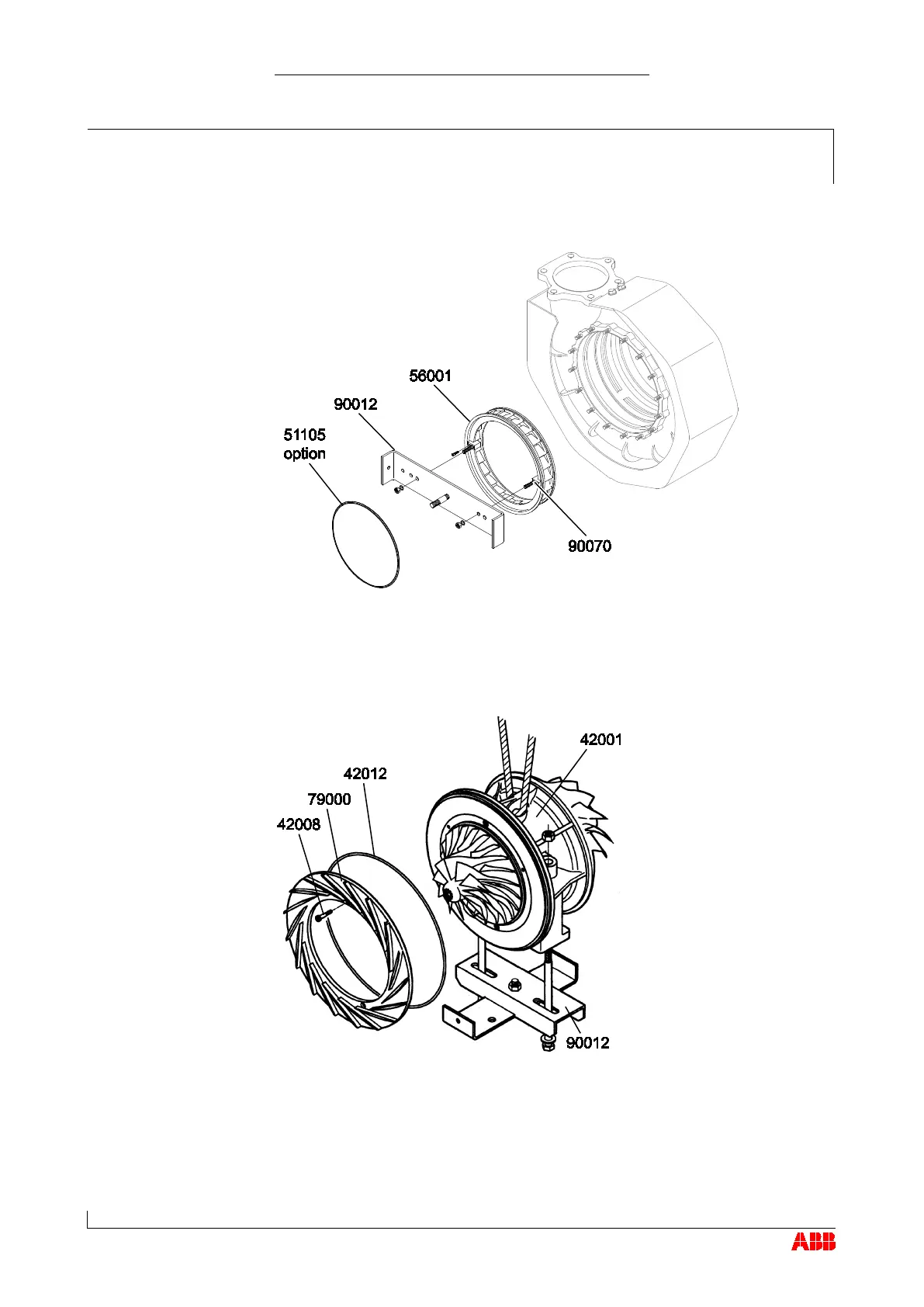

Fitting the diffuser
TPS..-F31/32 / FV31/32
