Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 108
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2412_EN Revision F

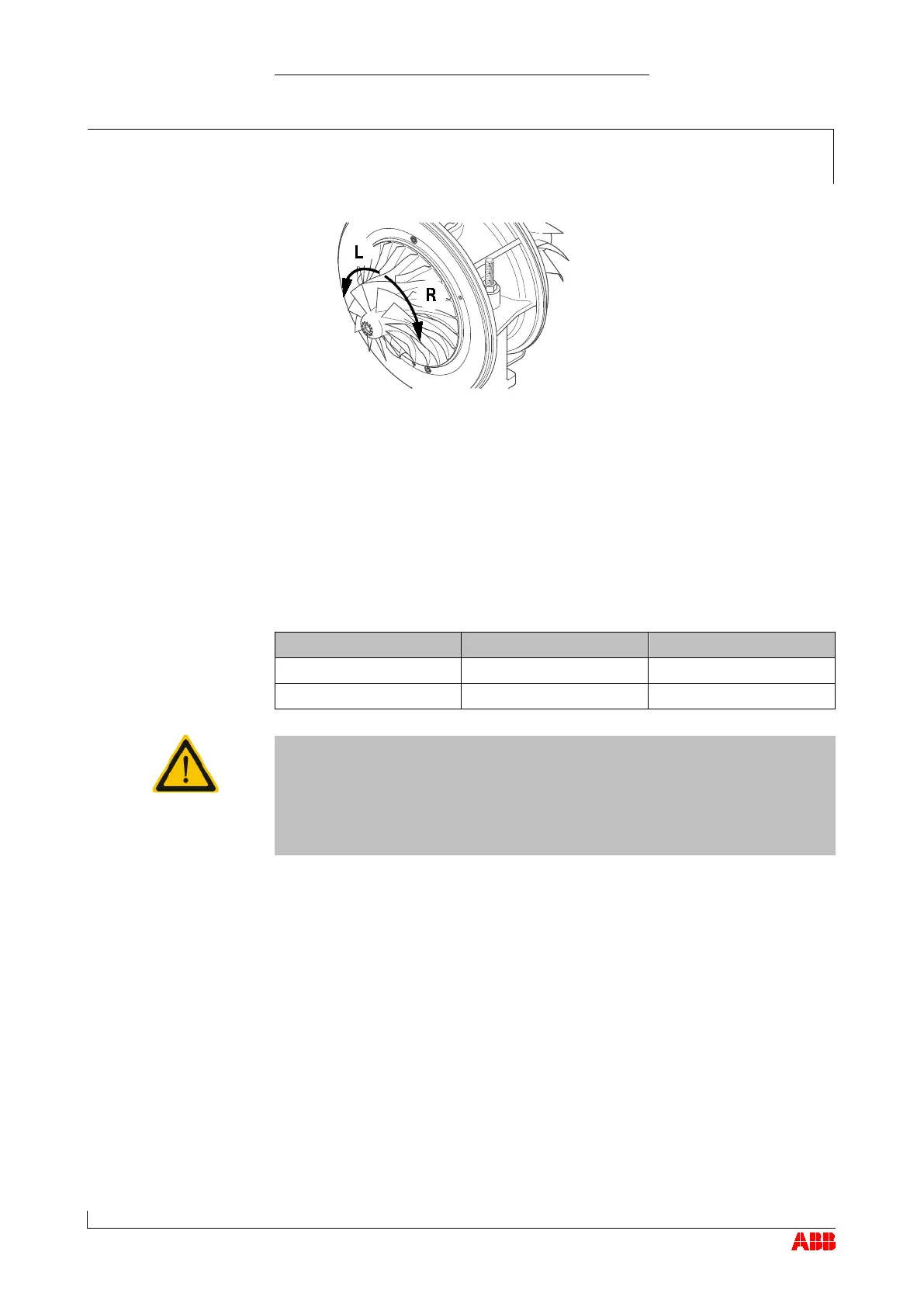

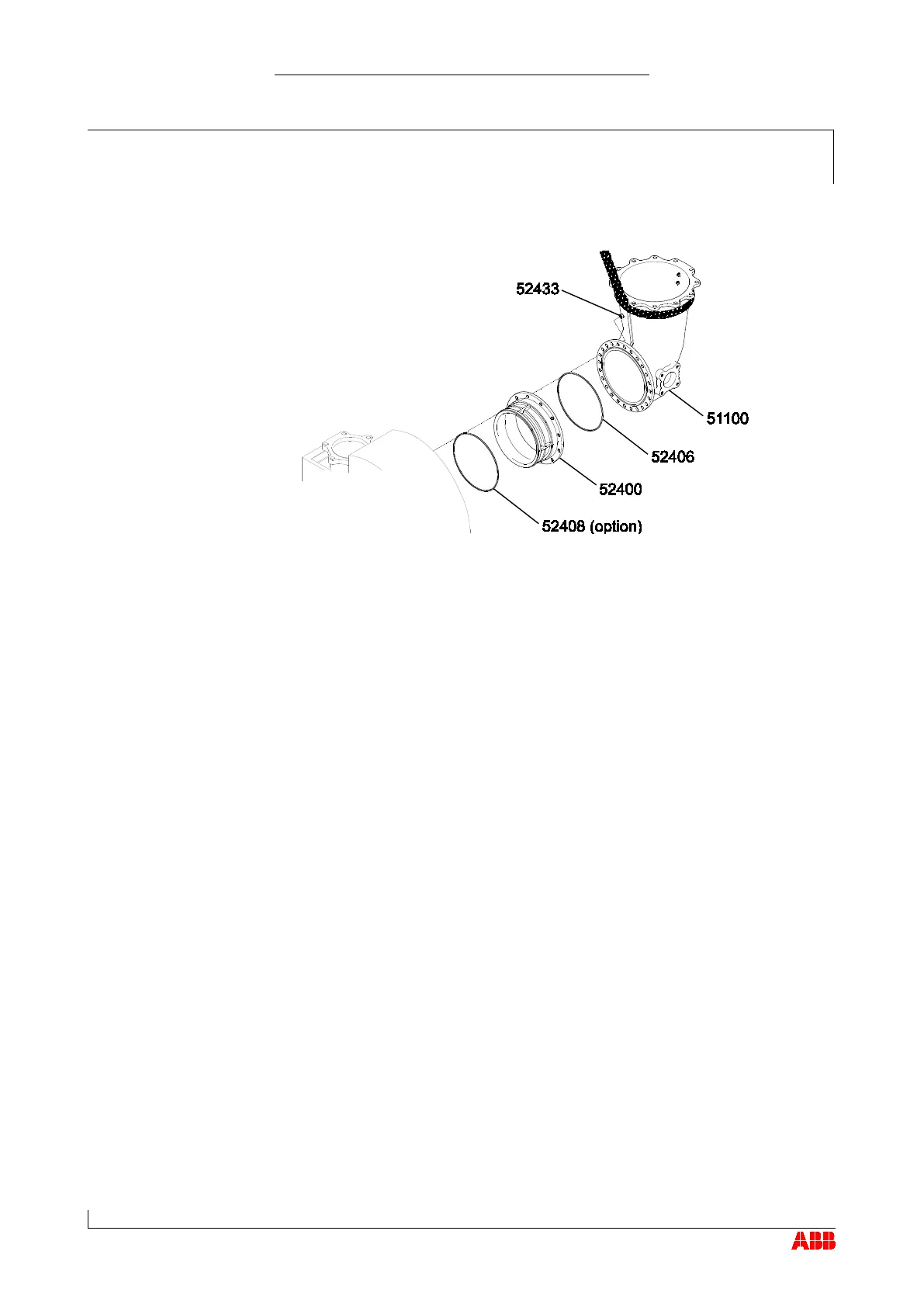

Fitting the gas outlet flange and gas outlet bend
 If provided, fit the C-ring (52408).
 Fit the gas outlet flange (52400).
 In the case of gas outlet bends (51100) from ABB Turbo Systems:
always replace the gasket (52406) (see the chapter entitled Spare
parts).
 Apply high-temperature grease to contacting surfaces and threads.
 Fit the turbine casing using the nuts (52433) while observing tightening
torques specified in the table of tightening torques.
 Fasten the insulation.
 Attach pipes in accordance with the enginebuilder's instructions.
