Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly 8
Radial clearances N and R 8.5 Page 112
© Copyright 2016 ABB. All rights reserved.
August 2017HZTL2412_ENRevision F

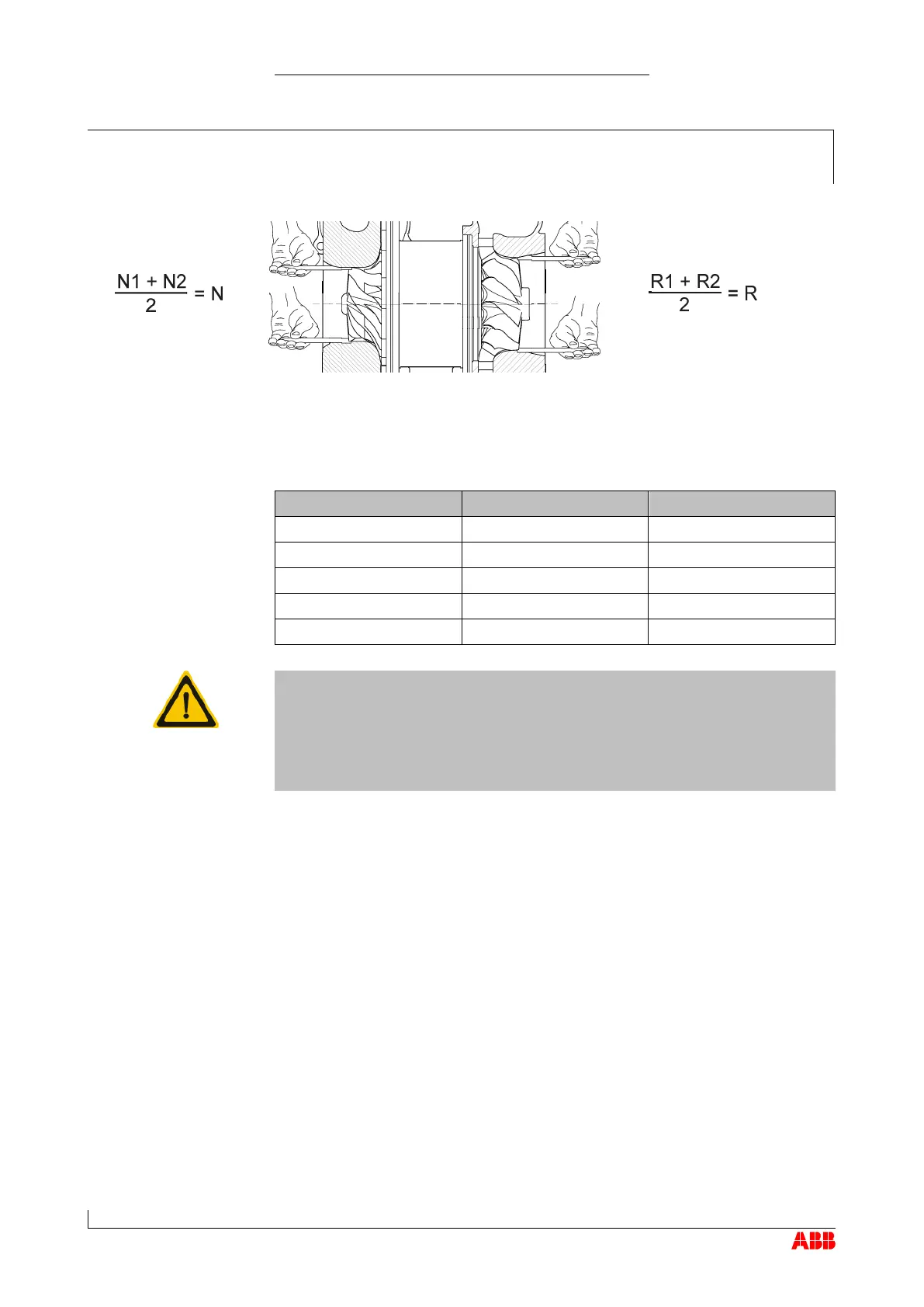

The mean values measured must be within the permissible values of the
radial clearance N and R.
Product N [mm] R [mm]
TPS44 0.15 … 0.49 0.36 … 0.67
TPS48 0.22 … 0.58 0.47 … 0.77
TPS52 0.30 … 0.67 0.59 … 0.92
TPS57 0.40 … 0.86 0.75 … 1.11
TPS61 0.50 … 0.94 0.90 … 1.32
CAUTION
Clearances out of tolerance
Clearances out of tolerance and excessively worn components can be
the cause of serious damage to machinery and property.
τ Have components assessed and, if necessary, replaced by an ABB
Turbocharging Service Station.
Radial clearances N and
