Operation Manual / TPS44-F.. - TPS61-F..
Disassembling and assembling
turbocharger
Page 98
April 2015 HZTL2412_EN Revision E
Removing the cartridge group
Check the lifting gear and fasten it to bearing casing (42001).
Disconnect all lines in accordance with the engine builder's
instructions, remove the insulation, remove the turbocharger and
compressor casing together with the filter silencer (also see the
previous chapter).
Touching hot surfaces or contact with hot operating materials can lead
to serious burns.
Do not touch hot surfaces and heed the warning plate on the
turbocharger.
Wear heat-resistant safety gloves and protective clothing.
Allow the turbocharger to cool down before carrying out any work.
Wear safety gloves against thermal risks.
The bearing casing is difficult to loosen.

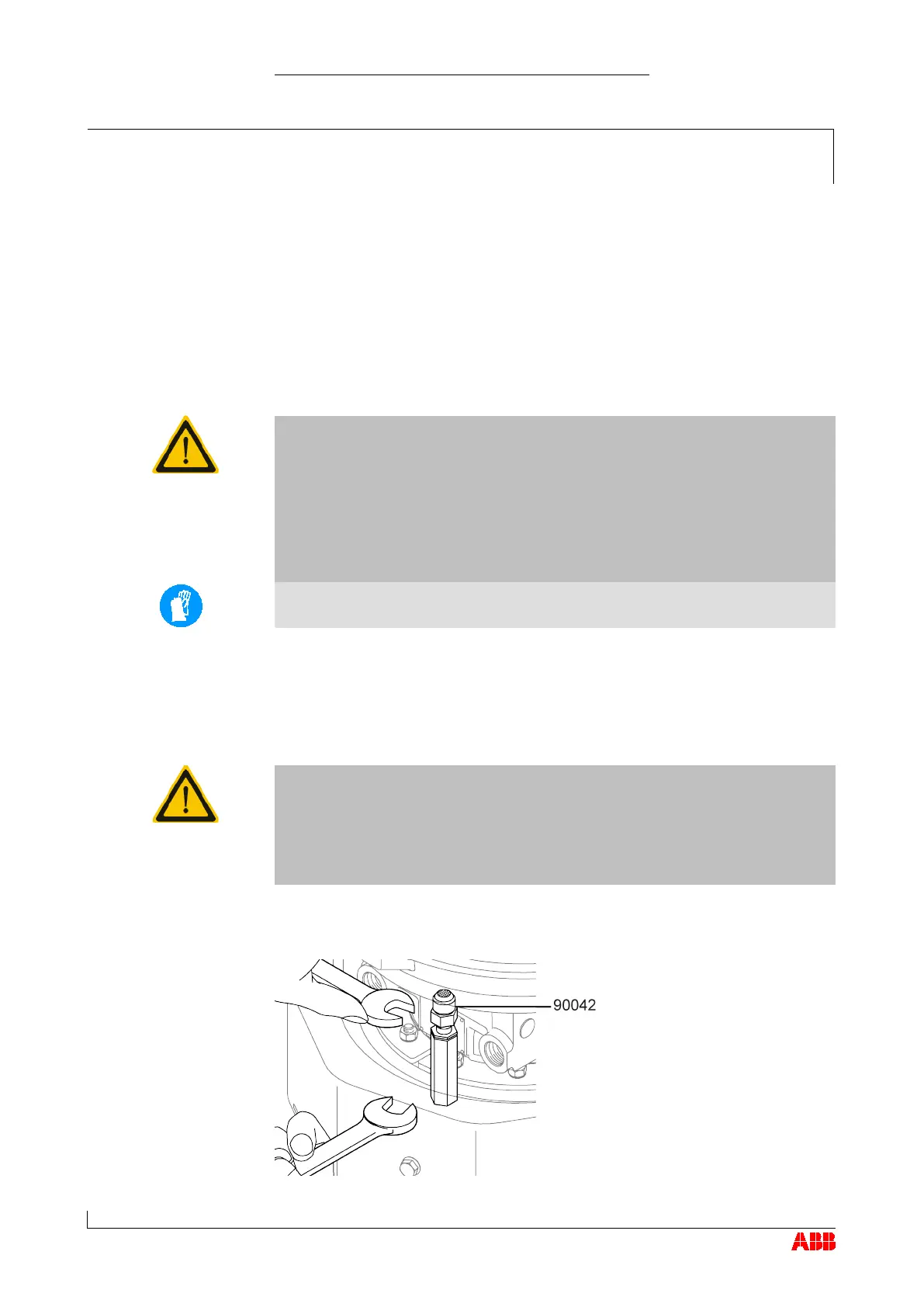

Use the press-off tool (90042) against the turbine casing to press off
the bearing casing (see the following illustration).
The press-off tool can generate a high axial force and, if it is not used
properly (too much pressure on one side), it can damage the rotor.
It should thus be used alternately on both sides while avoiding
excessive pressure on either side.
© Copyright 2015 ABB. All rights reserved.
