ABB HT565235 Operating Manual

Operation Manual / TPL67-C.. - TPL71-C..
Disassembly and assembly
8
Installing cartridge group
8.7
Page 105
© Copyright 2017 ABB. All rights reserved.
February 2017 HZTL2488_EN Revision D


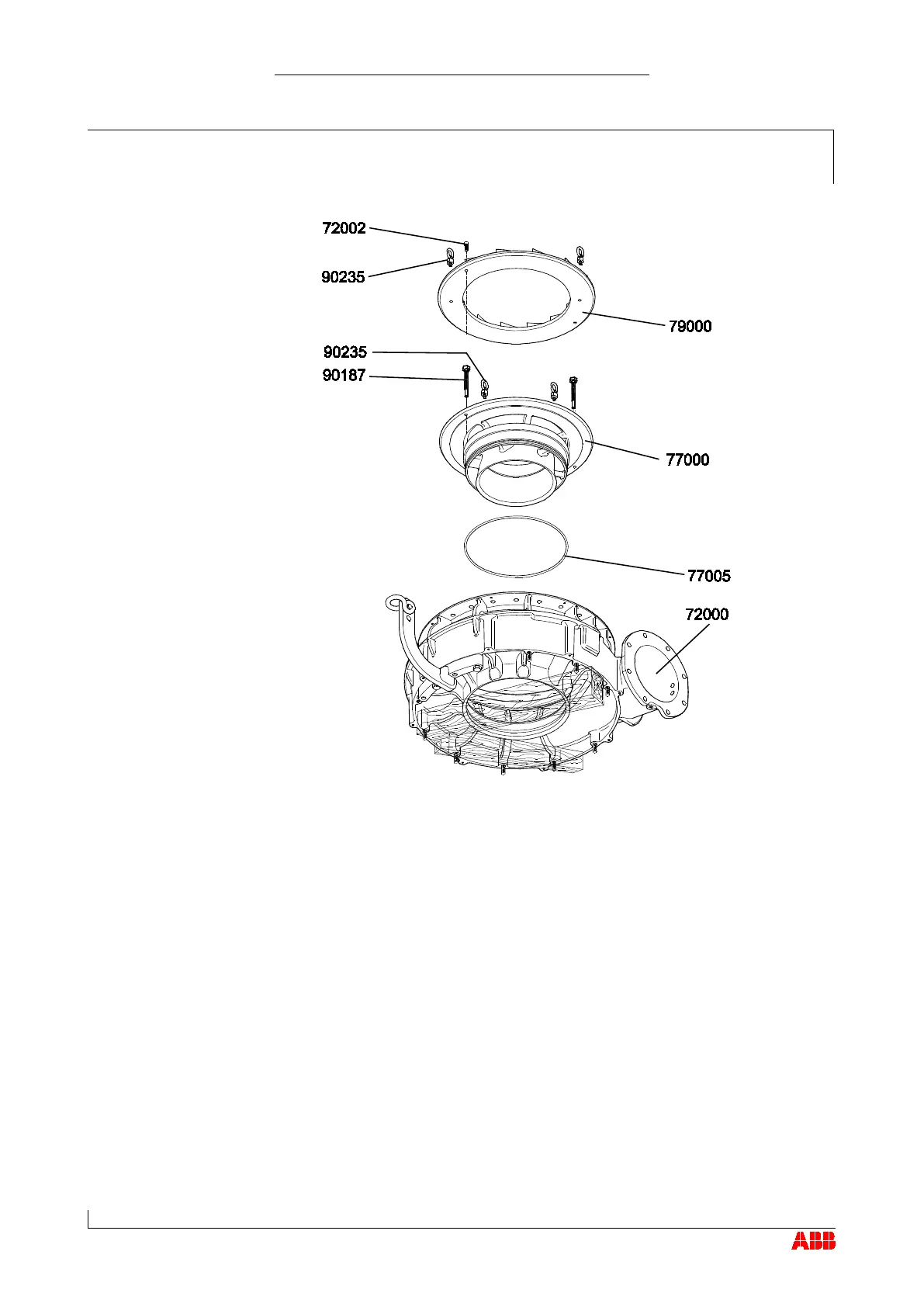

Fit the O-ring (77005) to the wall insert (77000).
 Fit the swivel lifting eyes (90235) and attach lifting gear.
 Align the wall insert (77000) using the centering screw (90187) and fit
it.
 Put the diffuser (79000) in place using the swivel lifting eyes (90235).
 Remove the swivel lifting eyes (90235).
 Fit screws (72002).
