Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 96
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2412_EN Revision F

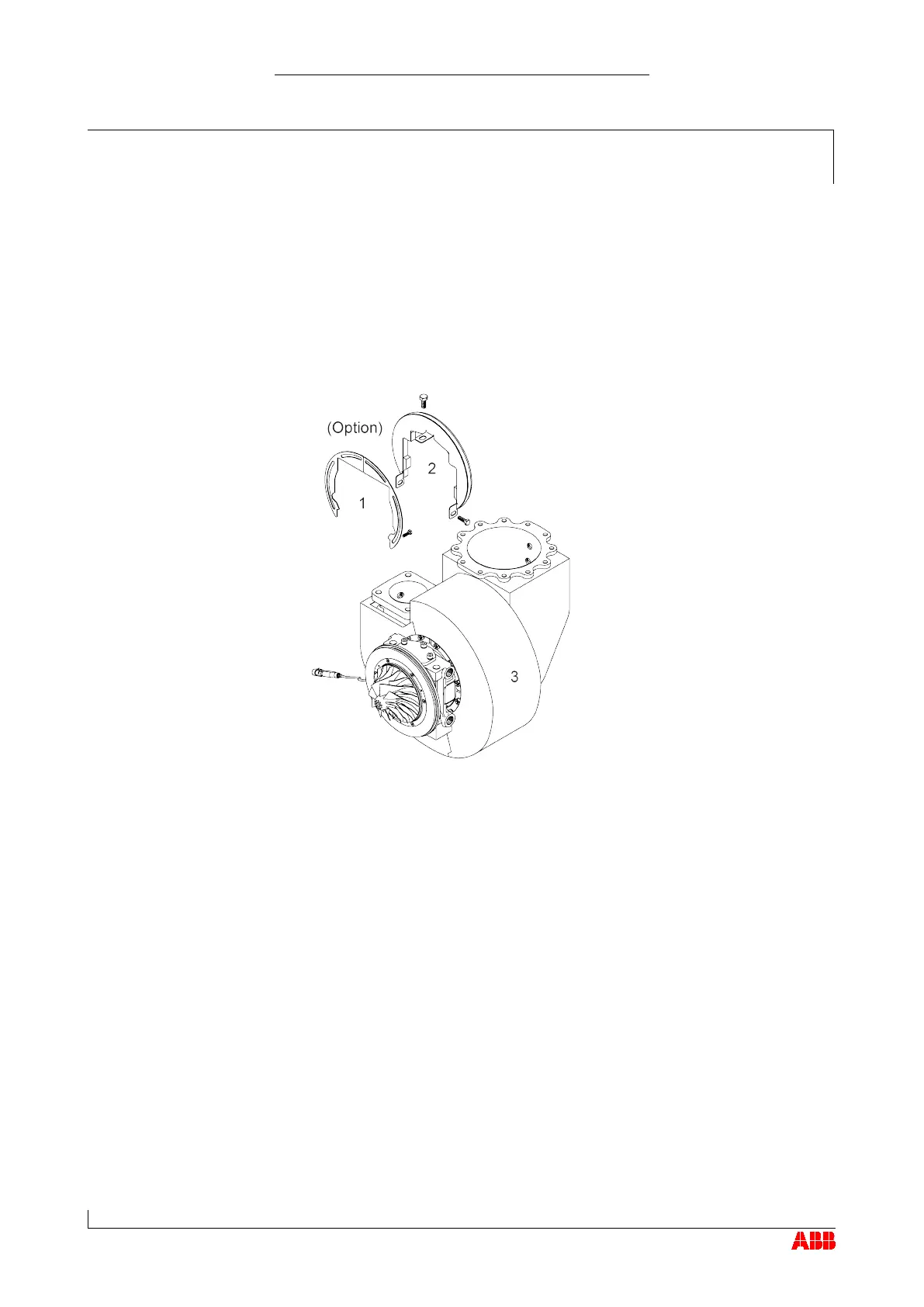

Removing the insulation
 Loosen and remove the screws for the insulation plates (1, 2).
 If provided: Remove the insulation plates (1, 2).
 Remove the remaining screws for the insulation (3).
 Remove the insulation (3).
If provided
