Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly 8
Disassembling and assembling
turbocharger
8.3 Page 98
© Copyright 2016 ABB. All rights reserved.
August 2017HZTL2412_ENRevision F

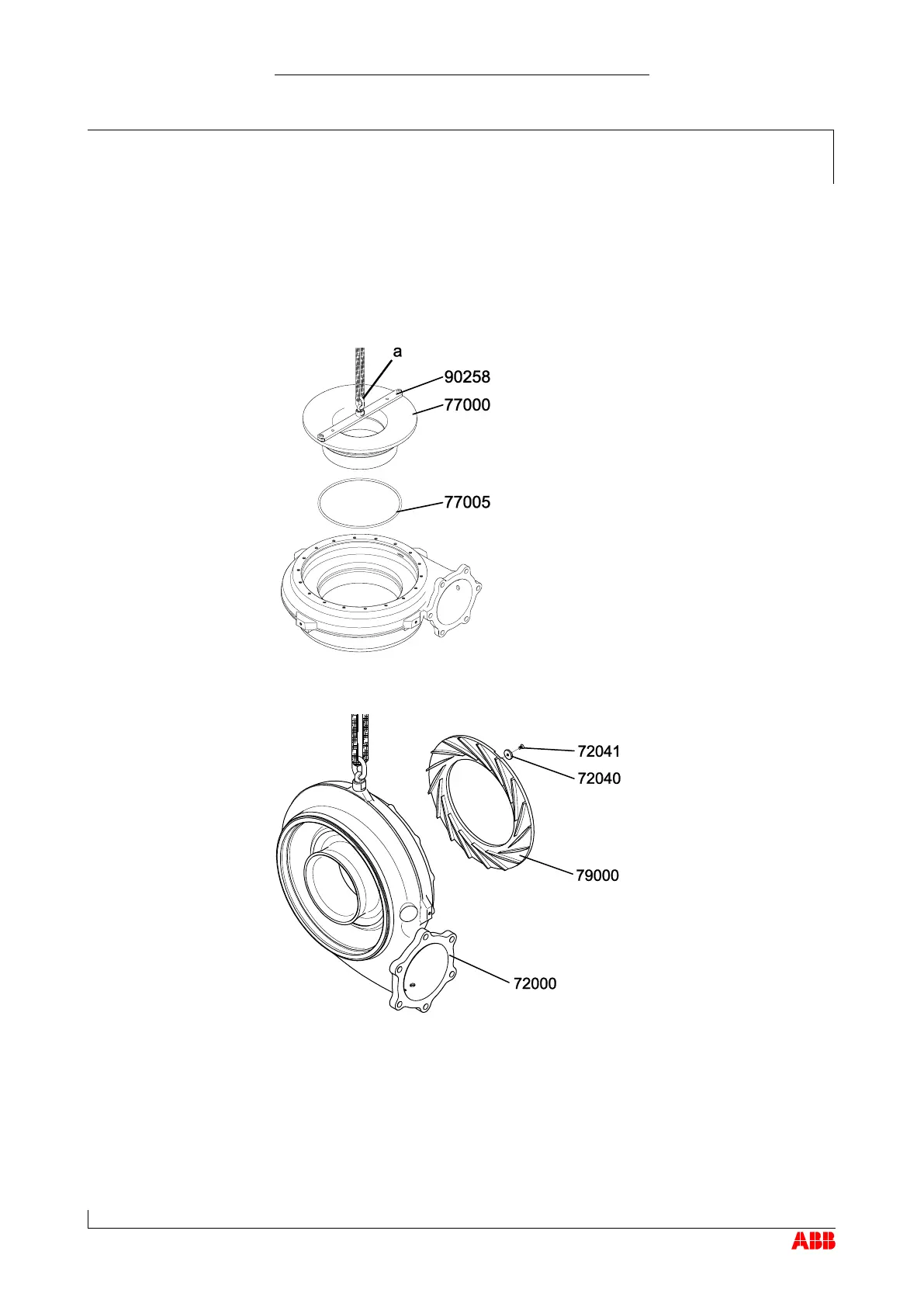

TPS61 wall insert removal
τ Fasten lifting beam (90258) to wall insert.
τ Fasten swivel lifting eye (a) to lifting beam.
τ Remove wall insert (77000) using lifting gear.
τ Loosen screws (72041) and remove them together with lockwashers
(72040) and diffuser (79000) from compressor casing (72000).
Disassembly of diffuser
