Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly 8
Disassembling and assembling
turbocharger
8.3 Page 96
© Copyright 2016 ABB. All rights reserved.
August 2017HZTL2412_ENRevision F

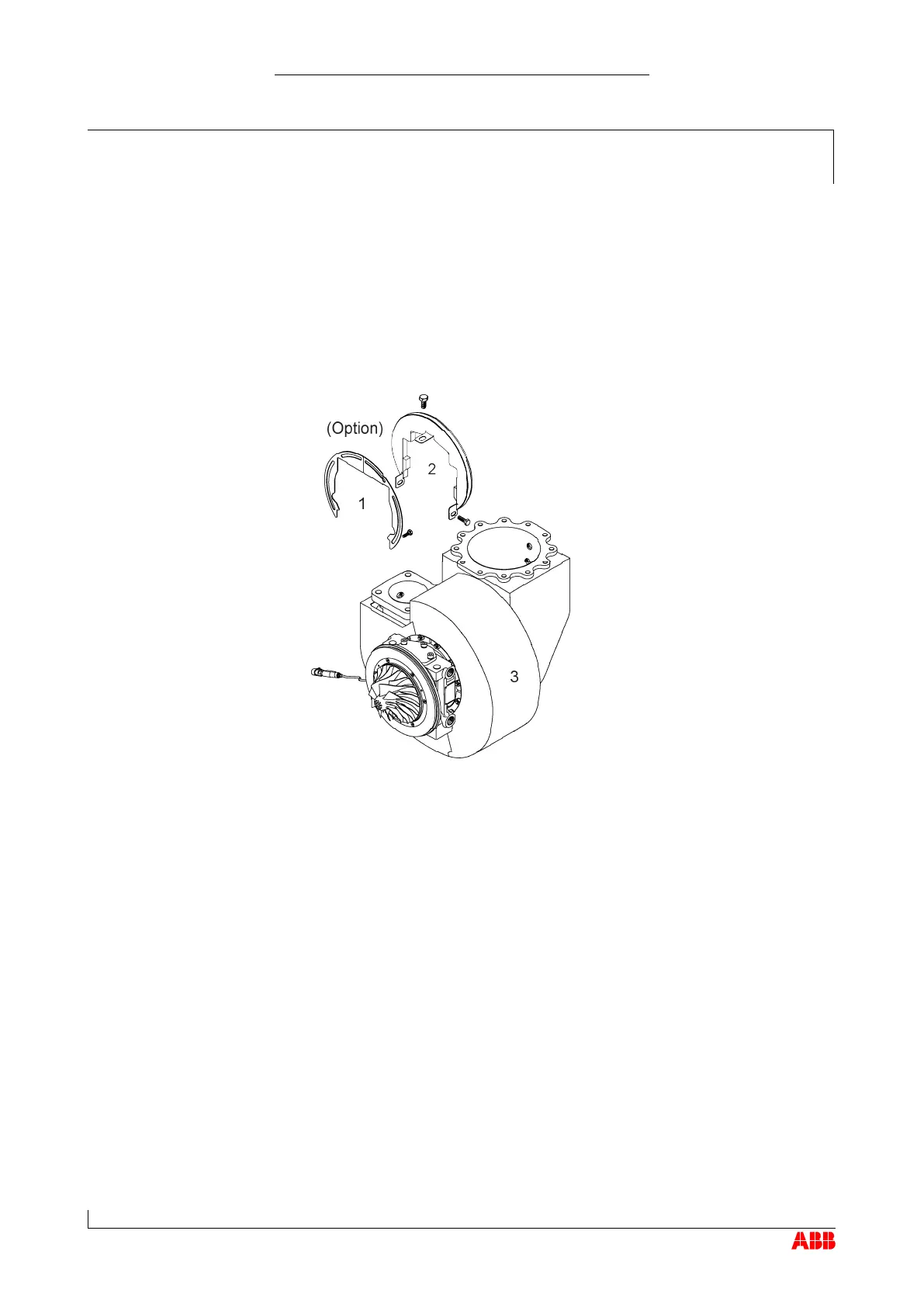

Removing the insulation
τ Loosen and remove the screws for the insulation plates (1, 2).
τ If provided: Remove the insulation plates (1, 2).
τ Remove the remaining screws for the insulation (3).
τ Remove the insulation (3).
