Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly 8
Disassembling and assembling
turbocharger
8.3 Page 107
© Copyright 2016 ABB. All rights reserved.
August 2017HZTL2412_ENRevision F

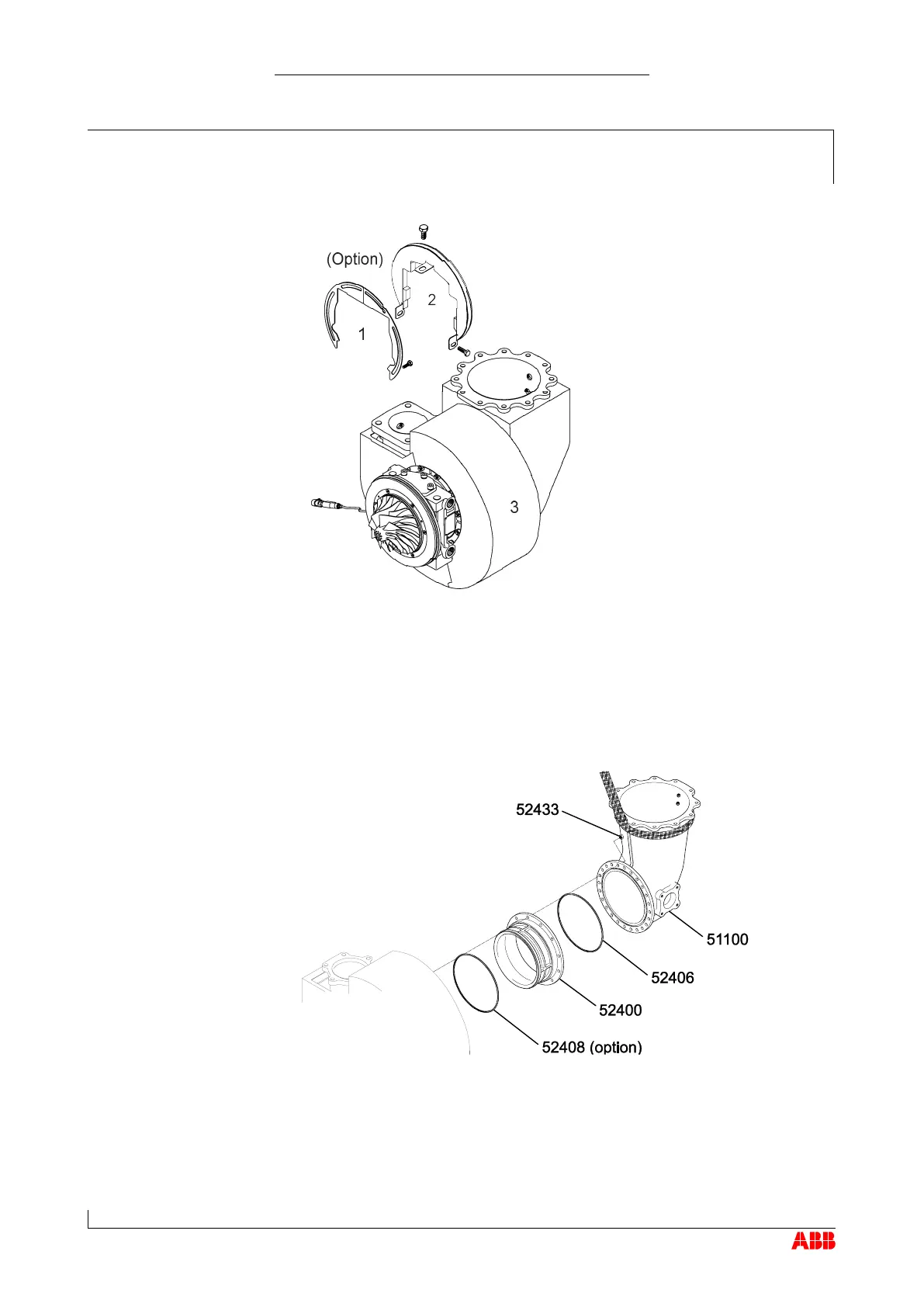

τ Plug in the cable connector (86515) for the speed sensor (86505) and
(if provided) fit the insulation plates (1, 2).
Removing gas outlet bend and gas outlet flange
τ Disconnect all lines in accordance with engine builder's instructions
and remove insulation. (See also preceding chapter.)
τ Loop lifting gear around gas outlet bend (51100).
τ Remove gas outlet bend (51100) and gasket (52406). Only gas outlet
bends from ABB Turbo Systems have the gasket (52406).
τ Remove gas outlet flange (52400) and, if fitted, C-ring (52408).
If provided
