Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
8 Dismantling and fitting, general / 8.5 Table of tightening torques
© Copyright 2020 ABB. All rights reserved.
HZTL4032_EN
Rev.P
March 2020
8.5
Table of tightening torques

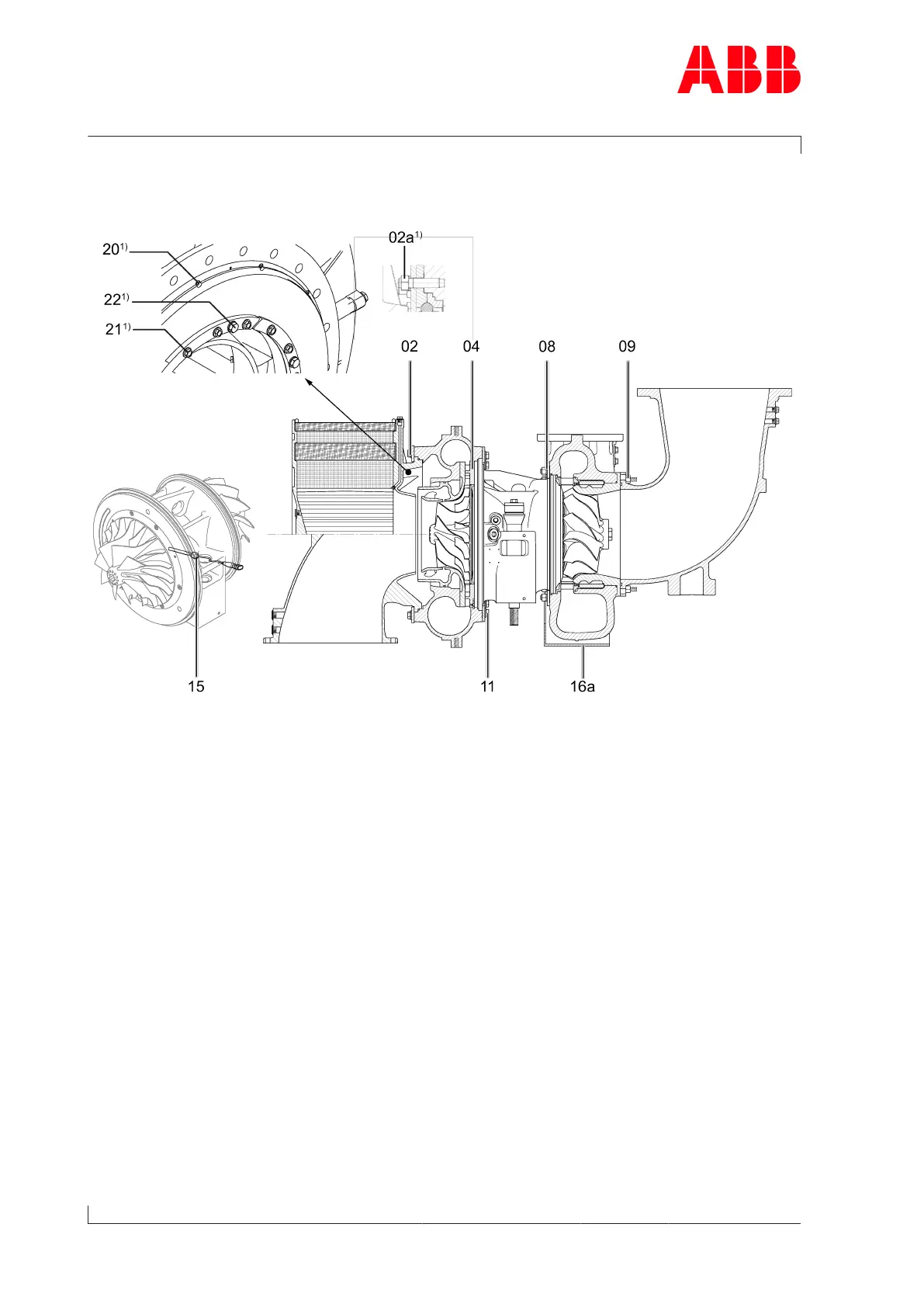

Fig.38: Overview of tightening torques
1) Only A155-M with uncoupled filter silencer
Page 74 / 171
103
105
