Operation Manual / TPS48-D/E.. - TPS61-D/E..
Op
eration
4
Noise emissions
4.1
Page 44
April 2015 HZTL2410_EN Revision D

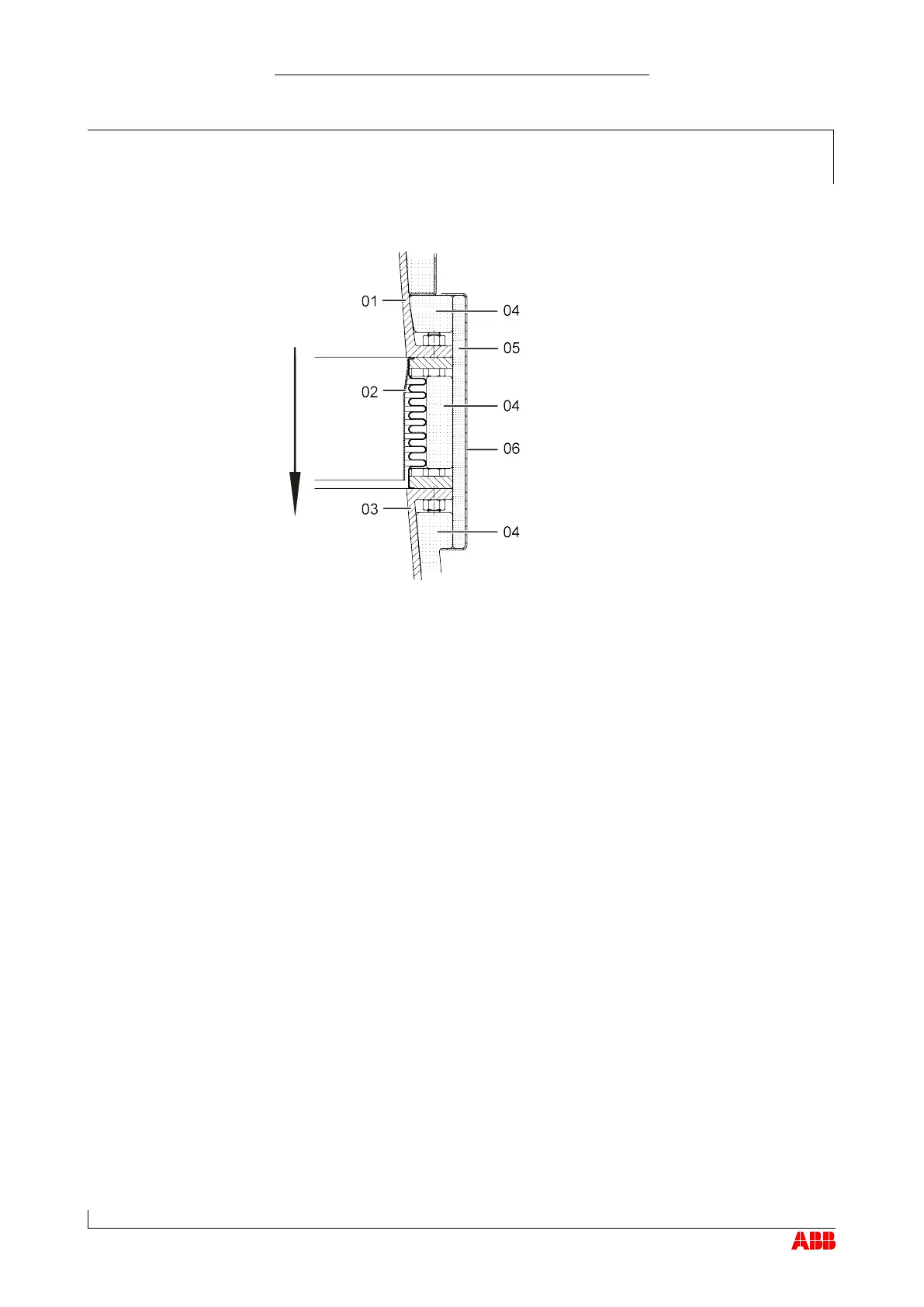

Suggestion for noise insulation of the bellows
01 Compressor casing
02
Bellows
03
Charge air duct / scavenging air line
04
Insulation pads
05
Insulation mat (at least 15 mm)
06
Sheet metal cover
