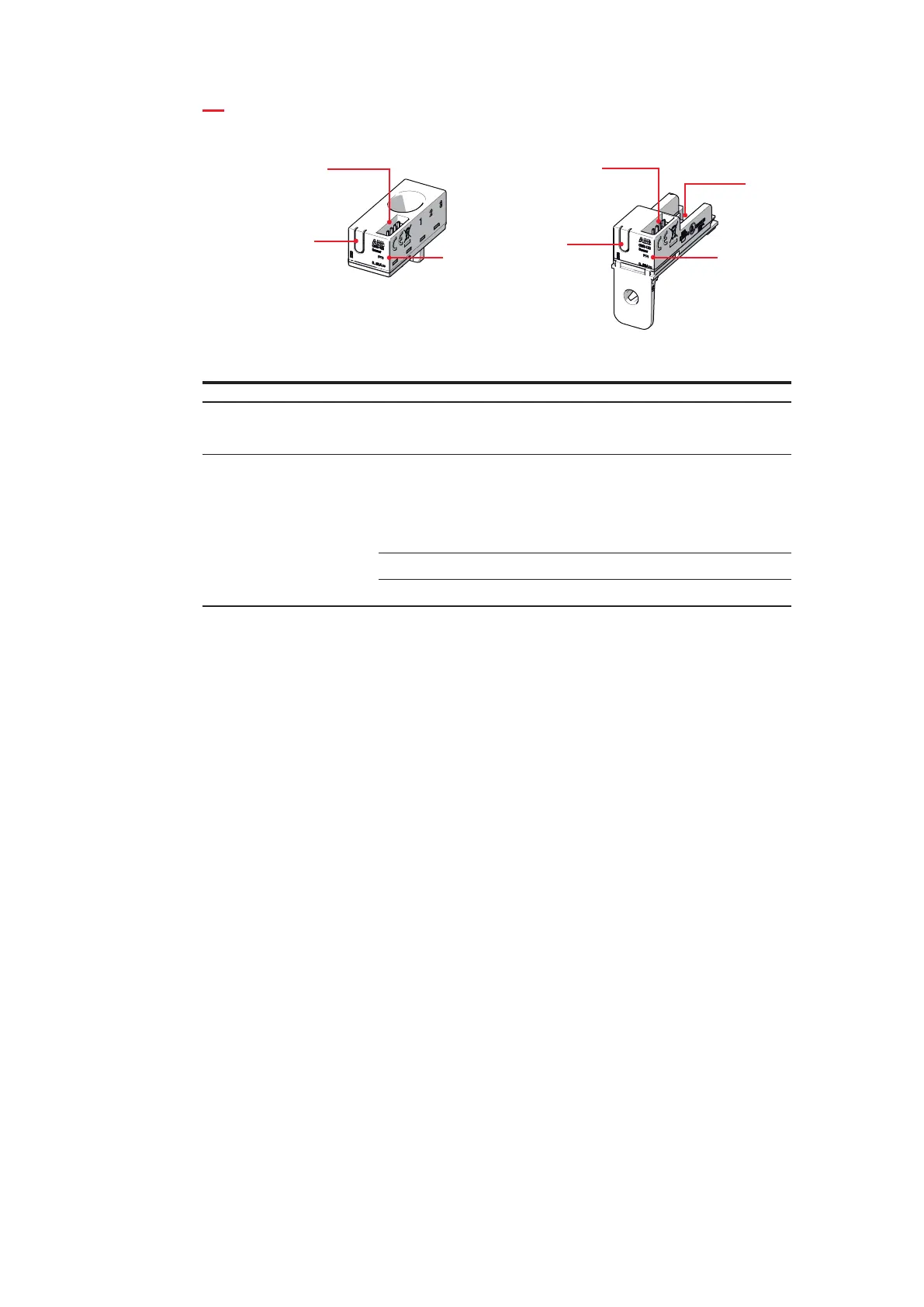

2.2.Current sensors
• Current sensors LED Status
Display Function
On
Sensor is online and in measurement mode. There is a feature in
the configuration to switch off the LED of all the sensors after a
specified time.
Off
Sensor is not connected to InSite Bus or LED is switched off in
the configuration.
Sensor is not assigned.
Sensor in assign process or in “setting/branches” mode. This
sensor is the sensor corresponding to the yellow-marked row on
the screen for webserver settings.
Flashing slowly (1Hz)
Flashing fast (2Hz)
Push button
LED
LED
Push button
CMS - Bus
interface
Opening for
the electrical
conductor
CMS - Bus
interface
10 SCU100 INSITE PRO M COMPACT USER MANUAL
