ABB SACE 19
Furthermore it is possible to make Power Motor Control
Centerx with withdrawable drawers without transition
panels by using MCC columns with rear access.

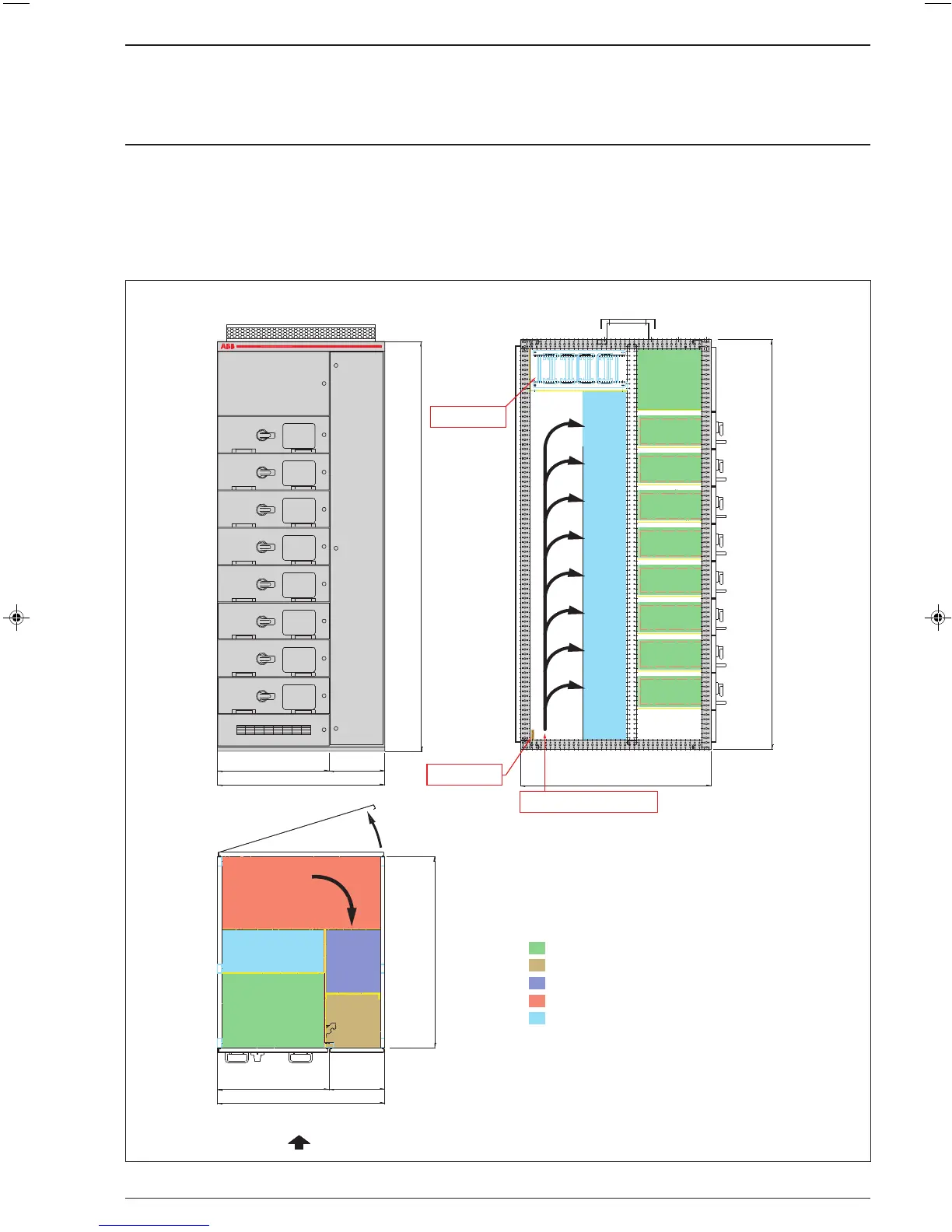

FRONT VIEW LATERAL SECTION
INTERNAL DIVISIONS
Drawers/apparatus area
Auxiliary cable area
Power cable connection area (form 4b)
Power cable entry/exit
Vertical busbar area
In this solution, the auxiliary connections are always
accessed from the front, whereas the power connections
are available on the rear.
FRONT
800/900
600
1025/1200/1400/1600
200/300
600 200/300
800/900 1025/1200/1400/1600
EARTHING
BUSBAR
MAIN BUSBARS
COMPARTMENT
POWER CABLE ENTRY
2200
2200
