ELECTRICAL CIRCUIT DIAGRAM

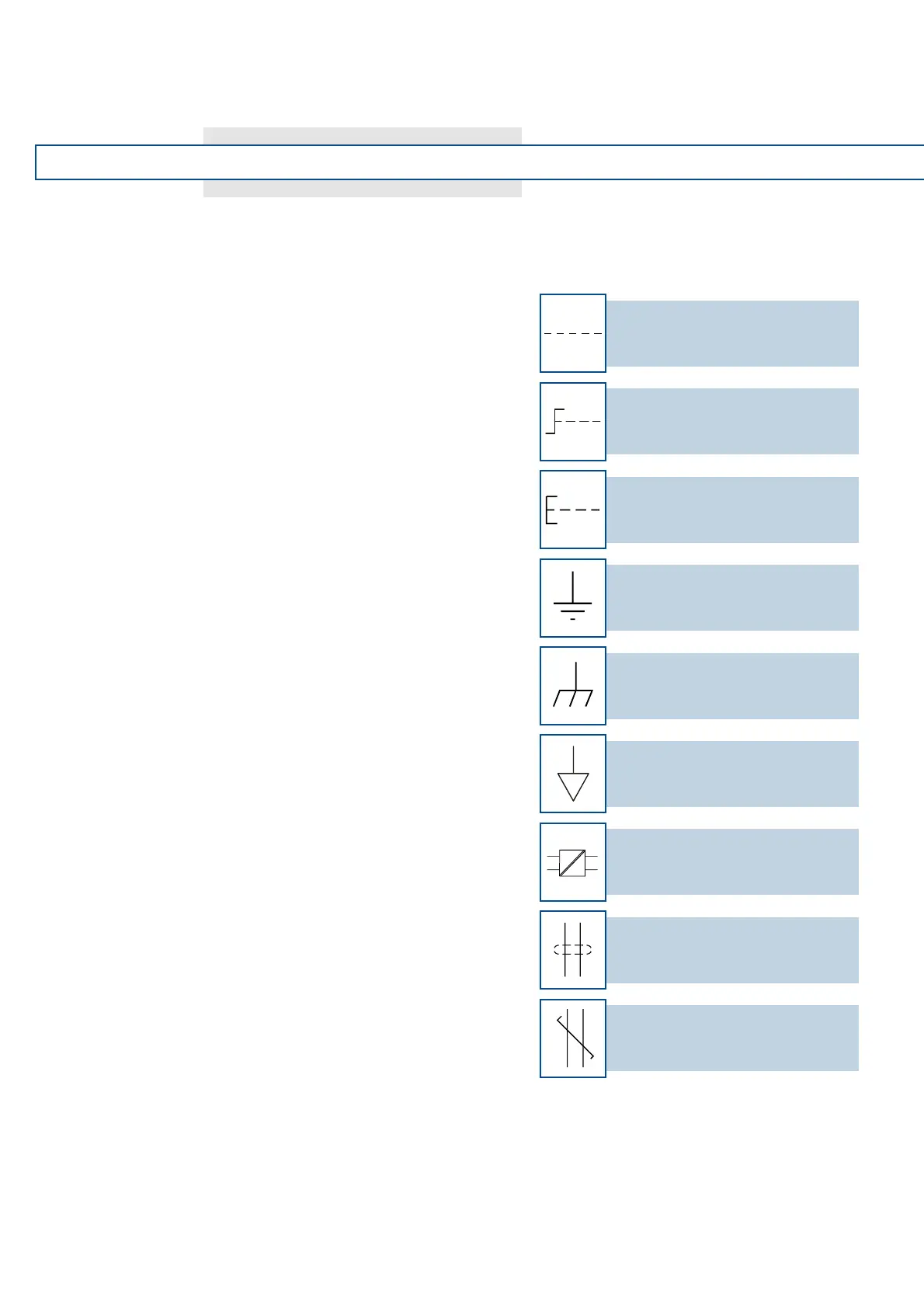

Graphic symbolsConnections
For the PR512 release connections use the
following types of cable:
– auxiliary power supply (Uaux.) = screened
cable TI4069/2x0.2 code 07108
– external opening control (SO3) = screened
cable TI4069/2x0.2 code 07108 (max. length:
30 m)
– S33M and Q/… binary inputs = screened cable
TI4069/4x0.2 code 07109
– S751 binary input = screened cable TI4069/
2x0.2 code 07108
– serial interface (W1) = screened cable T54566
code 56884
– opening solenoid (YO3) = screened cable
TI4065/2x1 code 07136
– current transformer circuits (TI/… = screened
cable TI4065/2x1 code 07136
– remaining circuits = cables T14018.
Mechanical, pneumatic or hydraulic
connection
Rotary control
Pushbutton control
Earth (general symbol)
Mass, frame
Equipotentiality
Converter with galvanic separation
Screened cable conductors (example
with two conductors)
Corded conductors or cables (example
with two conductors)
