AngleRCA
Forward
Area
Iop = I2
Upol=-U2
Reverse
Area
IEC10000031-1-en.vsd
IEC10000031 V1 EN

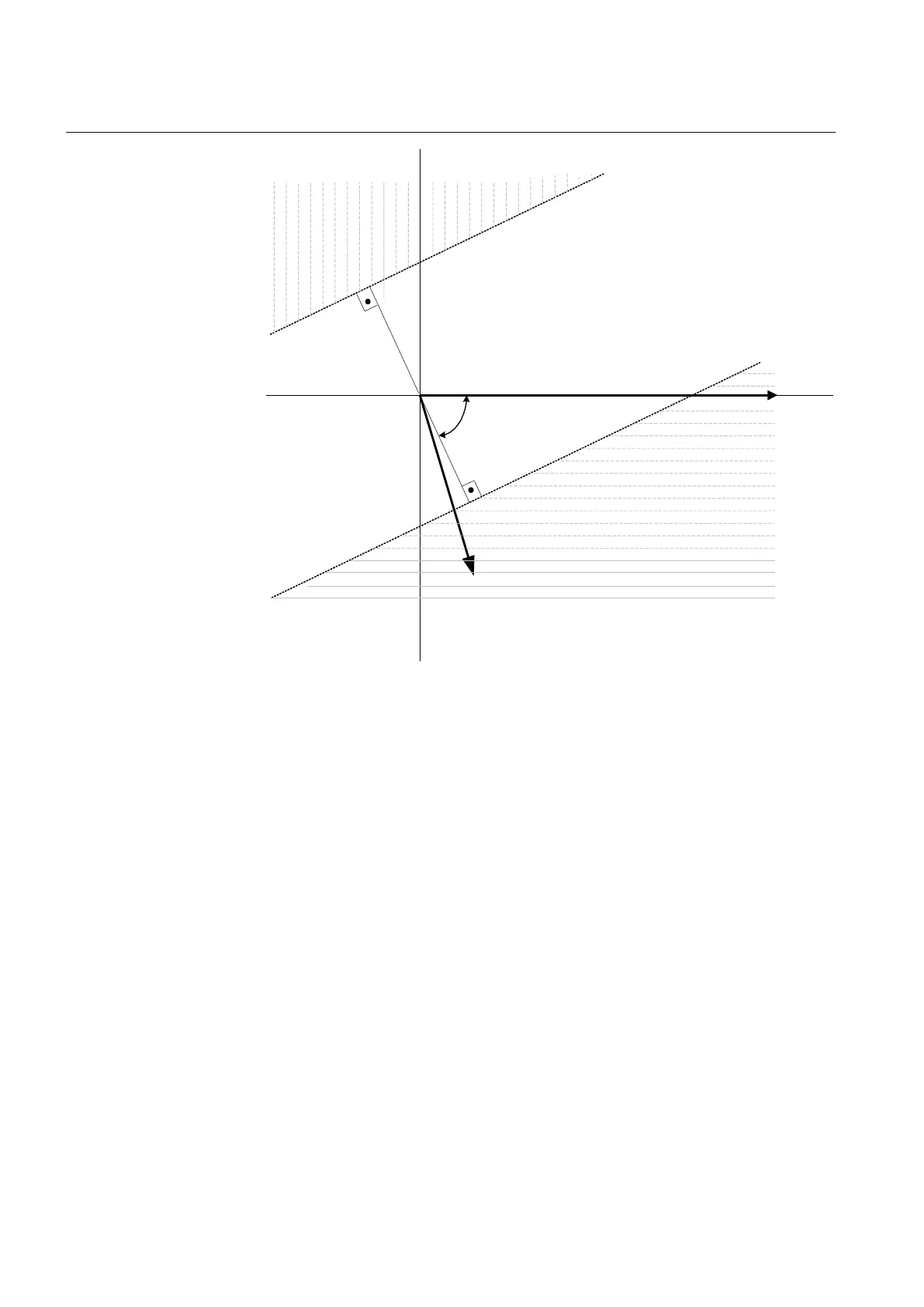

Figure 188: Relay characteristic angle given in degree
In a transmission network a normal value of RCA is about 80°.
UPolMin: Minimum polarization (reference) voltage % of UBase.
I>Dir: Operate residual current level for directional comparison scheme. The setting
is given in % of IBase. The start forward or start reverse signals can be used in a
communication scheme. The appropriate signal must be configured to the
communication scheme block.
9.6 Sensitive directional residual overcurrent and power
protection SDEPSDE
