Control Protection Control ProtectionControl and protection
GOOSE
en05000734.vsd
Station HSI
MicroSCADA
Gateway
IED
A
IED
A
IED
A
IED
A
IED
A
IEC05000734 V1 EN-US

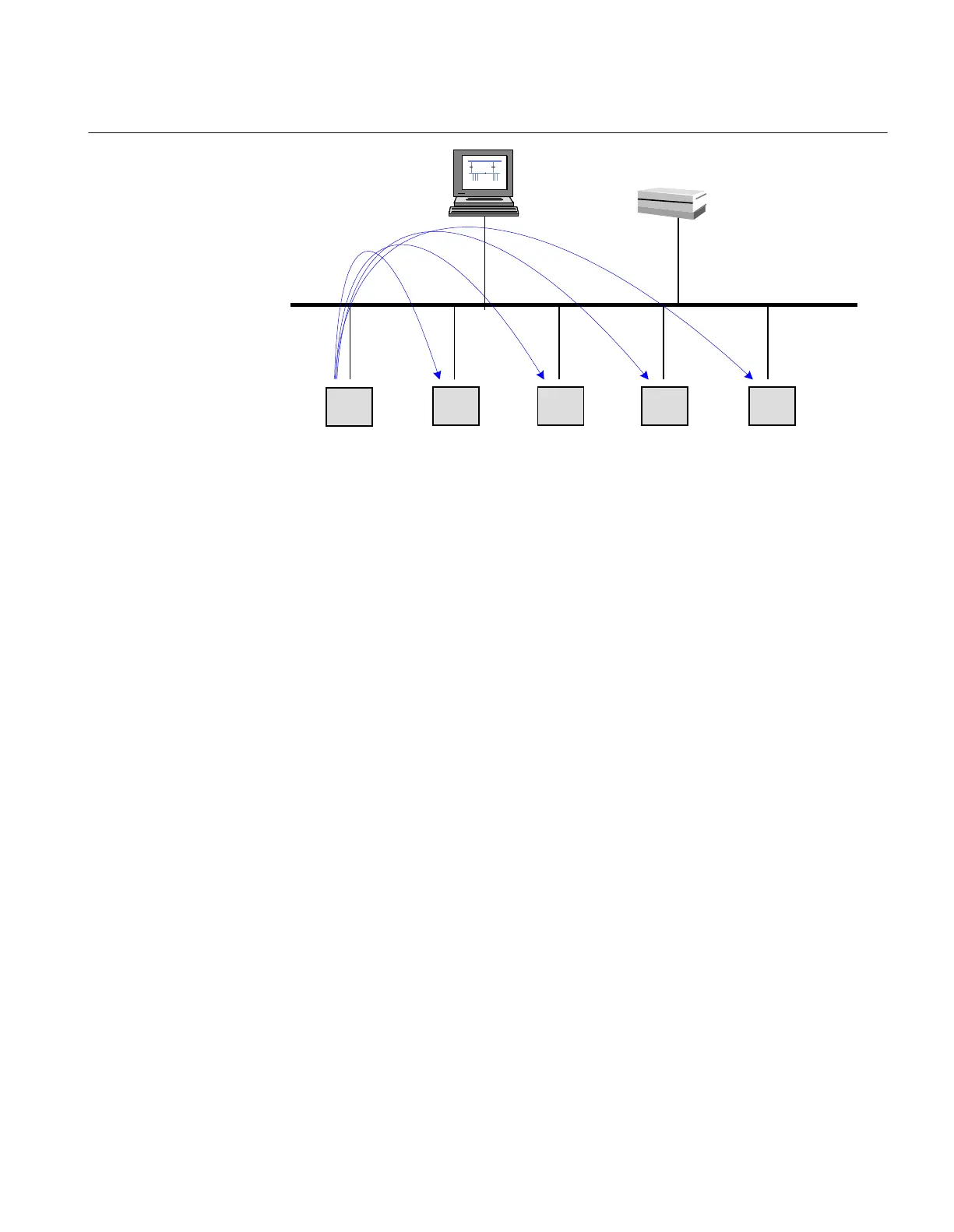

Figure 323: Example of a broadcasted GOOSE message
20.2.2 Setting guidelines
SEMOD55317-5 v7
There are two settings related to the IEC 61850–8–1 protocol:
Operation: User can set IEC 61850 communication to Enabled or Disabled.
GOOSEPortEd1: Selection of the Ethernet link where GOOSE traffic shall be sent and
received. This is only valid for Edition 1 and can be ignored if Edition 2 is used. For
Edition 2, the Ethernet link selection is done with the Ethernet Configuration Tool
(ECT) in PCM600.
20.2.3 Horizontal communication via GOOSE
20.2.3.1 Sending data
GUID-9888ECAD-8221-4B31-A443-EB1E3A9022C4 v1
In addition to the data object and data attributes of the logical nodes, it is possible to
send the outputs of the function blocks using the generic communication blocks. The
outputs of this function can be set in a dataset and be sent in a GOOSE Control Block
to other subscriber IEDs. There are different function blocks for different type of
sending data.
Generic communication function for Single Point indication SPGAPC,
SP16GAPC
SEMOD55999-1 v4
1MRK 502 071-UUS A Section 20
Station communication
Generator protection REG670 2.2 ANSI and Injection equipment REX060, REX061, REX062 745
Application manual
