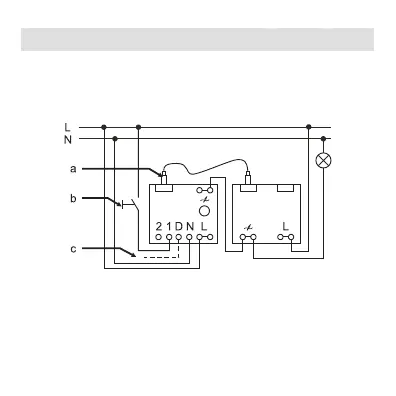

Fig. 1 GER 3
Pos: 6 /7x7/Inhalt/6583 / 6584/6583-500 / 6584- 500_ger @ 0\mod_117689241 7640_1.doc @ 10299
1 Fig. 1
Leistungserweiterung der Busch-Universal-Zentraldimmer
6583-xxx, STD-500U mit Universal-Leistungsbaustein
6584-xxx,STD-420 Tasterbetrieb.
GER
6583-xxx
(STD-500U)
6584-xxx
(STD-420E)
a Datenleitung RJ12 (25 cm)
b Nebenstelle, Taster z.B. 2020 US
c Steuerbaustein 6597-xxx, STD-SBS (weitere Typen
s. S. 5)
