Abra AK-30 - Page 4

3
10. Takethetwoaudioinputwiresandtwisttheblackgroundleadstogether.
 Solderthegreenandyellowwirestothetwoinside3.5mmstereoconnectorpinsrespecvely.
 Soldertheblackwirestotheoutsidegroundconnecon.
 (SeeFig.4)
11. Connectthe3.5mmtoanaudiosource.
 ConnecttheUSBconnectortoacomputerportorUSBadapterandplugitintothe2.1mmDCpowerconnector
 justwiredtopowerup.
 Setthe50KRP1potenometertofullclockwiseposionformaximumvolume.
 Withpoweronandthespeakersplaying,adjustthe10KRP2potenometersothattheredtopmostLEDVU
 indicatorjustcomesonatmaximumvolume.
12. Runthepowerandaudioinputwiresthroughthecutoutontherearpanelandinstallthe
 rearpanelusingtheremainingM2screwsandnuts.
 (SeeFig.5)
13. Enjoythesound.

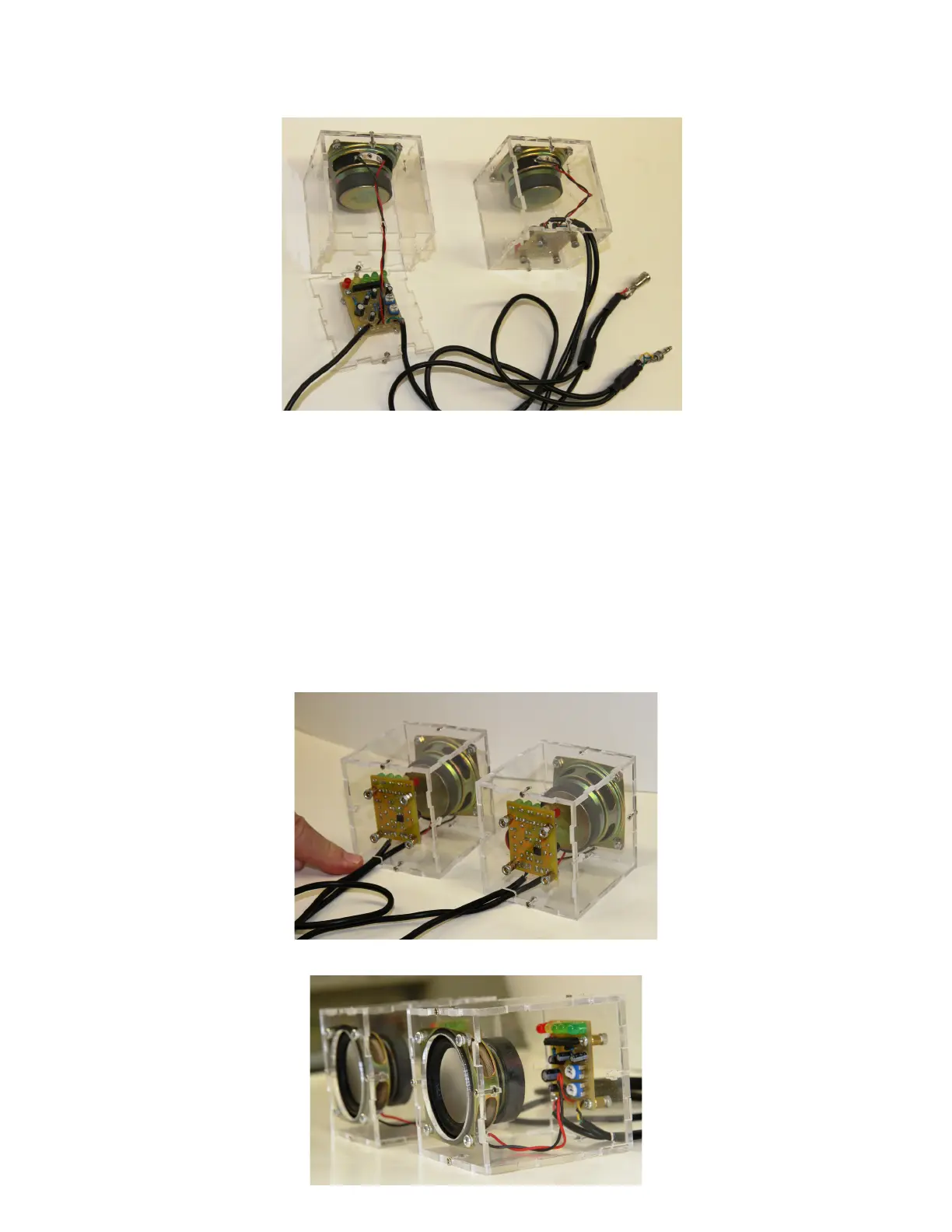

Fig.4
Fig.5
