ABSTRACT LUD48-D - Driver Connections and Pinouts; LUD48-D Connection Details; LUD48-4;LUD192-D Connection Details

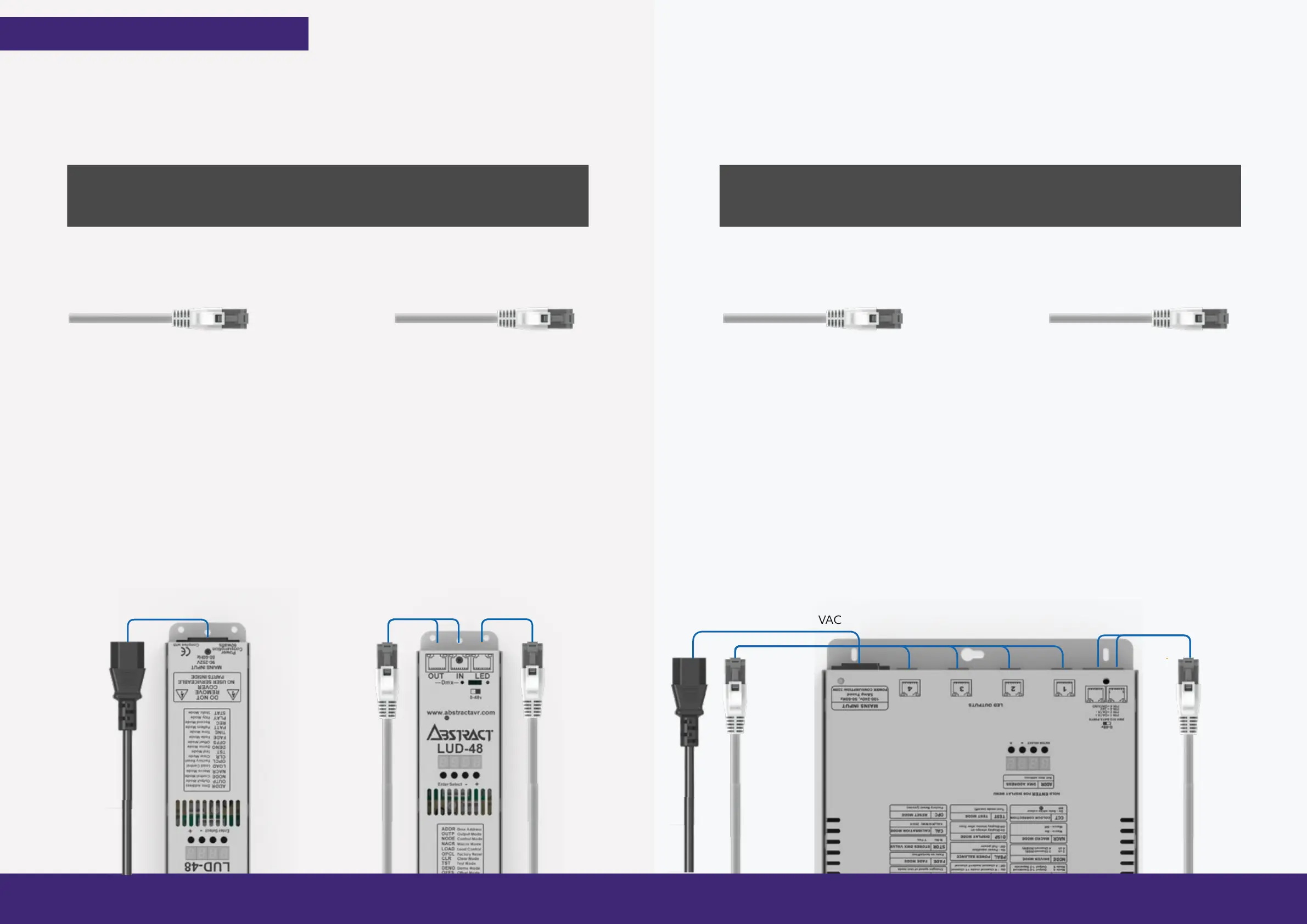

DRIVER CONECTIONS
RJ45 (DMX)
Connect in/out
for continuous
data if more
drivers are
required.
Mains IEC 100-240VAC
RJ45 (LED)
Connect to
desired LED
unit.
RJ45 (DMX)
Connect in/out
for continuous
data if more
drivers are
required.
Mains IEC
90-252VAC
RJ45 (LED)
Connect to
desired LED
unit.
LUD48-4 / LUD192-D
LUD48-D
Pin 1: Red LED +
Pin 2: Green LED +
Pin 3: Blue LED +
Pin 4: White LED +
Pin 5: Red LED -
Pin 6: Green LED -
Pin 7: Blue LED -
Pin 8: White LED -
Pin 1: Data +
Pin 2: Data -
Pin 3: Ground
Pin 4: 48V
Pin 5: 48V
Pin 6: 48V
Pin 7: Ground
Pin 8: Ground
RJ45 (LED) RJ45 (DMX)
Pin 1: Red LED +
Pin 2: Green LED +
Pin 3: Blue LED +
Pin 4: White LED +
Pin 5: Red LED -
Pin 6: Green LED -
Pin 7: Blue LED -
Pin 8: White LED -
Pin 1: Data +
Pin 2: Data -
Pin 3: Ground
Pin 4: 48V
Pin 5: 48V
Pin 6: 48V
Pin 7: Ground
Pin 8: Ground
RJ45 (LED) RJ45 (DMX)
(switchable) (switchable)
sales@abstract.co.uk
www.abstract.co.uk
Open Mon - Fri 8am - 5pm
T: +44 (0)116 278 8078
WARNING: Although this unit uses similar connectors to a computer net-
work, it is not compatible. Network equipment may be damaged if you
connect this unit to a computer network.
WARNING: Although this unit uses similar connectors to a computer net-
work, it is not compatible. Network equipment may be damaged if you
connect this unit to a computer network.
