- 25 -

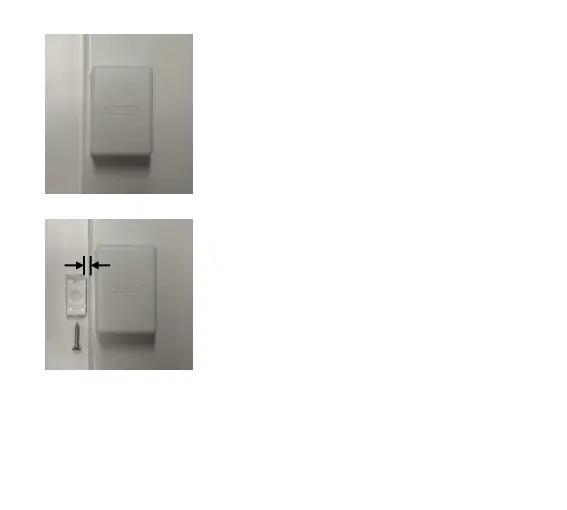

Attach dust cover
Attach the dust cover (so that the ABUS logo is legible)
and press this into place.
Fit magnet bracket
If the rabbet depth is no more than 19 mm, the
magnet bracket can be fitted without the 7 mm base.
Side-on distance between the magnet bracket and
window leaf max. 3 mm
max. 3 mm
