Functional principle and features
18 | EN
 Secvest FUAA50000, Secvest Touch
FUAA50500, Secvest FUAA10000, FU8000,
FU5000
 Repeater module FUMO50010
 Universal module UVM FUMO50020
 Wireless extensions Terxon MX AZ4120
and LX AZ4220

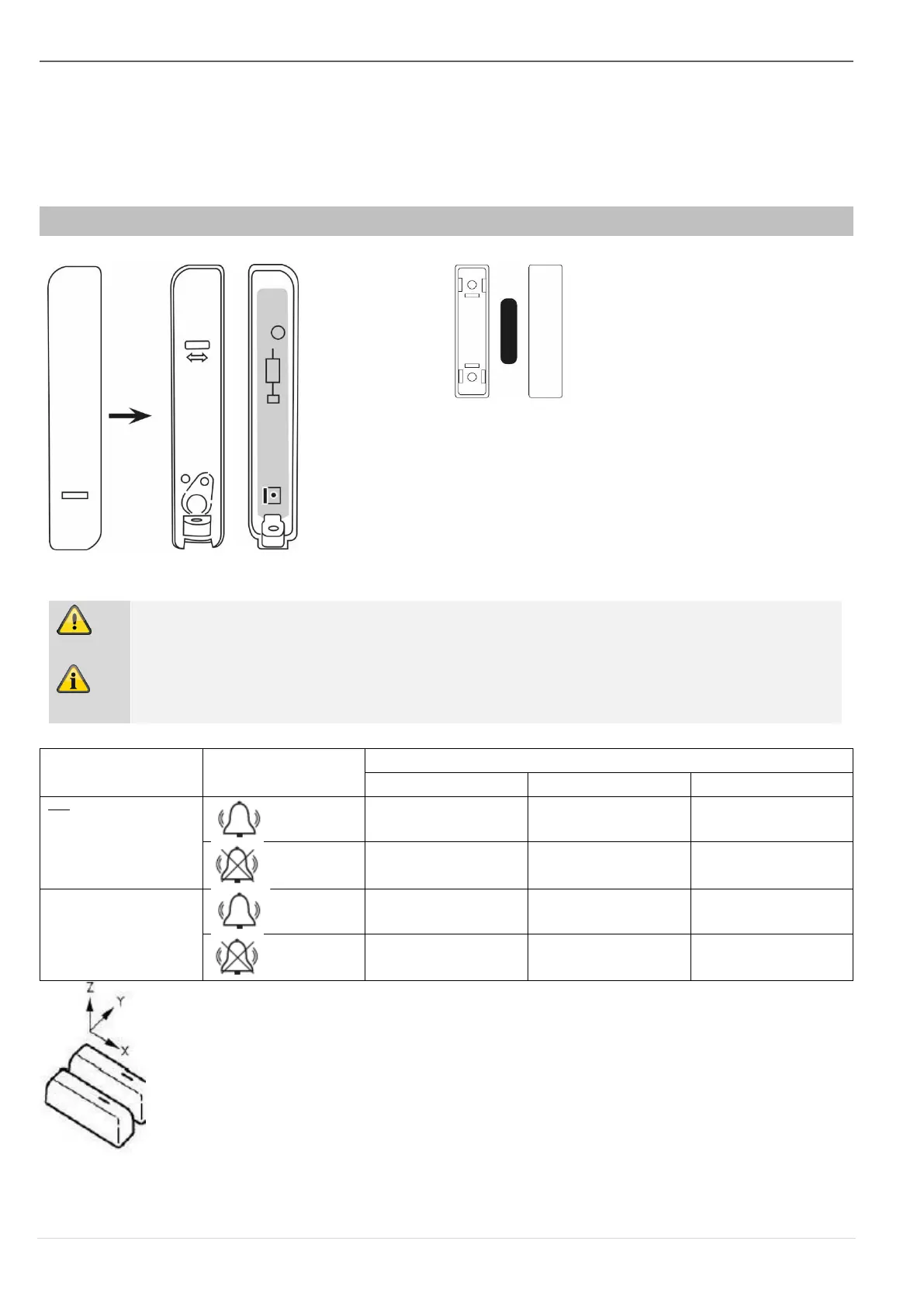

Device description
Sensor
Magnet:
Approximation and separation distances on ferromagnetic and non-ferromagnetic mounting sur-
faces due to EN 50131-2-6, chapter 5.2 c)
Danger
Note
This table shows the relevant distances required between the sensor and the mag-
net for arming/disarming the alarm.
Only the movement within the specified axis is accepted, where sensor and magnet
are optimally positioned on the other two axes.
Interface
Status
Distance (mm)
X
Y
Z
Fe
22
14
32
17
11
26
Fe
15
14
19
11
10
10
