Hardware and physical integration guideline A1 PCR sensors
Page 13 of 30
2024-02-07 © 2024 by Acconeer – All rights reserved

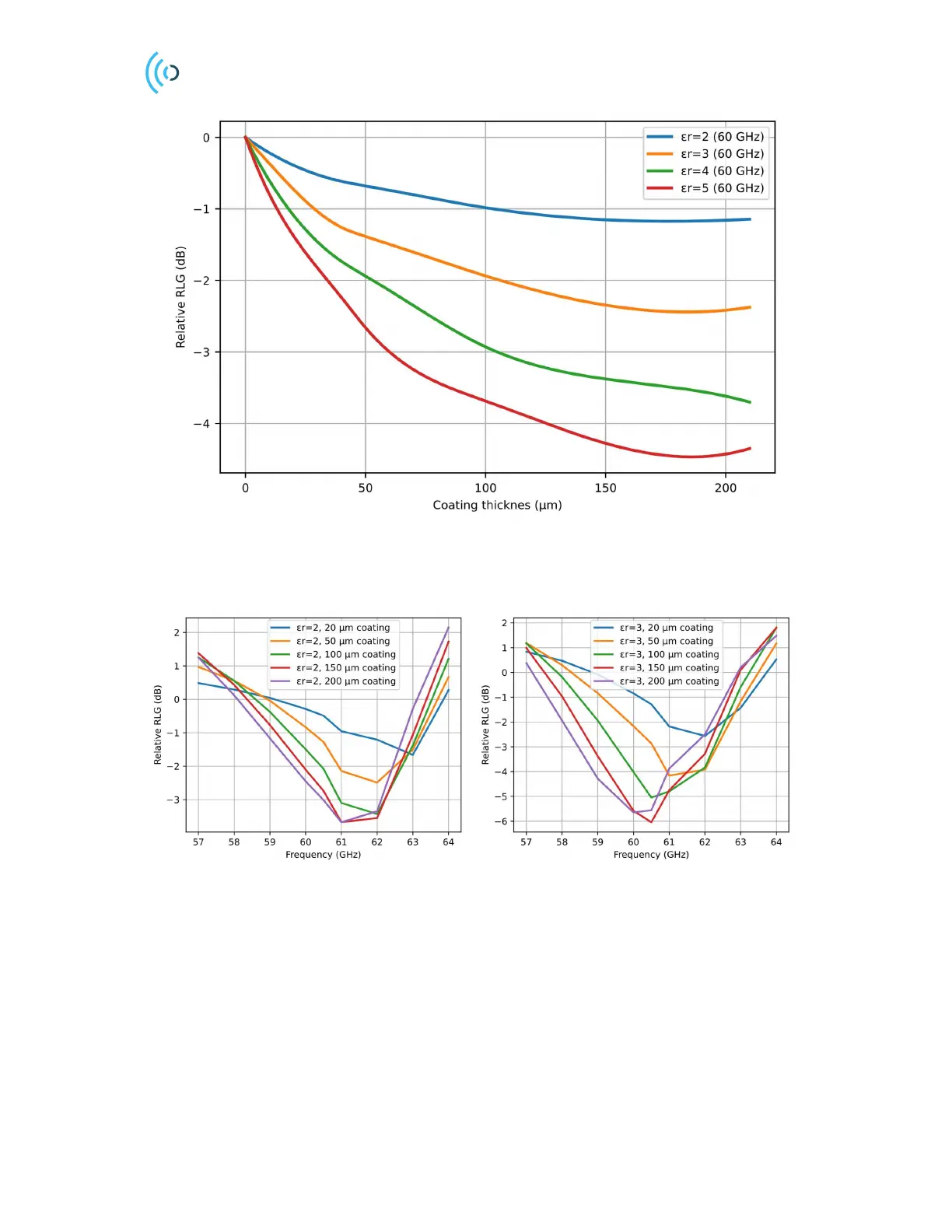

Figure 9. Simulated impact of lossless dielectric conformal coating on radar loop gain (RLG) at 60 GHz.
Figure 10. Simulated impact of conformal coating with εr =2 and εr =3 for different thicknesses.
3.5 Sensor underfill
Underfills can be used to fill the gap between the sensor package and PCB. The sensor underfill
material should be chosen to have as low dielectric constant and loss tangent as possible. Dielectric
constant determines the reflectivity of the medium and loss tangent indicates the dissipation effect of
the material and both are frequency dependent.
