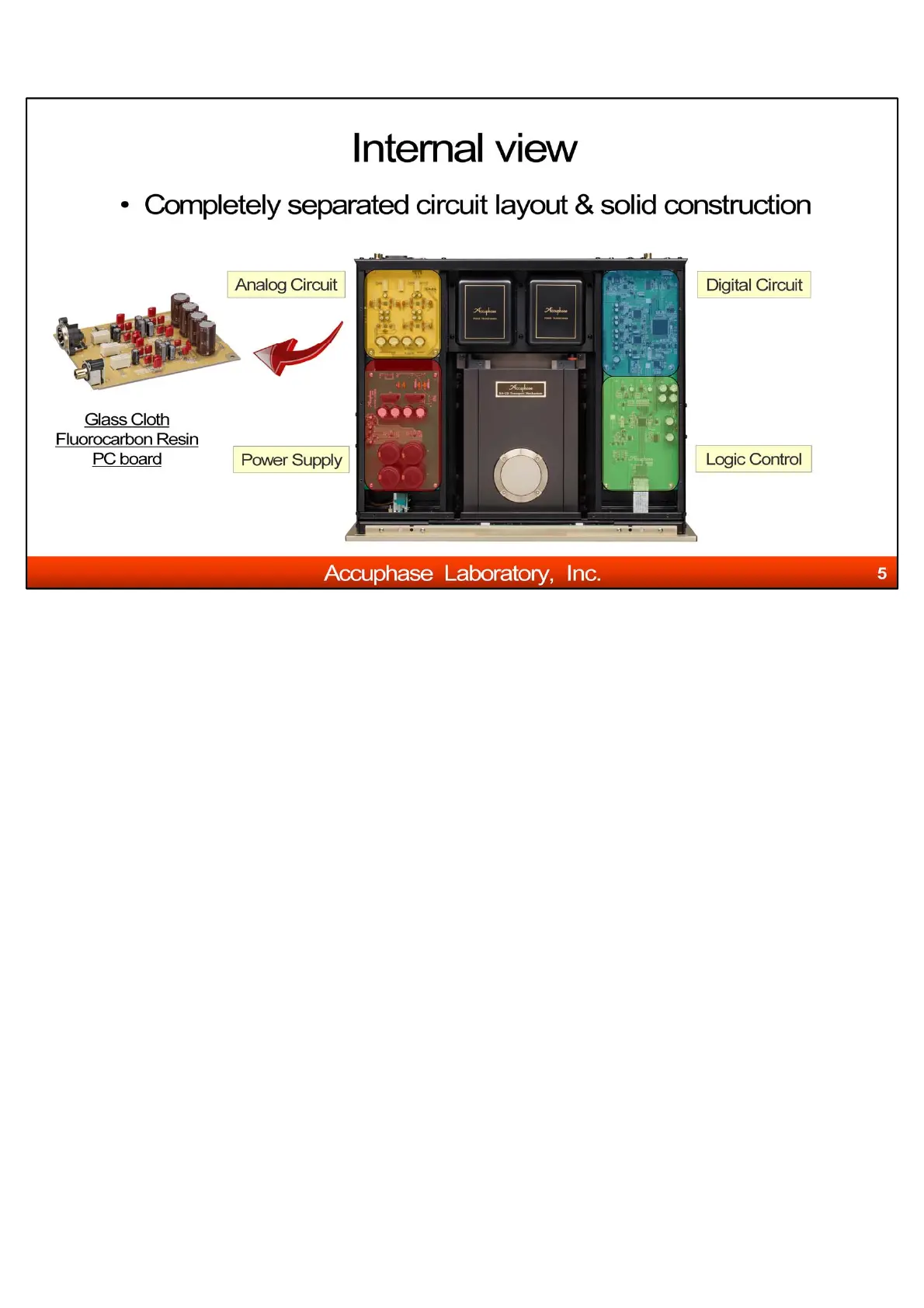

DP-750 applies the systematical layout. Each circuit block
is logically placed to make the signal path short as
possible.
The digital circuit with DAC chip is on the right side, and
analog circuit equipped with glass cloth fluorocarbon resin
PC board is on the left side at the back panel side.
Logic control board is on the right side of SA-CD drive
mechanism, and on the left side, reinforced power supply
is located.
