The Mini-Pack Nameplate
And Model Number
The Mini-Pack Nameplate

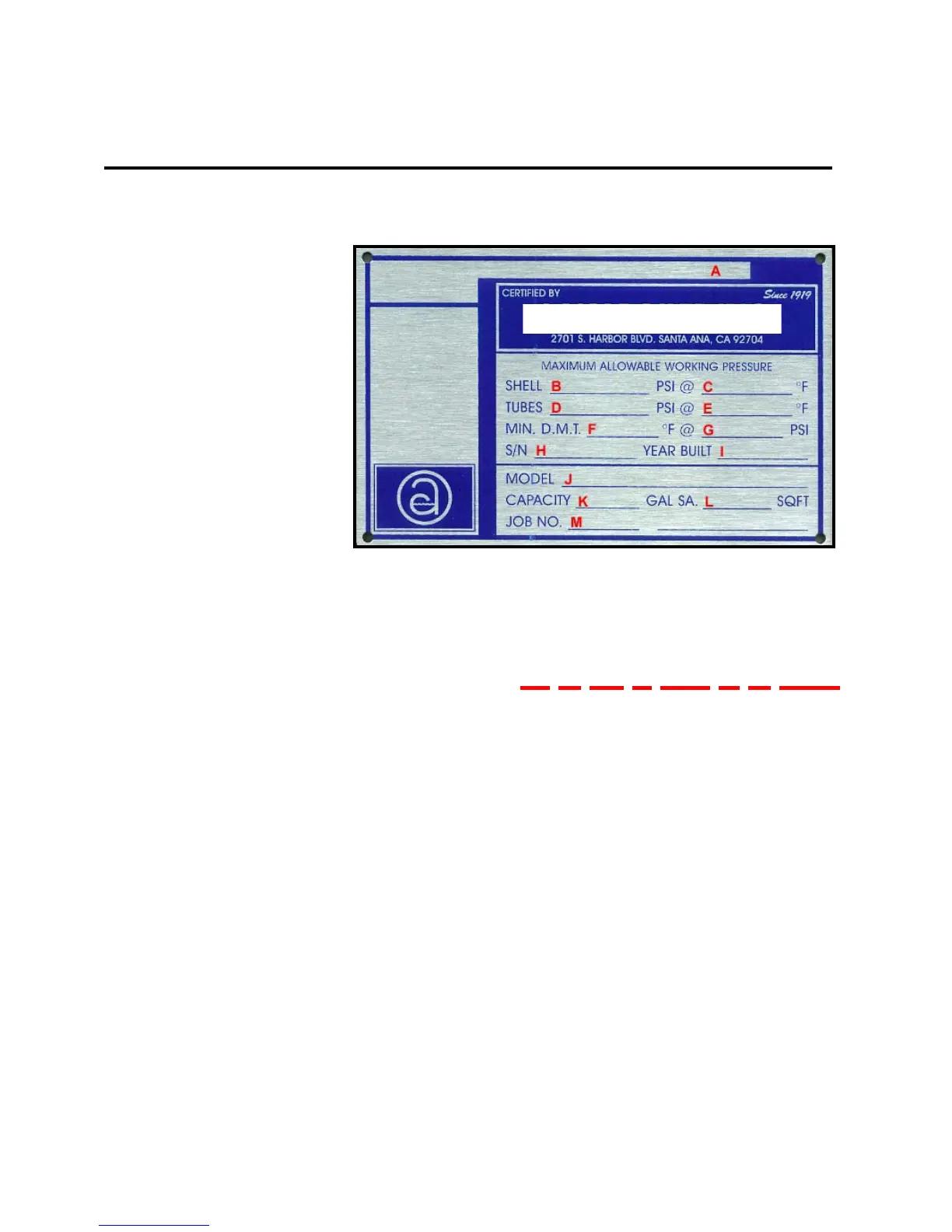

The following illustration is an accurate depiction of the nameplate found on the mini-pack.
A. NB or serial number
B. Shell pressure
C. Shell temperature
D. Tube pressure
E. Tube temperature
F. Min. Atmospheric Pressure
G. Atmospheric temperature
H. Serial number
I. Year built
J. Model number
K. Capacity
L. Square feet
M. Job number
The Mini-Pack Model Number
SI H 08 L SW S A 1.25
SI = Model (SI = Semi-Instantaneous)
V = Type (H = Horizontal, V = Vertical)
08 = Shell diameter in inches
L = Blank (standard), L (Long), XL (Extra long) bundle length
SW = Tube bundle type (SW = Single wall, DW = Double wall)
S = Heating medium (S = Steam, W = Water)
A = Control valve (A = Air Operated, P = Pilot operated, E = Electric)
1.25 = Valve size
