Ace Pump Corporation Memphis, TN 38113 www.AcePumps.com Phone: 901-948-8514
ACE Form # RK-BAC-75-M INST
Revised 12/16

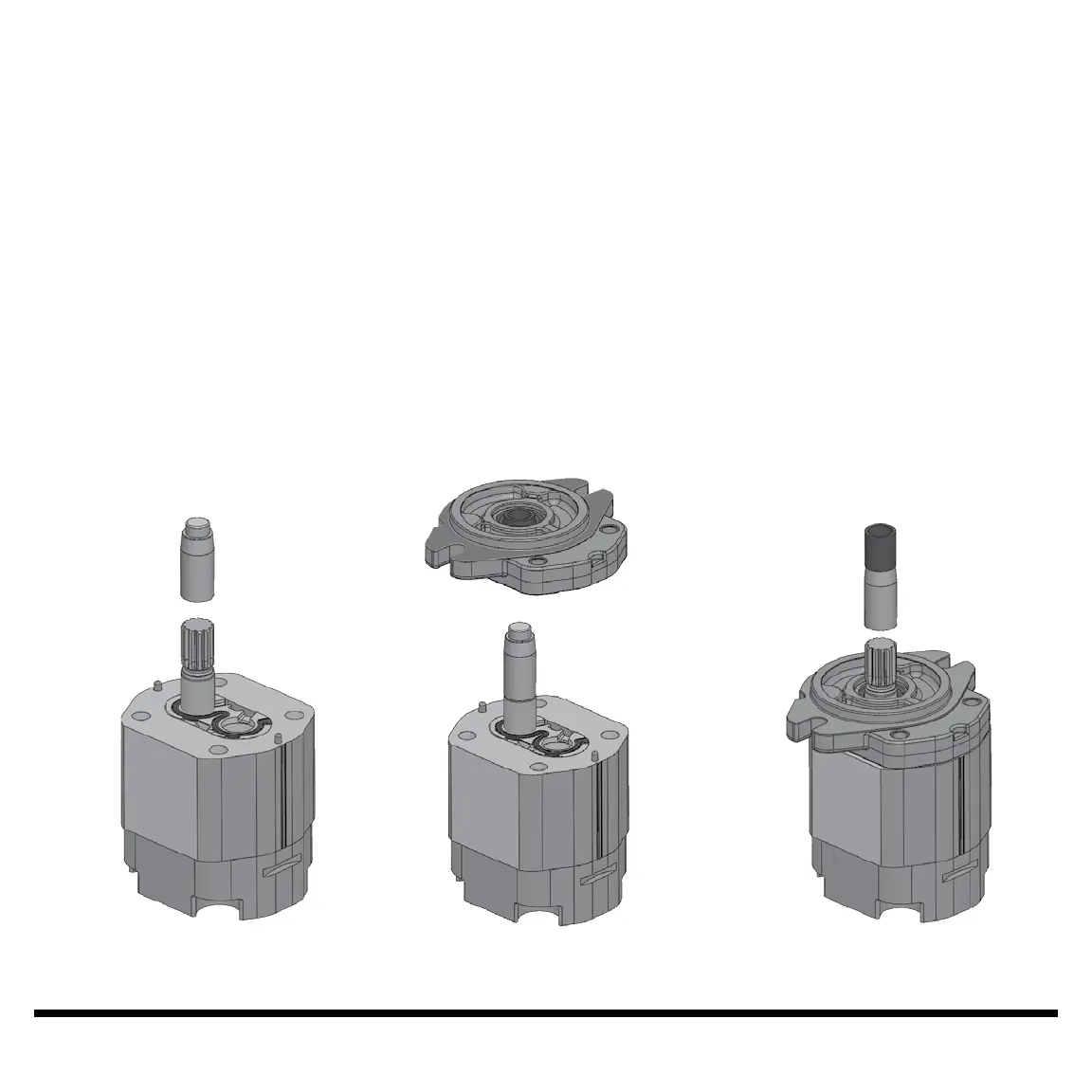

Step 10 Step 11Step 8
↑
↑
↓
↓
ASSEMBLY:
8. Place seal installation tool over splined shaft end. Lubricate the tool and seal lips with clean oil.
9. Lightly grease housing seal O-ring and place into groove on rear of new ange.
10. Carefully place new ange/seal assembly over installation tool and press down slowly to body. The tool will
push the paper tube out.
Note: Take care to hold the ange level and push evenly on both sides of the ange.
11. Discard seal installation tool and paper tube.
12. Reinstall motor assembly bolts and tighten to 33 ft-lb (45 N-m) torque. Turn the shaft by hand to ensure
the motor turns freely.
13. Reinstall external motor ttings.
