Acer AL2216W Quick Start Guide

Installation guide Note: Read the [Important] section carefully before starting the installation.

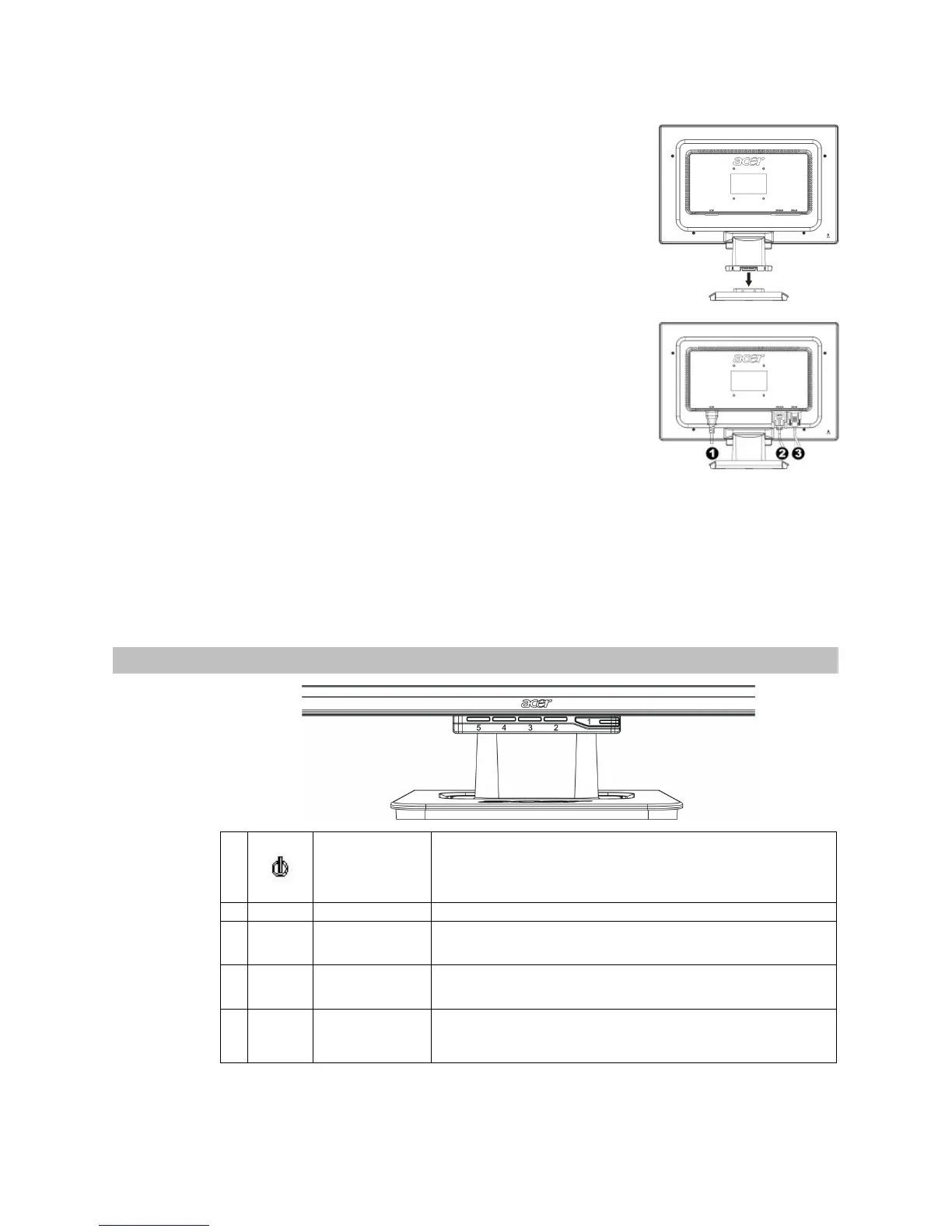

Complete the following steps for quick installation (see the figure):
Assemble the seat of the display
 Take out the seat out of the box and place it on a flat
table.
 Take your LCD display out of the carton and assemble
the display and seat along the rail. You will hear a
click sound when the display and seat are engaged
correctly.
Quick installation
Connection to PC
 Make sure that the power supply of your PC is turned
off and the power plug is removed.
 Connect and fasten both ends of the signal cable to
your PC host and LCD display, respectively.
 Connect the attached power cable to your LCD
display.
 Plug the power cable to the receptacle.
 Use the cable tie to bind up the power cord and the
D-sub signal cable / DVI-D cable.
 Turn on the power supplies of your PC and LCD
display.
X Power cable
Y DVI signal cable
(optional)
Z D-Sub signal cable
Adjustment of display
Key definition
1
Power source
Power On/Off
Green indication: Power is on and normal.
Orange indication: Sleep status in the energy-saving mode.
Colorless indication: Power off.
2 Menu OSD Menu Press this button to enter OSD. Press it again to exit OSD.
3 > Plus
Press this button for selection or adjustment when OSD is
started.
4 < Minus
Press this button and click < and > to adjust volume when OSD
is not started.
5 Auto
Automatic
adjustment
Press this button to exit the manual when OSD is started.
Press this button for the display to optimize the position, phase
and clock pulse automatically when OSD is not started.

Acer AL2216W Specifications

General

Pixel pitch	0.282 mm
Aspect ratio	16:10
Display diagonal	22 \
Display resolution	1680 x 1050 pixels
Vertical scan range	56 - 76 Hz
Horizontal scan range	30 - 82 kHz
Viewable size, vertical	296 mm
Viewing angle, vertical	160 °
Contrast ratio (typical)	700:1
Display number of colors	16.78 million colors
Viewable size, horizontal	473 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	300 cd/m²
Plug and Play	Yes
Tilt angle range	20 °
Panel mounting interface	100 x 100 mm
Power consumption (off)	1 W
Power consumption (standby)	2 W
Power consumption (typical)	55 W
Power requirements	AC 100 - 240 V, 50/60 Hz
Certification	TCO'03
Market positioning	-

Weight and Dimensions

Depth (with stand)	198 mm
Width (with stand)	514 mm
Height (with stand)	406 mm
Weight (without stand)	4800 g
