3 System upgrade
52

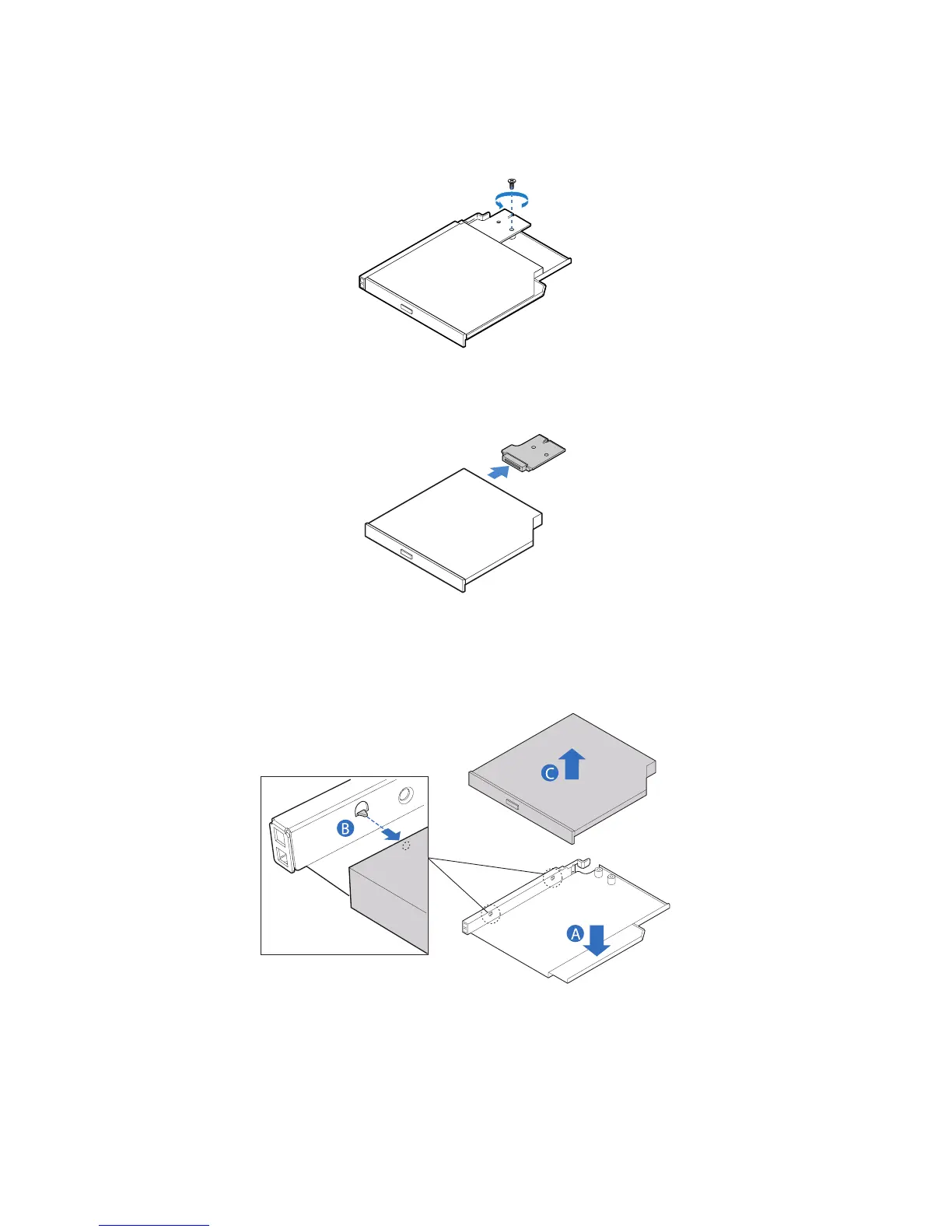

4 Remove the screw that secures the interposer board to the optical
drive tray.
5 Pull the interposer board to remove it, then store the board in a
protective packaging.
6 Press downward on the side of the tray (A) and disengage the
drive from the two metal tabs on the opposite side of the tray (B).
7 Lift the optical drive out of the tray (C).
8 Store the optical drive tray for future use.
B
A
