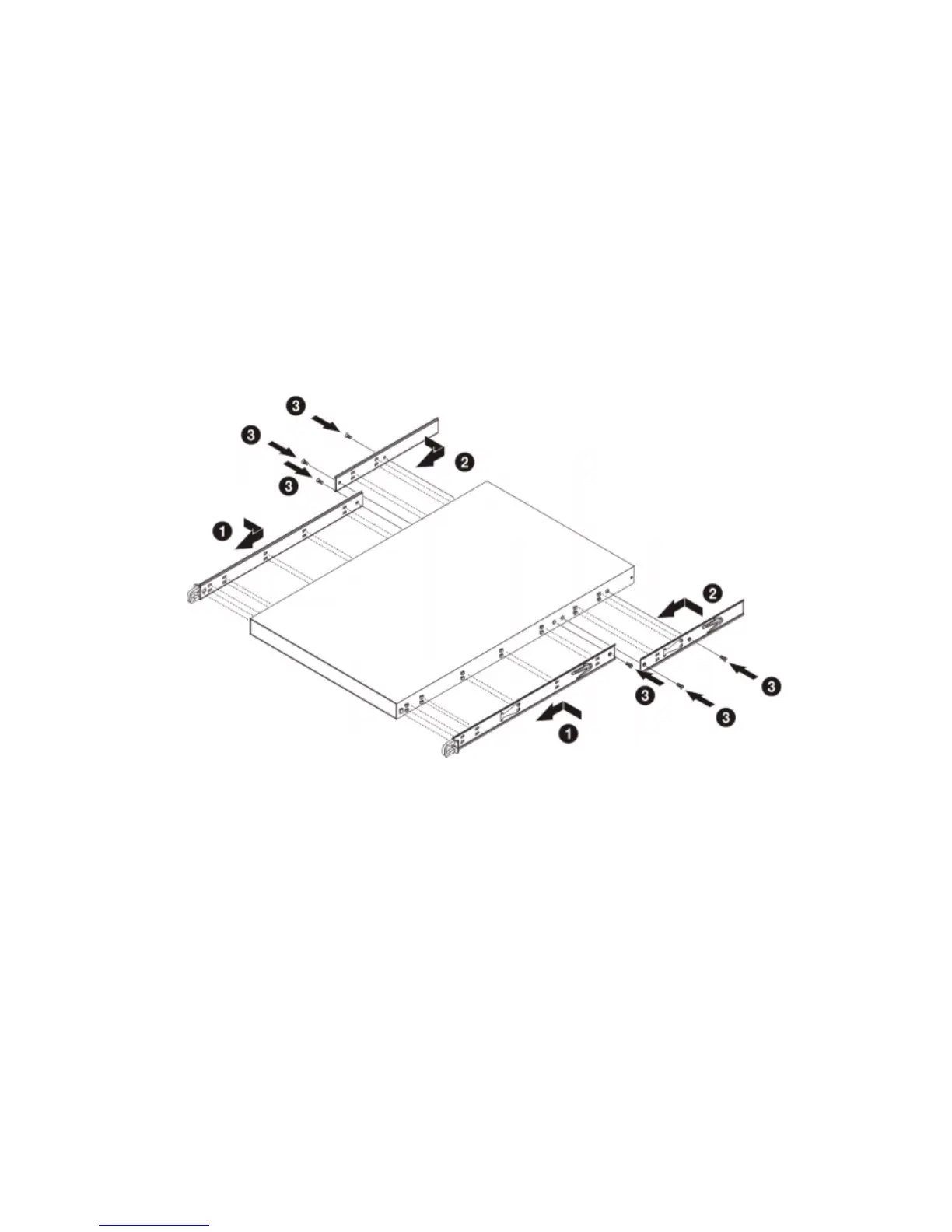

3 Attach the front inner rails to both sides of the server.
a Align the holes on the left and right front inner rails to the hooks on
the left and right sides of the server (1).
b Slide the rails to the front until the rails lock into place with an
audible click.
4 Attach the rear inner rails to both sides of the server.
a Align the holes on the left and right rear inner rails to the hooks on
the left and right sides of the server (2).
b Slide the rails to the front until the rails lock into place with an
audible click.
c Secure the inner rails to the server with the six screws (3).
