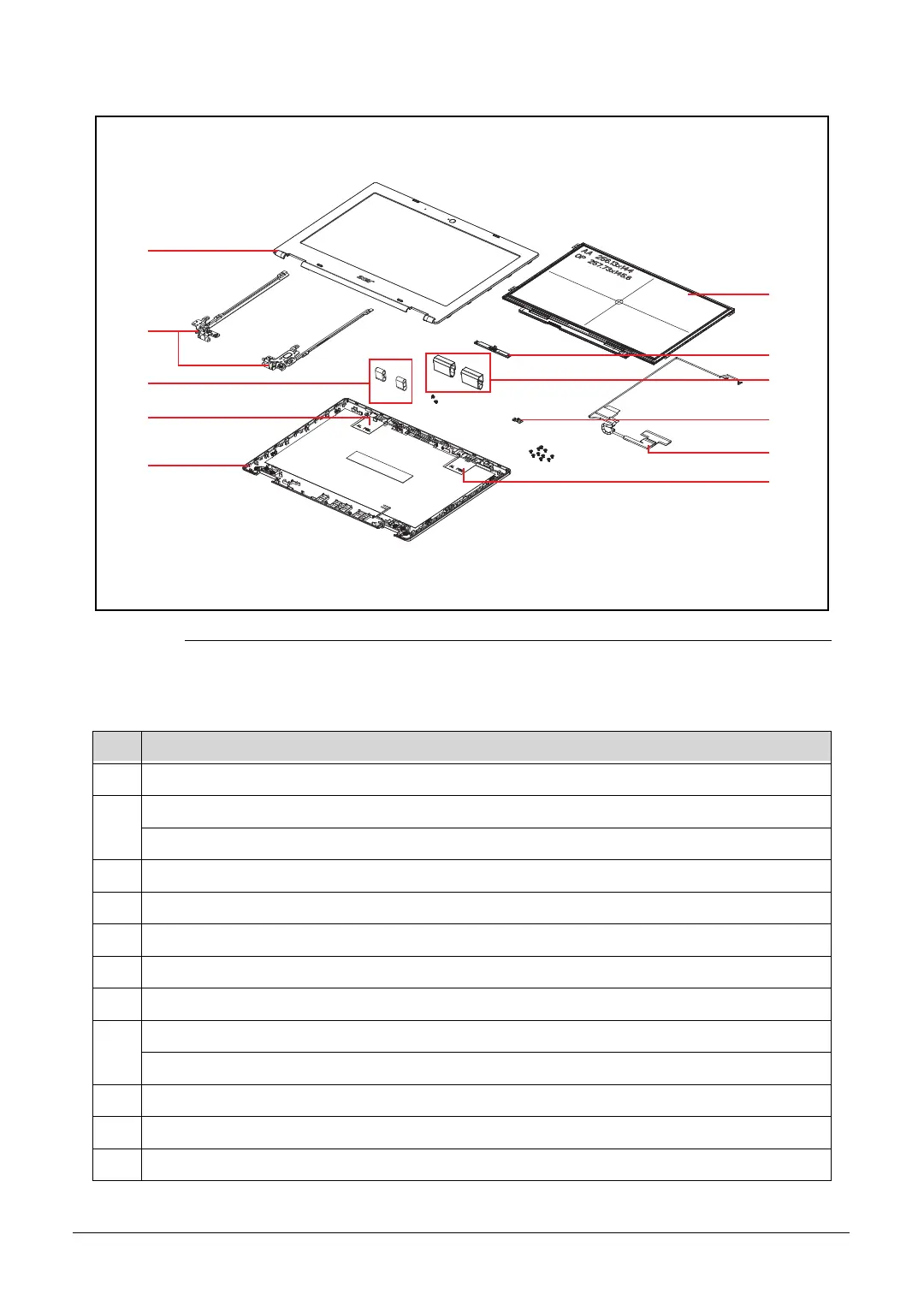

Figure 1-54. LCD Assembly Exploded Diagram (ZHU/ZHUA Models)
Table 1-2. LCD Assembly Exploded Diagram
No. Description
1 LCD Bezel
2 LCD Hinge R
LCD Hinge L
3 Hinge rubbers
4 WLAN Antenna (AUX)
5 LCD Cover
6 LCD Panel
7 Camera Module
8 Hinge Cap (right)
Hinge Cap (left)
9 Microphone Board
10 eDP Cable
11 WLAN Antenna (MAIN)
1
9
7
6
10
11
8
2
5
4
3
